EXTENDED RANGE ( To buy via a local branch allow 2 days for Transfer )
PSB306-B
MCB terminal capacity,
25 mm on all PSB mcb's

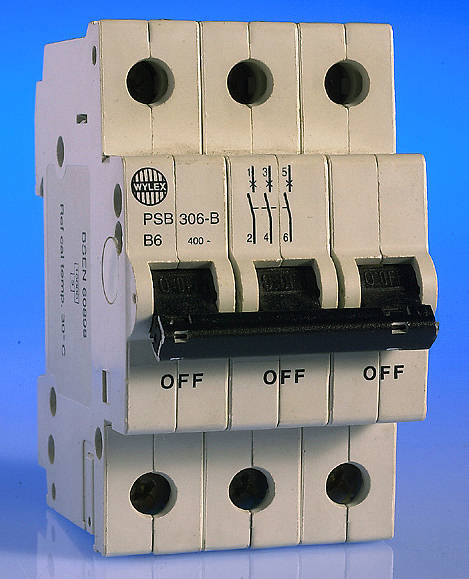

Wylex Three Phase MCB ( Type B ) - 10kA
Rated 6 Amps
Three Phase Distribution Board use
Wylex MCB's detect overcurrents due to both overload and fault currents.
The MCB will operate and interrupt the supply to prevent damage to the installation.
Wylex Commercial MCBs have a short circuit breaking capacity of 10000A (M10).
The current carrying capacity of the cable should always exceed the current rating of the MCB to prevent damage.
The operating dolly may be locked in either the ON or OFF position without affecting the ability of the trip mechanism to operate.
When in the off position, a contact gap of 4 mm is achieved. Wylex's MCBs may therefore be used as triple pole isolating switches where appropriate.
Technical:
MCB Selection
and
Data Sheets
Order Code
Description
Price (ex vat)
Qty
WY PSB306B
6 Amp TP Wylex MCB - 10kA (
Extended Range*
)
EA
17.65
