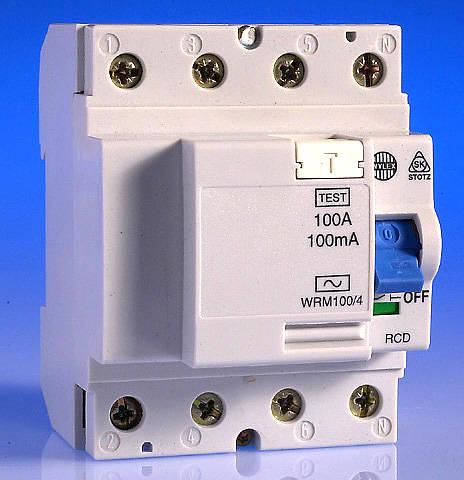

100 Amp 100mA 4 Pole RCD (Type A) - Wylex
Product Code: WY WRDM100/4
5013601018386
WRDM100/4
Loading …
35 mm
within an Enclosure
Wylex
100 Amp 100mA 4 Pole RCD (Type A)
100 Amp 100mA 4 Pole RCD (Type A)
- Wylex 4 pole RCDs may be used to provide earth fault protection on 3 phase, 3 wire systems, as the current balance mechanism does not require a neutral to be connected in order to operate effectively.
- Wylex RCDs must never be used as the sole method of direct contact protection, but are invaluable in providing supplementary protection in high risk environments where damage may occur.
- However Wylex 4 pole RCDs do, ideally, require a neutral conductor to be provided on the supply side of the RCD in order to ensure that the test circuit operates satisfactorily.
- Where connection of a neutral supply is not possible, then an alternative method of ensuring that the test button is operational is to fit a suitably rated resistor between the load side neutral pole and a phase pole not associated with the normal test button operation.
35 mm
within an Enclosure
Technical:RCD Selection and Info Data Sheets |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
WY WRDM100/4
100 Amp 100mA 4 Pole RCD (Type A) - Wylex |
