PLEASE NOTE: THIS IS A GUIDE TO DOMESTIC
SITUATIONS.
FOR NON-DOMESTIC SITUATIONS OR IF YOU ARE IN DOUBT,
WE RECOMMEND THAT YOU CONSULT A QUALIFIED ELECTRICIAN.
(IEE WIRING REGULATIONS 16th EDITION (Amd. 3) EFFECTIVE
1.1.2002).
|

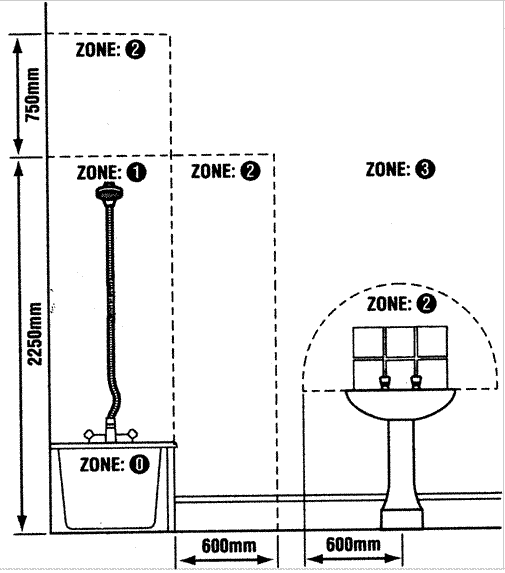

| 0 |
ALL LIGHT FITTINGS IN ZONE 0 MUST BE WATERTIGHT AND
BE 12 VOLTS OR LESS. (IP67 OR IPX7). |
| 1 |
ALL LIGHT FITTINGS IN ZONE 1 MUST BE SPLASH PROOF (IP44
OR IPX4).
PLEASE NOTE: MAINS VOLTAGE FITTINGS IN THIS ZONE MUST
BE WIRED ON A SEPARATE CIRCUIT & PROTECTED BY A 30mA
RESIDUAL CURRENT DEVICE (RCD). |
| 2 |
ALL LIGHT FITTINGS IN ZONE 2 MUST BE SPLASHPROOF (IP44
OR IPX4). |
| 3 |
ALL LIGHT FITTINGS IN ZONE 3 HAVE NO SPECIAL REQUIREMENTS. |
