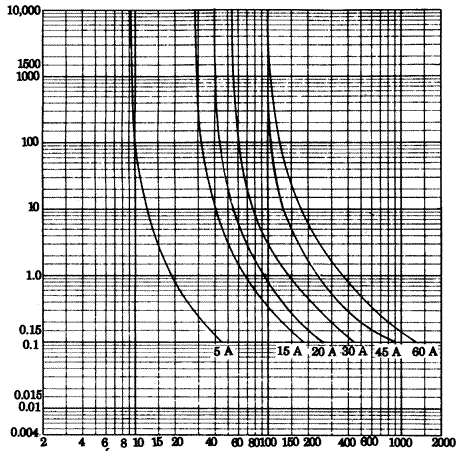

Fig 3.13 Time/current characteristics of semi-enclosed fuses to BS 3036

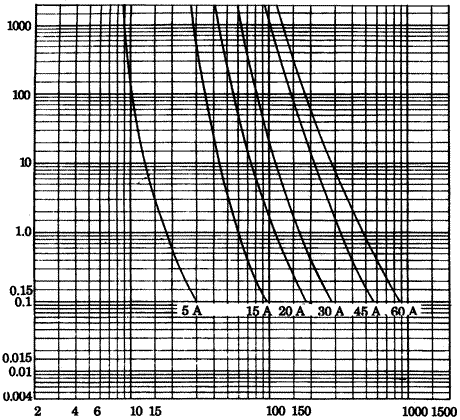

Fig 3.14 Time/current characteristics of cartridge fuses to BS 1361

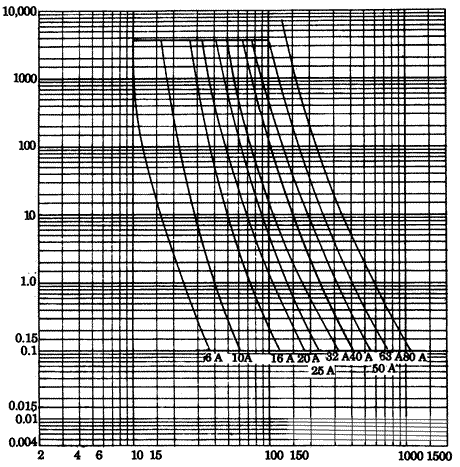

Fig 3.15 Time/current characteristics of cartridge fuses to BS 88 Part 2

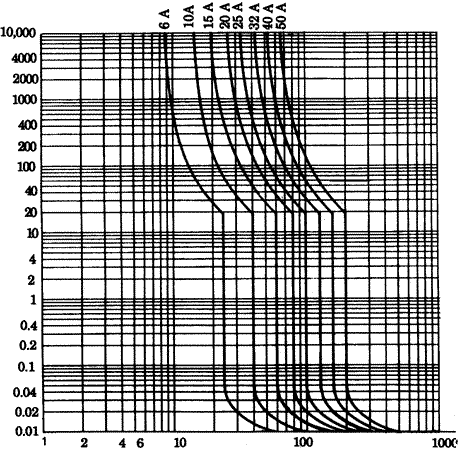

Fig 3.16 Time/current characteristics for some miniature circuit breakers Type 1

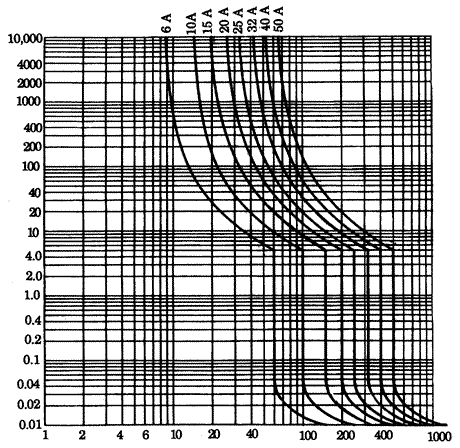

Fig 3.17 Time/current characteristics for some miniature circuit breakers Type 3.

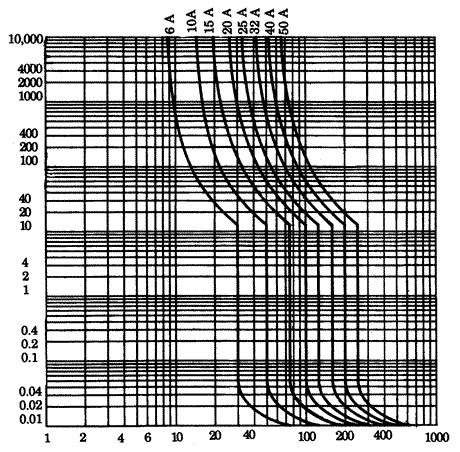

Fig 3.18 Time/current characteristics for some miniature circuit breakers Type B

Fig 3.19 Time/current characteristics for some miniature circuit breakers Type D
