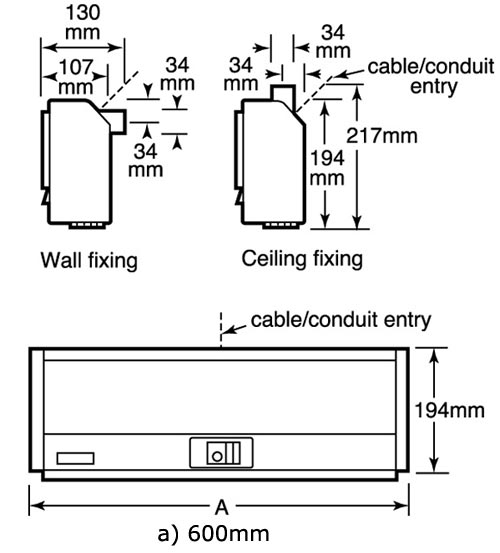

AC3 ( Click diagram to enlarge ) AC3 Performance Outputs Available (watts) 1.5 Maximum Loading (kW) 3 Dimensions Height (mm) 194 Width (mm) 600 Depth (mm) 107 Weight (incl. bricks) (kg) 5.8 Controls INTEGRAL CONTROLS: Fan only, half heat or full heat OPTIONAL REMOTE CONTROL: AC0001 remote controller Thermal Cut Out 2 manual re-set cut outs Colour/Finish Willow White Cable Length No cable fitted Noise Level (dB) 59.5 Airflow Litres/sec 59

Key Features
Adjustable wall brackets for ceiling or wall mounting
Adjustable air flow direction
Integral controls for fan only, half/full heat
Optional remote control (AC0001)
Choice of heat settings and fan only operation for air circulation in summer



Optimum Mounting Height (m): 2.3

Length of Bracket (mm): 506

Wall Fixing Points (mm): 406
