AC45
AC45
Performance
Outputs Available (watts) 2.25
Maximum Loading (kW) 4.5
Dimensions
Height (mm) 194
Width (mm) 600
Depth (mm) 107
Weight (incl. bricks) (kg) 5.9
Controls
INTEGRAL CONTROLS: Fan only, half heat or full heat

OPTIONAL REMOTE CONTROL: AC0001 remote controller

Thermal Cut Out
2 manual re-set cut outs

Colour/Finish
Willow White

Cable Length
No cable fitted

Noise Level (dB)
64.5

Airflow Litres/sec
69
Product Description
The AC45 Warm Air Curtain has a loading of 4.5kW.

Key Features
Adjustable wall brackets for ceiling or wall mounting
Adjustable air flow direction
/integral controls for fan only, half/full heat
Optional remote control (AC0001)
Choice of heat settings and fan only operation for air circulation in summer

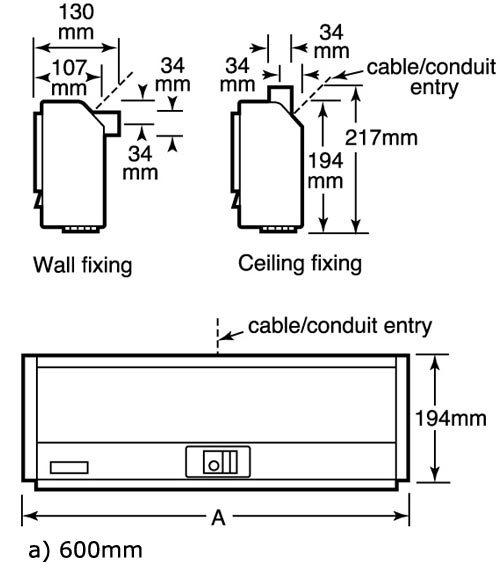

Optimum Mounting Height (m): 2.8

Length of Bracket (mm): 506

Wall Fixing Points (mm): 406
