Product Description
The BFH24T Base Unit Heater has a loading of 2.4kW. It is designed to fit neetly into the plinth of standard kitchen or bedroom units.

Key Features
Integral controls for ease of installation.
A variable thermostat allows selection of room temperature, and a neon indicator glows when the unit is switched on.
Fan only operation for cool air circulation.



Additional Information

If the overhang above the heater is greater than 750mm, then a distance of at least 100mm must be maintained between the overhang and the uppermost part of the heater


Standard Warranty
12 months


Supply Connection

2.5 metre 6-core colour coded cable is supplied for connecting the heater to the switch panel.


Assembly Information
Easily incorporated into plinths or kitchen/bathroom units



BFH24T

BFH24T
Performance
Maximum Loading (kW) 2.4

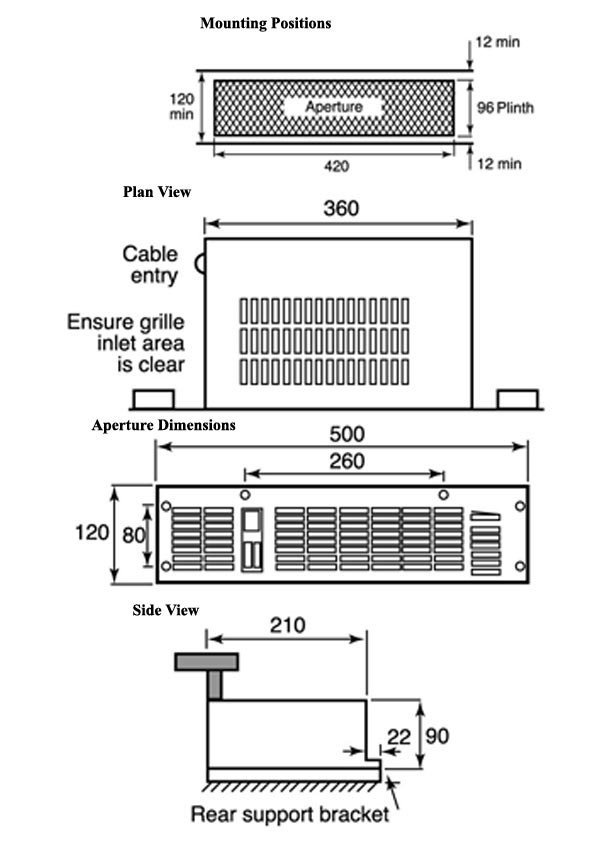

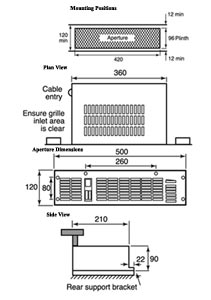

Dimensions
Height (mm) 120
Width (mm) 500
Depth (mm) 235
Packed Weight (kg) 3.9
Controls
FUNCTION CONTROL: Switch on heater fascia on/off and heat range settings.

THERMOSTAT: The heater incorporates a variable thermostat. The thermostat is marked *, 1-6, MAX, representing a temperature range of 5°C to 30°C.

Thermal Cut Out
Interrupt supply to reset type

Colour/Finish
White

Cable Length
2m 3 core cable

Element
Number of Elements: 2
Element 1 Specification:
Fully strung, helically wound 800W
Element 2 Specification:
Fully strung, helically wound 1600W
