( Click diagram to enlarge )
Maximum Loading (kW) 2
Height (mm) 216
Width (mm) 310
Depth (mm) 110
Packed Weight (kg) 1.7
THERMOSTAT: Adjustable thermostatic control on 2kw setting.

POWER CORD: On and Off visual indicator.

FUNCTION CONTROL: Rotary switch.

Thermal Cut Out
Thermal overload cut out and fusible link.

Warm White

Cable Length
No cable fitted

IP Rating
Product Description

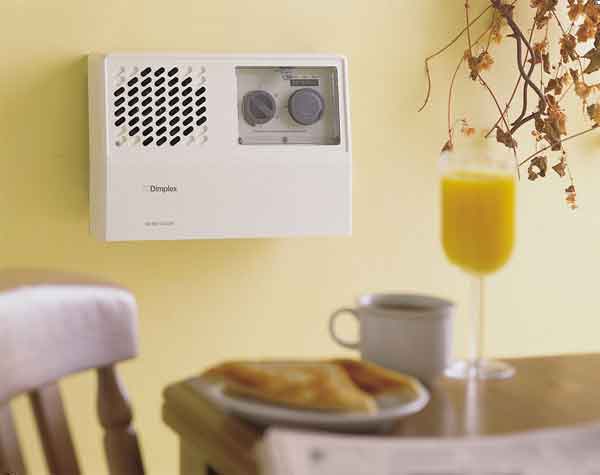

The FX20TI Wall Mounted Fan Heater has a lockable controls cover to protect from children.

Key Features
Designed for low level mounting
No pull cord
Adjustable thermostatic control on 2kW setting
Frost protection setting
24 hour programming electro-mechanical timer
Lockable controls cover

Construction Details

Double insulated plastic case. Drip-proof. IPX2 rated. Moulded in flame retardant self extinguishing grade ABS.

Assembly Information

Two upper keyhole slots are provided together with a third fixing hole to secure the heater to the wall.
