IRX500
IRX500
Performance
Maximum Loading (kW) 0.5

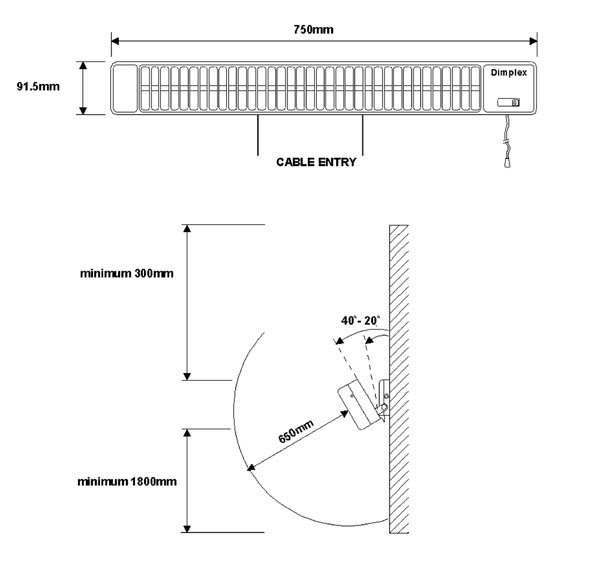

Dimensions
Height (mm) 91.5
Width (mm) 750
Depth (mm) 75
Packed Weight (kg) 2.3
Controls
PULL CORD: Switch on the electricity supply to the heater.
  • To switch the heater ON, pull and release the cord until the red indicator appears.
    • To switch OFF, pull the cord until the red indicator no longer appears.

ADJUSTABLE BEAM ANGLE: The beam angle is adjustable upon installation.

Colour/Finish
Silver

Cable Length
No cable fitted

IP Rating
IP23

Element
Number of Elements: 1
Product Description
The IRX500 Infra-Red Heater has a loading of 0.5kW.

Key Features
Designed to provide rapid beamed warmth.
All models have adjustable beam angle to direct heat where it is most needed
Drip proof protection (IP23 rated).



Additional Information
Supply cable is not provided. Provision is made for connection to fixed wiring only with a surface wiring or flexible cord entering through a bushed hole in the bottom or side of the base plate. A cable clamp is provided.


Standard Warranty
12 months
