PLX150 |
|
|
|
|
|
PLX150 |
Performance |
|
Maximum Loading (kW) |
1.5 |
Thermostat |
Gas filled type. Accurate
to ±0.5°C. Range 5-35°C. |
|
|

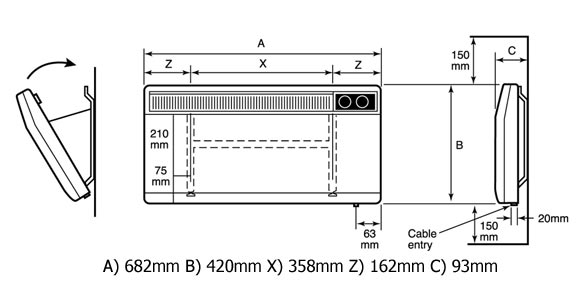

Dimensions |
|
Height (mm) |
420 |
Width (mm) |
682 |
Depth (mm) |
93 |
Packed Weight (kg) |
6.0 |
|
|
|
Controls |
ON/OFF SWITCH: Double pole
rocker switch controls electricity supply to heater.
A neon indicator illuminates when the switch is
set to ON.
|
HALF HEAT SWITCH: Double
pole rocker switch allowing the heater to be set
to full or half load
|
THERMOSTAT: Rotary control
marked * (frost) 1-6. Each mark represents approximately
5°C.
|
Thermal Cut Out |
Interrupt supply to reset
|
Direct Acting Heater |
Convector
|
|
|
Colour/Finish |
Main body: Willow White |
Grille: Birch Grey |
IP Rating |
IP24
|
Element |
Number of Elements: 2
|
Element 1 Specification: |
Finned, metal sheathed mineral type.
There are two elements fitted to each model on flexible
mountings to prevent expansion. |
|
|
Product Description
The PLX150 Panel Convector Heater has a loading 1.5kw..
Key Features
Convected heat for rapid warm up.
Suitable for domestic or commercial use.
High accuracy adjustable thermostat responds to very small changes
in room temperature to virtually eliminate temperature drift.
Frost protection setting.
Front air outlet grille for efficient heat circulation
Lockable dust cover protects controls.
Detachable hinged wall mounting frame for fast installation
and easy cleaning.
Additional Information
Do not place material or garments on the heater, or obstruct
the air circulation around the heater, for instance by curtains
or furniture, as this could create a fire risk.
Standard Warranty
12 months
Supply Connection
Length of supply cable fitted to allow connection from either
side. Suitable connection to the wiring of the premises and
double pole switching must be provided adjacent to the appliance
to comply with the IEE wiring regulations
Construction Details
The electrical installation must be carried out by a competent
electrician, and be in strict accordance with the current I.E.E
regulations for Electrical Equipment in Buildings.The heater
is fitted with a length of flexible cable type HO5VV-F size
3x10mm2 on models PLX075-200N, for connection to the fixed wiring
of the premises through a suitable connection box positioned
adjacent to the heater.
Assembly Information
Each heater has a detachable hinged wall mounting frame which
eases and reduces time taken for installation, and enables the
heater to be hinged forward for periodic cleaning. Heater secured
to mounting frames for safety and security.
If the heater is installed in a room
containing a bath or shower, it must be so installed that switches
and other controls cannot be touched by a person using the bath
or shower.
