The purpose of this document is to give guidance to approved contractors and suppliers who are engaged in the fire stopping of fire rated structures using the Astro LUMI Canopy.

All service holes through floors,ceilings and compartment walls must be fire stopped to prevent the passage of fire, smoke and hot gases.

The key points for passive fire protection products are :-

  • Prevent the spread of fire, smoke and hot gases through a building by containing it in the compartment of origin.
  • Maintain the integrity of escape routes from a building.
  • Reduce loss or damage to property from the effect of fire and smoke.
  • Maintain pressure differential between compartments and ventilation channels.


Luminaire canopies are designed to specifically stop the passage of smoke and fire through a fire rated ceiling,where recessed downlights are fitted.

Tests have shown that, without the canopy in place, fire and smoke would penetrate through the recessed light fitting in seconds spreading into the void or room above endangering both lives and property.

The Astro Lumi Canopy will provide 60 minutes protection by completely containing the fire and smoke within the cover,whilst at the same time allowing the heat from the light fitting to dissipate through the cover

Fully tested to BS Standard 476 part 20 & 23 clause 5
The Astro Lumi Canopy also meets the requirements of class 0 materials

Key points:

60 min rated
LPC accredited
Self supporting
Resistant to tear and abrasion
Simple to install
Can be fitted within minutes
Suitable for suspended and modular ceilings


To install a luminaire Astro Lumi Canopy into a suspended grid system

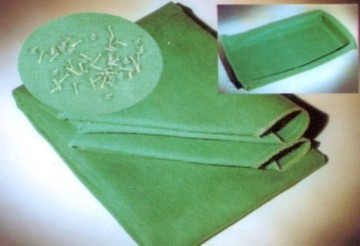

Remove from packaging and unfold.


Remove from packaging and unfold.

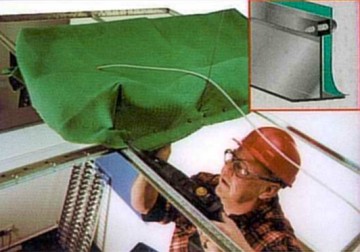

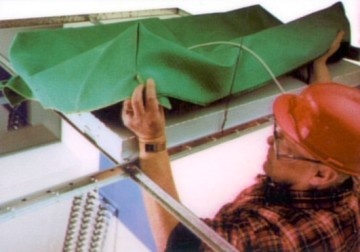

Place over the luminaire fitting

Place over the luminaire fitting and align cable entry with cable.

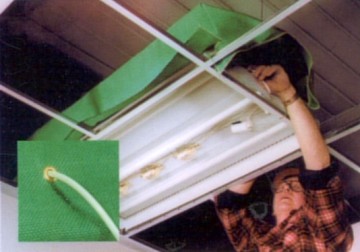

Thread cable through cable access eyeletThread cable through cable access eyelet as shown.

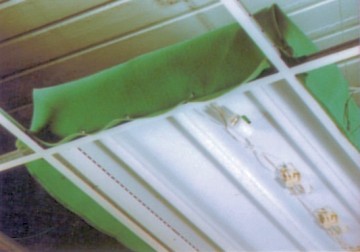

Secure the Lumi Canopy

Secure the Lumi Canopy to ceiling grid with self tapping screws (provided) by screwing through the canopy and into the bulb of the grid at 80mm centres

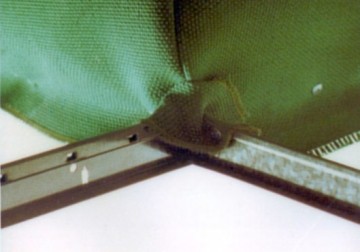

Fold corner tab

Fold corner tab tightly over grid section and secure.

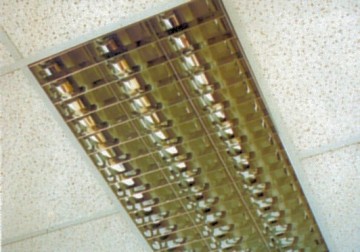

Finished installationThe canopy is now installed
Replace the surrounding tiles and finish installation

Replace the surrounding tiles and finish installation of luminaire as recommended by the manufacturer

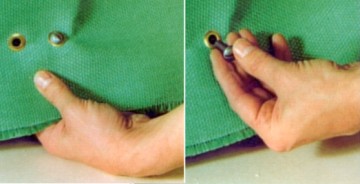

For dual cable access remove the sealing bolt as shownAll Astro Lighting Canopies have single or dual cable access, for dual cable access remove the sealing bolt as shown.

Astro Lumi Canopies are manufactured in the EU, meeting the highest quality standard in compliance with ISO EN 9001:2000. For fire test certification contact Astroflame Fireseals technical department.

Testing certification
Passed and certified to BS 476 part 20 & 23 by LPC (Loss Prevention Council)

Storage and disposal
Astro LUMI Canopies should be stored indoors. No shelf life is giving as the canopies will deteriorate in storage.
