Installation Please
note: positioning the Bell Push on or near metal structures
or
reinforced PVCµ doors or door frames may reduce
the transmission range.
Mount the Bell Push using the adhesive pad. Alternatively

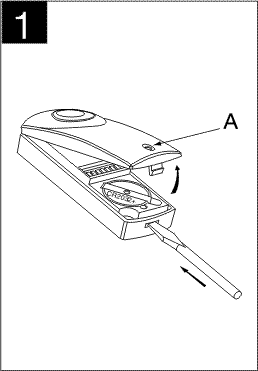

open the front
cover using a flathead screwdriver (Diagram 1) and mount
using the screws

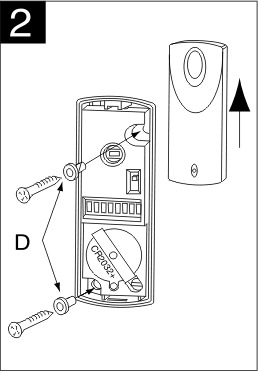

provided (See Diagram 2), ensuring that the rubber grommets
(D in Diagram 2)
remain in place .
To maintain weather proofing always mount the Bell Push
in the upright
position shown in Diagram 2.
Confidence Light (A on Diagram 1) will illuminate when
the Bell Push is

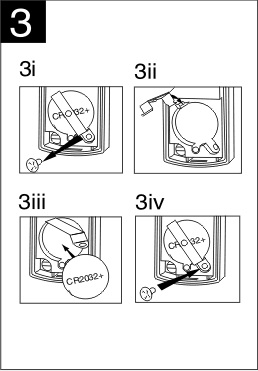

pressed. If light (A) does not illuminate, the CR2032
Lithium Coin Cell battery
needs replacing, see Diagram 3.
Tune Selection
Your Bell Push can make the Door Chime play either a
2 note or an additional
note sequence. (The number of additional note sequences
will vary depending
on the model of Libra Door Chime you have). The Tune
Select (B in Diagram 4)
will be factory set to position 1, making the chime
play the 2 note sequence.
If you require the additional note sequence move the
Tune Select to position 2. Please note: The above note sequences are not
available when using the
Libra Mini Chime, Model D292.
System Codes
- VITAL INFORMATION
Friedland Libra products use a coding system to ensure
that they work together
and that there is no interference to or from a neighbouring
Friedland wirefree
product. The system code in all Libra products is set
using a series of 8 switches
(C in Diagram 4). For your new Libra Push to work with
other Libra products,
you will need to ensure that the system codes are the
same by following this
procedure:
1. Check switches 1 to 8 in your other Libra products.

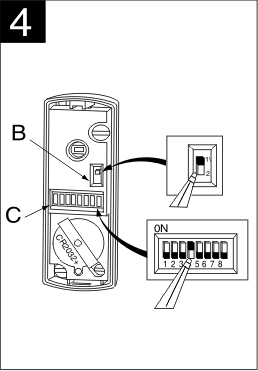

2. Check the switches (C in Diagram 4) in your new Bell
Push.
3. If switches 1 to 8 are not in the same position change
the switches in
your new Bell Push to match those in your existing products
using a pen
tip, Diagram 4. Example: if you set switch 1 in your Bell Push
to the ON position, then you
must set switch 1 in your Door Chime to the ON position.
If you experience interference from a neighbour's Friedland
product, change
the system codes in all your products as above.
Caradon Friedland guarantees this product for 3 years
from date of purchase.
This does not affect your statutory rights.
If you require further information about Libra products,
call the Friedland
helpline on 0161 432 0277 ext 888.
