Libra Wirefree Extender

Instructions for Model No. D271

You will need
1 x 6LR61(PP3) alkaline battery. We recommend that only long-life alkaline batteries are
used. This product will not work with NiCd rechargeable batteries.
A small flathead screwdriver

Please Note : The extender is not suitable for outdoor installation. We recommend
you read the Vital Information about System Codes before commencing installation.
Open the Extender cover using a flathead screwdriver, Diagram1, and remove the
Decide on the location of the Extender and on the length of cable you will require.
Feed the cable through the cable inlet (A in Diagram 2). Attach the Extender to the
wall using the screws provided, Diagram 2, then follow one of the two installation
options below.
Option 1. Installing the Bell Push Extender for use with an existing Wired Bell
Push and Door Chime.
Disconnect the power supply to your existing Chime by isolating the mains supply
(if transformer-powered) or removing the batteries. Connect the Extender in
either of the 3 positions X,Y or Z as shown in Diagram 3, using terminals 0 and 2.

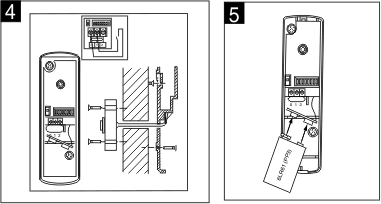

Option 2. Installing the Extender for use with a traditional wired Bell Push, when no
wired Chime exists (Diagram 4).
If you are using the Extender to allow you to have a traditional decorative bell push
on your door, connect the Extender to your traditional wired Bell Push using
terminals 0 and 1, See Diagram 4.
To complete your installation, fit the 6LR61(PP3) battery as shown in Diagram 5
and replace the Extender cover securely.
Please note : The Extender always requires a 6LR61(PP3) battery. Always check
that the wires are connected to the correct terminals before reconnecting the power
or replacing the Chime batteries.

Tune Selection
Your Extender can be set to up to make the Door Chime play a 2 note or an
additional note sequence (The number of additional note sequences available will
vary depending on the model of Libra Door Chime you are using with your Extender).
The Tune Selector in the Extender (B in Diagram 2) is factory set to position 1 making
the Door Chime play the standard 2 note sequence. If you would prefer the 4 note
additional sequence just move Tune Selector to position 2.
If you have another Libra Bell Push, for example at your back door, this can be set
up to make your door chime play a different note sequence to that of your Extender.
You can change the note sequences at any time by using the procedure above.
Please note: The note sequence choices described above are not available when the
Extender is being used with a Libra Mini Chime, Model D292

Friedland Libra products use a coding system to ensure that they work together and
that there is no interference to or from a neighbouring Friedland wirefree product.
The system code in all Libra products is set using a series of 8 switches (C in Diagram 2).
In order for your Chime to work with a new Libra Extender and other Libra products, you
will need to ensure that the system codes are adjusted to be the same by following this
1. Check switches 1 to 8 in your existing Libra products.
2. Remove the front cover from the Extender and look at the position of the switches
(C in Diagram 2).
3. If switches 1 to 8 are not in the same position change the switches in your new Extender
to match those in your existing products using a pen tip, as illustrated in Diagram 2.
Example: if you set switch 1 in your Door Chime to the ON position, then you must
set switch 1 in your Extender to the ON position.
In the unlikely event that your Door Chime rings without your Extender being
activated, other Friedland wirefree product, either your own or a neighbour's, is
using the same code as your own. You should change the system code in all your
products in the same way as described above.

Other Libra Products
All Friedland Libra products are compatible and will activate each other if the system
codes are set to be the same, as described above. For example, if you install an
additional Libra Bell Push for your back door, just ensure that you adjust the system
code to be the same as your Extender and your Door Chime.\


Caradon Friedland guarantees this product for 3 years from the of purchase.
This does not effect your statuory rights
If you require further information about Libra products,
call the Friedland helpline on 0161 432 0277 ext 888.

Trouble Shooting

Problem Possible Cause Solution
Chime not
Batteries may not be inserted
Check all batteries have been
inserted correctly
 Chime may be positioned out
of range of the Extender
Move your Chime closer to the
 A metallic object may be
blocking the signal from the
Experiment with the location of your
Chime to see if you can position it in
a more suitable place
 The battery in the Extender
may need replacing
Press the Bell Push. If Confidence
Light (D) Diagram 1 does not
illuminate, replace the Extender battery
 Your Extender and Chime may
have different system codes
Check the system codes in both your
Chime and Extender
 Your volume control may be
set to the mute setting
Set volume control to position 1 or 2

The Extender may not be
wired correctly
Press the Bell Push. If Confidence Light
(D Diagram 1),does not illuminate,
check the extender wiring. If you are
extending an existing datebattery powered
Chime, swap the two wires over at the
transmitter terminals
of the Chime
Another of your own or a
neighbour's wirefree product
may be using the same code
Change the system codes in both your
Extender and Chime
