Libra Wirefree Bell Push & 200m Chime

Instructions for Model No.s D344

Pack Contents
Bell Push
Door Chime
Door Chime wall hanging bracket (incl screws and wall plugs for mounting)
Adhesive pad and screws for mounting the Bell Push

You will need
l 2 x LR6(AA) alkaline batteries for the Door Chime. We recommend that only long life alkaline batteries are used. This product will not work with NiCd rechargeable batteries
A small flathead screwdriver
A Philips crosshead screwdriver

Please note:
positioning the Bell Push or Door Chime on or near metal structures or reinforced PVCµ doors or door frames may reduce the transmission range.

Bell Push

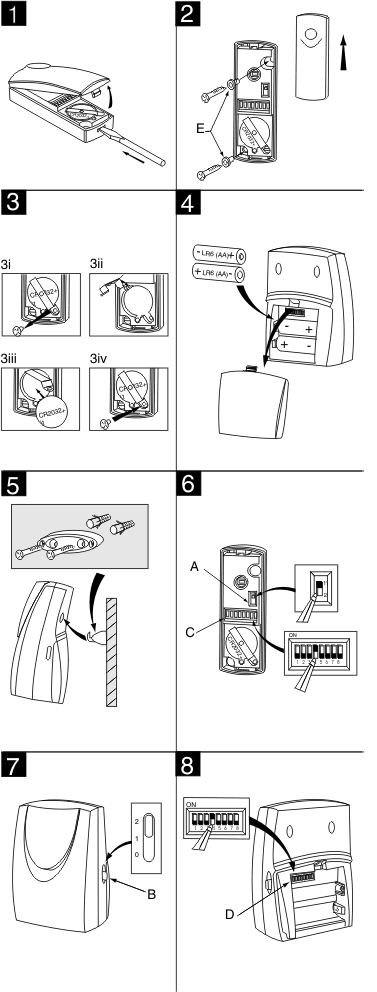

You can attach the Bell Push directly on to your door frame using the adhesive pad making sure the surface on which it is to be placed is clean and dry. Alternatively open the front cover using a flat head screwdriver (Diagram 1) and mount using the screws provided (See Diagram 2), ensuring that the rubber grommets (H in Diagram 2)
remain in place.

To ensure weather proofing is maintained, always mount the Bell Push in the upright position shown in Diagram 2 and replace the front cover securely.
When the Bell Push button is pressed, the Confidence Light (A on Diagram 1) will illuminate to reassure the caller that the Bell Push is working. When it does not illuminate the battery needs replacing. Use a CR2032 Lithium Coin Cell battery, inserting it as shown in Diagram 3.

Awaiting correct diagram
hope this will help in the mean time.


Remove the battery compartment cover and insert the two LR6(AA) alkaline batteries
as shown in Diagram 4.
When these batteries need replacing, the Low Battery Warning Light (B in Diagram 5) will
flash every 5 seconds.
The Door Chime can be free standing or wall mounted using the wall bracket
provided. If wall mounting is preferred, screw the bracket to the wall, Diagram 6.
The Door Chime hooks onto the wall bracket as illustrated.
There is an external adapter socket (C in Diagram 5) which allows you to power the
Door Chime receiver from a 220-240V mains socket using the Friedland Libra
plug-in mains adapter which can be purchased separately (D254).

Tune Selection
Your Bell Push can be setup to make the Door Chime play a 2 note or 4 note sequence.
The Tune Selector in the Bell Push (A in Diagram 6) is factory set to position 1 making the Door Chime play the standard 2 note sequence. If you would prefer the 4 note sequence just move Tune Selector to position 2.

You can change the note sequence at any time by using the procedure above.

Volume Control
The Volume Control (B in diagram 7) enables you to adjust the volume of your Door Chime at any time or turn it off completely. As shown on Diagram 7 the settings are:
2. High
1. Low
0. Mute

Your Libra Wirefree Bell Push and Door Chime use a coding system to ensure
there is no interference to or from a neighbouring Friedland wirefree product.
Your Bell Push and Door Chime need to have identical codes so that they can
recognise each other. In the unlikely event that your Door Chime rings without your
Bell Push being used, it means another Friedland wirefree product, either your own
or a neighbour's, is using the same code as your own. You can then change your
code by following this procedure:-
1. Remove the front cover from the Bell Push. Using a pen tip alter one or more of
the 8 switches (C in Diagram 6) to the ON position.
2. Remove the battery compartment from the Door Chime. Again using a pen tip alter
the switches 1 to 8 (D in Diagram 8) to correspond exactly to the switches you have
set in the ON position in the Bell Push.

Example: if you set switch 1 in your Bell Push to the ON position, then you must
set switch 1 in your Door Chime to the ON position.
In the unlikely event that your Door Chime rings without your Bell Push being used,
it means another Friedland wirefree product, either your own or a neighbour's, is
using the same system code as your own. You should change the system code in all
your products in the same way as described above.

Movement Activated Door Chimes
Friedland Libra chimes can also be activated by a Friedland Spectra 433MHz PIR Movement Detector/ Transmitter. All you have to do is make sure that the PIR and Door Chime have the same system code.

Other Libra Products
All Friedland Libra products are compatible and will activate each other if the system codes are set to be the same, as described above. For example, if you
install an additional Libra Bell Push for your back door, just ensure that you adjust the system code to be the same as your other Bell Push and your Door Chime.

Caradon Friedland guarantees this product for 3 years from the of purchase.
This does not effect your statuory rights
If you require further information about Libra products,
call the Friedland helpline on 0161 432 0277 ext 888.

Trouble shooting

Problem Possible Cause Solution
Chime not
Batteries may not be inserted
Check all batteries have been
inserted correctly
 Chime may be positioned out
of range of the Extender
Move your Chime closer to the
 A metallic object may be
blocking the signal from the
Experiment with the location of your
Chime to see if you can position it in
a more suitable place
 The battery in the Extender
may need replacing
Press the Bell Push. If Confidence
Light (D) Diagram 1 does not
illuminate, replace the Extender battery
 Your Extender and Chime may
have different system codes
Check the system codes in both your
Chime and Extender
 Your volume control may be
set to the mute setting
Set volume control to position 1 or 2

The Extender may not be
wired correctly
Press the Bell Push. If Confidence Light
(D Diagram 1),does not illuminate,
check the extender wiring. If you are
extending an existing datebattery powered
Chime, swap the two wires over at the
transmitter terminals
of the Chime
Another of your own or a
neighbour's wirefree product
may be using the same code
Change the system codes in both your
Extender and Chime
