Installation - 3
For the communication (interconnect) cable we recommended use of 6243Y mains cable or alternatively 1 mm sq. single double insulated cable. (Do not use an earth wire for the interconnect cable). Care must be taken ensuring correct wiring. Incorrect wiring will damage alarm/s.

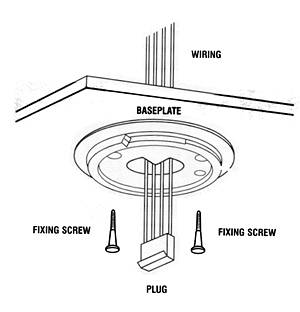

3. When correctly terminated, route the plug wires through a 36mm hole in ceiling. Offer baseplate to ceiling feeding plug and wiring through centre opening. Secure baseplate to ceiling using fixing holes (marked). Batton or pattress in ceiling may be required to ensure a good strong fixing.

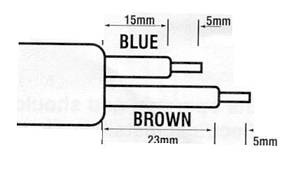

4. Installing pendant drop (lampholder). Lampholder is supplied already connected at lamp end. The end at the alarm requires connecting. This is to allow you to shorten the drop if required. To shorten cable strip back as shown below.
