9" & 12" Wall Fans

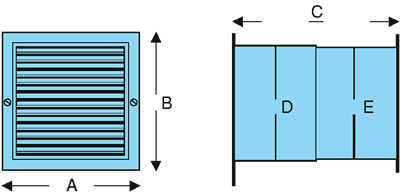

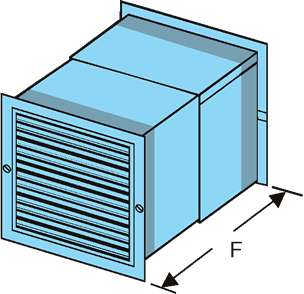

Wall Fan dimensions (mm)
Fan
A
B
C
D
E
F
Sound Level
BG WX9
340
340
228 - 380
300
295
380
60 db
BG WX12
400
400
228 - 380
370
365
380
60 db

Wall Fan Output
m3 / hr @ Free discharge
BG WX9
BG WX12
600
1000
