4" Wall Fans - Low Voltage 12v

4" Low Voltage Fan dimensions (mm)
Fans
A
B
C
D
K
BG XF100LV
163
98
75
30
163

Fan
Max Duct Length
BG XF100LV
2 - 3 Mts



4" Window Fans - Low Voltage 12v

4" Low Voltage Fan dimensions (mm)
Fans
A
B
C
D
BG WF100LV
163
90
30
163

Fan
Sound Level
BG XF100LV / WF100LV
41 db

4" Duct Fan Output
m3 / hr @ Free discharge
BG SF 1 / BG SF2
85

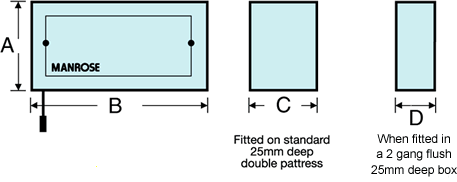

4" Low Voltage Fan dimensions (mm)
Transformer
B
C
D
BG T12P
145
55
30
BG T12PT
145
55
30


Typical Low Voltage Fan Installation
