High Power LED Floodlight Range

  part of  PIR Controlled Lighting
Main Index   •   Technical   •   Quick Order Entry   •   My Account   •   Stock Availability   •   Delivery
View Your Basket Basket

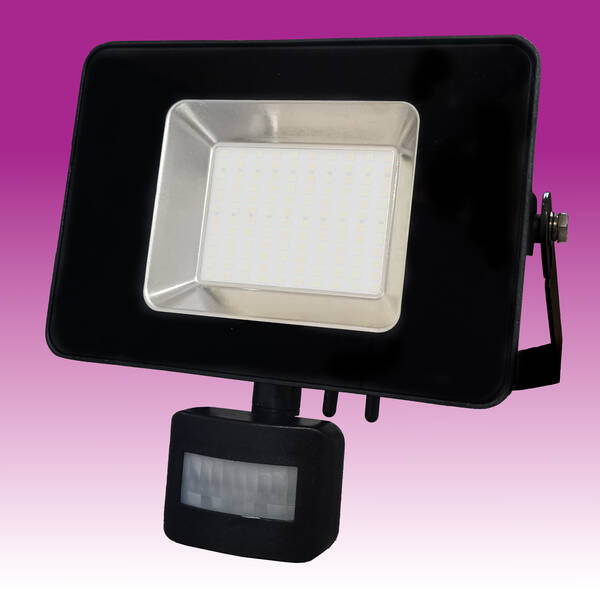

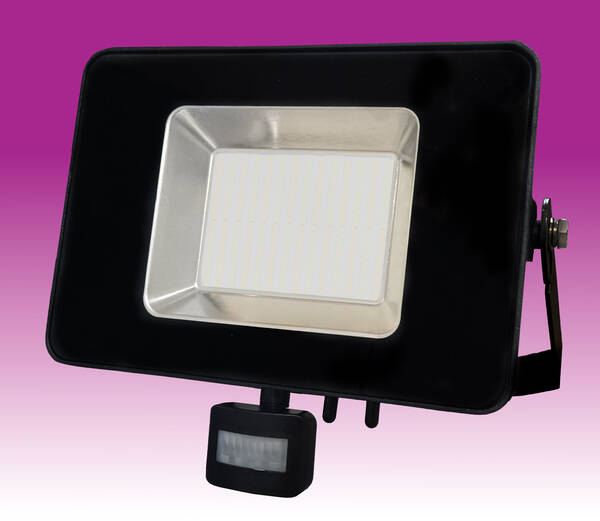

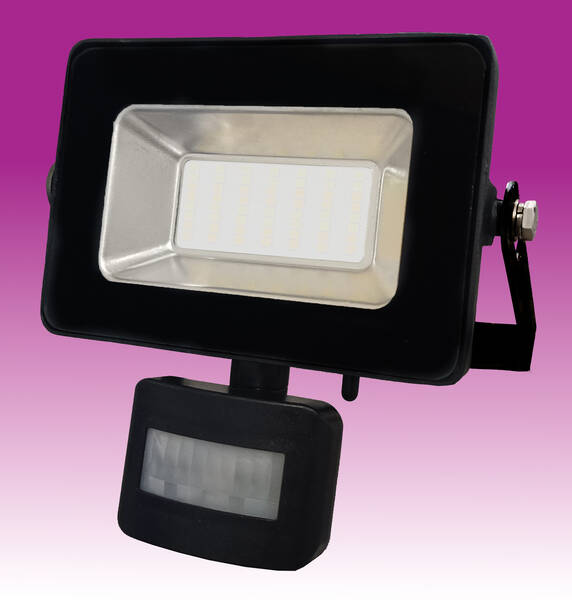

10w LED Floodlight c/w PIR Sensor
product photo
10w LED Floodlight
c/w PIR Sensor
  • Finish: Grey
  • Lumen Output: 750lm
  • Lamp Life (Average): 30,000 Hours
  • Lamp Colour: 6000K – Cool White
  • Voltage (V): 220-230V 50Hz
  • Wattage (W): 10W
  • Circuit Watts: 11W
  • IP44
  • PIR
    Time (Min-Max): User Adjustable Min: 5 seconds Max: 8 Minutes
  • Light Sensor: User adjustable
  • Detection Angle - 90°
  • Range: 8 metres Max
Order Code Description Price (ex vat) Price (inc vat) Qty
GL FL10PIR10w LED Floodlight c/w PIR Sensor
EA
29.95
EA
35.94
graphic
Compact LED Energy Saver Spot/Flood Lights c/w PIR
product photo

Single 8w
Height 185mm
Width 80mm
Depth 65mm

Twin 16w
Height 185mm
Width 165mm
Depth 65mm

Quad 32w
Height 292mm
Width 179mm
Depth 86mm

Compact
LED Energy Saver Spot/Flood Lights c/w PIR
Black
Introducing the new range of LED outdoor lighting from Timeguard.
They give instant brightness just like halogens but they are under half the size – and using a fraction of the power.
Meet the next generation of Energy Saving Outdoor Lighting.

  • Powerful 8w/16w LED Energy Saving PIR Floodlight – equivalent to 100w/200w incandescent lighting with only 10% of the running costs*.
  • Pan and tilt light aiming adjustment.
  • Light on times adjustment 5 seconds to 10 minutes.
  • Optional mode settings – Dusk to Dawn and Test mode.
  • 140° PIR detector (pan only) within adjustable 180° range and 10m detection range.
  • Lux (light level) adjustment – Day to Night (2 to 200 Lux – permanently ‘ON’ when at max).
  • Operating temperature -20°C to +40°C.
  • Ideal for both indoor and outdoor installations.
  • IP44 weatherproof rating.
  • Exit ‘ON’ feature.
  • Easy installation with Fast-fix terminal block connection.
  • RoHS compliance.
  • Light On Time After last detection (Adjustable) 5 Seconds (Min), 10 Minutes (Max)
  • Permanent ON Facility (Electronic)
Technical: Instructions 733kb pdf, Instructions 759kb pdf and Instructions 6Mb pdf
Order Code Description Price (ex vat) Price (inc vat) Qty
SM 100PIRB8w LED Energy Saver Floodlight c/w PIR - Black
EAEA 3+
49.9947.50
EAEA 3+
59.9957.00
graphic
SM 200PIRB16w LED Energy Saver Floodlight c/w PIR - Black
EAEA 3+
57.9955.50
EAEA 3+
69.5966.60
graphic
SM 400PIRB32w LED Energy Saver Floodlight c/w PIR - Black
EAEA 3+
107.0099.50
EAEA 3+
128.40119.40
graphic
Compact LED Energy Saver Spot/Flood Lights c/w PIR
product photo

Single 8w
Height 185mm
Width 80mm
Depth 65mm

Twin 16w
Height 185mm
Width 165mm
Depth 65mm

Quad 32w
Height 292mm
Width 179mm
Depth 86mm

Compact
LED Energy Saver Spot/Flood Lights c/w PIR
White
Introducing the new range of LED outdoor lighting from Timeguard.
They give instant brightness just like halogens but they are under half the size – and using a fraction of the power.
Meet the next generation of Energy Saving Outdoor Lighting.

  • Powerful 8w/16w LED Energy Saving PIR Floodlight – equivalent to 100w/200w incandescent lighting with only 10% of the running costs*.
  • Pan and tilt light aiming adjustment.
  • Light on times adjustment 5 seconds to 10 minutes.
  • Optional mode settings – Dusk to Dawn and Test mode.
  • 140° PIR detector (pan only) within adjustable 180° range and 10m detection range.
  • Lux (light level) adjustment – Day to Night (2 to 200 Lux – permanently ‘ON’ when at max).
  • Operating temperature -20°C to +40°C.
  • Ideal for both indoor and outdoor installations.
  • IP44 weatherproof rating.
  • Exit ‘ON’ feature.
  • Easy installation with Fast-fix terminal block connection.
  • RoHS compliance.
  • Light On Time After last detection (Adjustable) 5 Seconds (Min), 10 Minutes (Max)
  • Permanent ON Facility (Electronic)
Technical: Instructions 733kb pdf, Instructions 759kb pdf and Instructions 6Mb pdf
Order Code Description Price (ex vat) Price (inc vat) Qty
SM 100PIRWH8w LED Energy Saver Floodlight c/w PIR - White
EAEA 3+
49.9947.50
EAEA 3+
59.9957.00
graphic
SM 200PIRWH16w LED Energy Saver Floodlight c/w PIR - White
EAEA 3+
57.9955.50
EAEA 3+
69.5966.60
graphic
SM 400PIRWH32w LED Energy Saver Floodlight c/w PIR - White
EAEA 3+
107.0099.50
EAEA 3+
128.40119.40
graphic
Steinel Xled - Home Sensor Floodlights
product photo

Light output approx
150w Halogen

Run up to 15 Extra Home 1 floodlights from each sensor floodlight with built in PIR

Steinel Xled
14.8w Home Sensor Floodlights
STEINEL brings tomorrow's technology to your home today.
The XLed Home floodlight with its 170 LEDs ensures perfect illumination with a sensationally low energy requirement.

The new hi-tech floodlight requires less than 15 watts to immerse its surroundings in dazzling light.
Its incredibly high level of efficiency is made possible by using 170 LEDs for light and an innovative control system.
These modern components come with a further major advantage: compared with halogen or filament bulbs, their life is virtually unlimited.
Their life span is enhanced by STEINEL's Active-Thermo-Control technology that protects the LEDs from overheating.

As the floodlight emits only a fraction of the heat conventional floodlight do,
it can be installed without a problem under porches.
Adjusting in all directions, the light panel can be aimed perfectly at the area you wish to illuminate.

Intelligent lighting control is provided by STEINEL's IR-Sensor technology
that has been tried and proven in millions of applications and also featured in the IS 140-2 motion detector.
The combination of LED technology and sensor control produces a saving of 90% over conventional halogen floodlights.
Click the order code for Alternative Product and AccessoriesTechnical: Installation / Instructions
Order Code Description Price (ex vat) Price (inc vat) Qty
ST XLEDHOMEBSteinel XLed Home Sensor Floodlight - Black
EA
85.00
EA
102.00
graphic
ST XLEDHOMESteinel XLed Home Sensor Floodlight - White
EA
85.00
EA
102.00
graphic
ST XLEDH1BSteinel Xled Home 1 Floodlight - Black
EAEA 3+
69.0067.00
EAEA 3+
82.8080.40
graphic
ST XLEDH1Steinel Xled Home 1 Floodlight - White
EAEA 3+
69.0067.00
EAEA 3+
82.8080.40
graphic
Steinel Xled 10 - LED Sensor Floodlights
product photo


Enclosure - IP 54

Dimensions (h x w x d) -
233 x 200 x 200 mm

Optional - Ground Spike

Fitting & PIR
3 year Guarantee

Light output approx
140w Halogen

Steinel Xled 10
LED Sensor Floodlights
Instant light as bright as day with high energy efficiency in keeping with the times.
Sensor-controlled halogen light gives you safety and security, but doesn't completely meet today's demands on energy efficiency. Low-energy bulbs don't provide an alternative because their light doesn't shine brightly straight away.
XLed floodlights from STEINEL feature a new flood-light concept that provides an ideal combination of sensor and LED light technology; instant, fully bright light from electronically controlled LED's using only about 1/3 of the energy consumed by conventional halogen floodlights.
This turns a practical product into a real stunner.

Unique flexibility for a wealth of different uses.
Creating this outstanding lighting solution demanded a completely new approach.
From the aspect of control, cooling and design. With head-turning looks, it uses innovative high-end 3w LED's and a specially developed cooling system. But the really clever part is found in the microprocessor control electronics.
The result is nothing short of amazing: radiantly bright light all around the building at minimum energy consumption. Plus a fascinating lighting effect with unique directional flexibility.

  • 10% basic brightness mode (always 10% light at night or 10 minute "OFF" delay after responding).
  • Housing tilts through: 200°
  • Housing swivels through: 270°
  • Voltage - 230v - 240v, 50 Hz
  • Energy Consumed: 25w
  • Light output approx: 140w Halogen
  • Life of LEDs: - up to 50,000 hours
    (at 3 hours/day, approx. 45 years)
Click the order code for Alternative Product and AccessoriesTechnical: Installation / Instructions - XLED
Order Code Description Price (ex vat) Price (inc vat) Qty
ST XLED10BXLed 10 Sensor Floodlight - Black
EA
189.95
EA
227.94
graphic
ST XLED10WXLed 10 Sensor Floodlight - White
EA
189.95
EA
227.94
graphic
Steinel Xled 25 - LED Sensor Floodlights
product photo


Enclosure - IP 54

Dimensions (h x w x d) -
305 x 200 x 200 mm

Optional - Ground Spike

Fitting & PIR
3 year Guarantee

Light output approx
300w Halogen

Steinel Xled 25
LED Sensor Floodlights
Instant light as bright as day with high energy efficiency in keeping with the times.
Sensor-controlled halogen light gives you safety and security, but doesn't completely meet today's demands on energy efficiency. Low-energy bulbs don't provide an alternative because their light doesn't shine brightly straight away.
XLed floodlights from STEINEL feature a new flood-light concept that provides an ideal combination of sensor and LED light technology; instant, fully bright light from electronically controlled LED's using only about 1/3 of the energy consumed by conventional halogen floodlights.
This turns a practical product into a real stunner.

Unique flexibility for a wealth of different uses.
Creating this outstanding lighting solution demanded a completely new approach.
From the aspect of control, cooling and design. With head-turning looks, it uses innovative high-end 3w LED's and a specially developed cooling system. But the really clever part is found in the microprocessor control electronics.
The result is nothing short of amazing: radiantly bright light all around the building at minimum energy consumption. Plus a fascinating lighting effect with unique directional flexibility.

  • 10% basic brightness mode (always 10% light at night or 10 minute "OFF" delay after responding).
  • Housing tilts through: 200°
  • Housing swivels through: 270°
  • Voltage - 230v - 240v, 50 Hz
  • Energy Consumed: 60w
  • Light output approx: 300w Halogen
  • Life of LEDs: - up to 50,000 hours
    (at 3 hours/day, approx. 45 years)
Click the order code for Alternative Product and AccessoriesTechnical: Installation / Instructions - XLED
Order Code Description Price (ex vat) Price (inc vat) Qty
ST XLED25BXLed 25 Sensor Floodlight - Black
EA
295.00
EA
354.00
graphic
ST XLED25WXLed 25 Sensor Floodlight - White
EA
295.00
EA
354.00
graphic
Steinel Xled FE10 - LED Sensor Floodlights with Wireless Receiver
product photo
Steinel Xled FE10
LED Sensor Floodlights with Wireless Receiver
Use with FS300 Pir's and or RC400 Hand Held Remote Control

  • Energy Consumed: 25w
  • Light output approx: 140w Halogen
Click the order code for Alternative Product and AccessoriesTechnical: Steinel Wireless and Installation / Instructions - XLEDFE
Order Code Description Price (ex vat) Price (inc vat) Qty
ST XLEDFE10BXLed FE10 LED Floodlight with Wireless Receiver - Black
EA
205.65
EA
246.78
graphic
ST XLEDFE10WXLed FE10 LED Floodlight with Wireless Receiver - White
EA
205.65
EA
246.78
graphic
Steinel Xled FE25 - LED Sensor Floodlights with Wireless Receiver
product photo
Steinel Xled FE25
LED Sensor Floodlights with Wireless Receiver
Use with FS300 Pir's and or RC400 Hand Held Remote Control

  • Energy Consumed: 60w
  • Light output approx: 300w Halogen
Click the order code for Alternative Product and AccessoriesTechnical: Steinel Wireless and Installation / Instructions - XLEDFE
Order Code Description Price (ex vat) Price (inc vat) Qty
ST XLEDFE25BXLed FE25 LED Floodlight with Wireless Receiver - Black
EA
299.00
EA
358.80
graphic
ST XLEDFE25WXLed FE25 LED Floodlight with Wireless Receiver - White
EA
299.00
EA
358.80
graphic
Steinel Wireless PIR's and Remote Control
Steinel Xled FE
Wireless PIR's and Remote Control
Click the order code for Alternative Product and AccessoriesTechnical: IP Rating Chart, Installation / Instructions - FS300 and Steinel Wireless
Image Order Code Description Price (ex vat) Price (inc vat) Qty
product photoST FS300BIS-FS300 Wireless Sensor - Black - IP 54
EAEA 2+
60.7558.65
EAEA 2+
72.9070.38
graphic
product photoST FS300WIS-FS300 Wireless Sensor - White
EAEA 2+
60.7558.65
EAEA 2+
72.9070.38
graphic
product photoST RC400RC400 4 Channel Hand-held Wireless Transmitter
EAEA 2+
34.7733.60
EAEA 2+
41.7340.32
graphic
