Bathroom & Toilet Fans

  part of  Ventilation & Cooling
Main Index   •   Technical   •   View Your Order / Checkout   •   Quick Order Entry   •   Stock Availablity   •   Delivery
Toilet Bathroom Fans
product photo

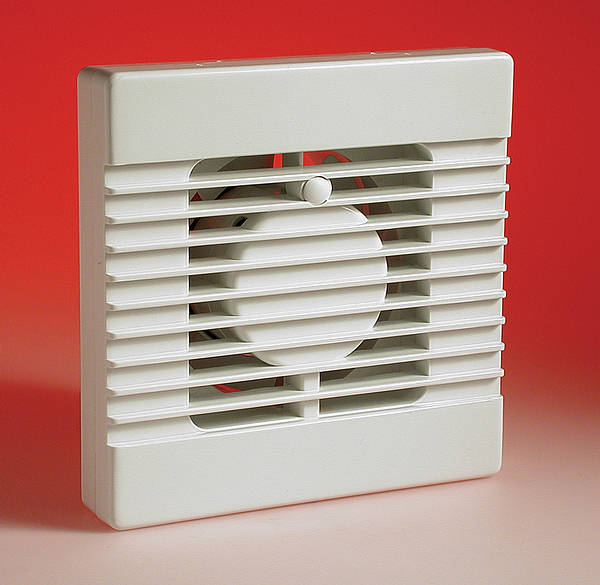

4" (100mm) Fans
Click the order code for Cable and AccessoriesTechnical: Fan Data Sheets, Fan Size Calculator and Information
Order Code Description Price (ex vat) Qty
RD G510T4 Inch Extractor Fan + Timer ( Special Offer )
EAEA 3+
9.999.00
graphic
RD G510NT4 inch Extractor Fan without Timer
EAEA 3+
9.408.35
graphic
RD G510PC4 Inch Extractor Fan with Pullcord
EAEA 3+
9.658.55
graphic
4 Inch Window Fan with Pull Cord and Timer
product photo
4 Inch Window Fan with Pull Cord and Timer
Click the order code for Cable and AccessoriesTechnical: Fan Data Sheets, Fan Size Calculator and Information
Order Code Description Price (ex vat) Qty
BG WF100T4 Inch Window Fan with Pull Cord Switch and Timer
EAEA 3+
22.4520.80
graphic
Toilet Bathroom Fans PIR Controlled
product photo
4" (100mm) Fan with PIR
PIR Activated with Electronic Timer

5 mt range PIR activated model with adjustable timer which switches on
as a person enters the room and runs on after the room has been vacated.
There is no need to connect a separate switch.
Click the order code for AccessoriesTechnical: Fan Data Sheets, Fan Size Calculator and Information
Order Code Description Price (ex vat) Qty
BG XF100PIR4 Inch Toilet Extractor Fan with PIR
EA
48.30
graphic

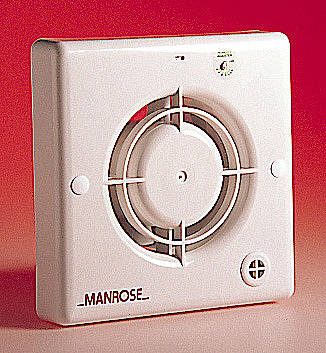

Humidity Controlled Fans
product photo
4 Inch (100mm) Humidity Fan
Activated by room humidity level

Operates when the moisture content in a room rises above 65%.
This fan is designed to continue running after the fan has been switched off for a period of approx 20 minutes or until the humidity level is reached
The integral timer has been pre-set for approx 20 minutes but can be adjusted.
Purpose made for use in Kitchens, Bathrooms, etc.
Click the order code for Cable and AccessoriesTechnical: Fan Data Sheets, Fan Size Calculator and Information
Order Code Description Price (ex vat) Qty
BG WF100H4 Inch Humidity Window Extractor Fan
EAEA 2+
52.5050.20
graphic
BG XF100H4 Inch Humidity Wall Extractor Fan
EAEA 2+
26.6526.65
graphic
Airflow Quietair Fans - 2 Speed
product photo

Power consumption
5 watts to 9 watts
Airflow Quietair Fans - 2 Speed
Whisper QUIET
Ultra LOW ENERGY
EcoSTART TECHNOLOGY

A range of elegant, discreet axial fans that are supremely
quiet and activate only when they are really needed, using
exceptionally low energy

  • Extremely quiet, 25 dB(A)*
  • Power consumption only 5 watts *
  • Longlife ball-bearing motor with 40,000 hours life
  • Two speed options, 75m3/hr* and 90m3/hr
  • High efficiency impeller for ducted installation
  • Basic switching
  • High efficiency impeller delivers up to 60m3/hr through 12m of rigid ducting, including 90° bends
  • Integral flow straightener and back draught flap
  • Low specific fan power for SAP assessments
  • Clip-on cover for ease of cleaning
  • Complies with latest Building Regulations Approved Document F
Click the order code for Cable and AccessoriesTechnical: Data Sheet 145kb pdf and Data Sheets / Installation
Order Code Description Price (ex vat) Qty
AD QT100BAirflow Quietair Fan - 2 Speed ( Extended Range* )
EA
52.26
graphic
AD QT100TAirflow Quietair Fan 100mm 2 Speed + Timer
EA
65.35
graphic
AD QT100HTAirflow Quietair Fan 100mm 2 Speed + Humidity & Timer ( Extended Range* )
EA
99.50
graphic

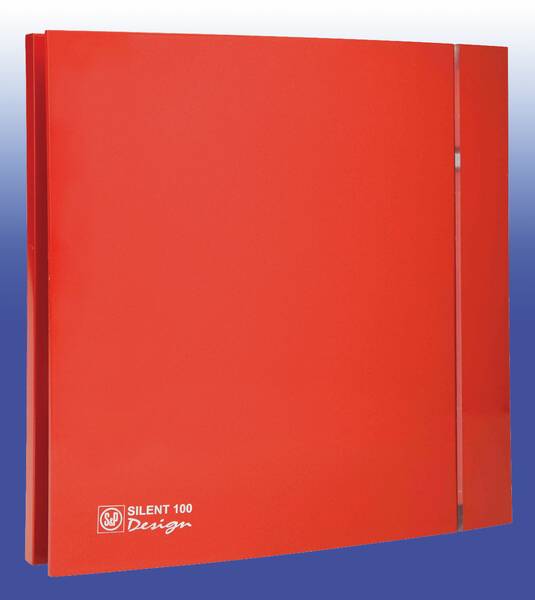

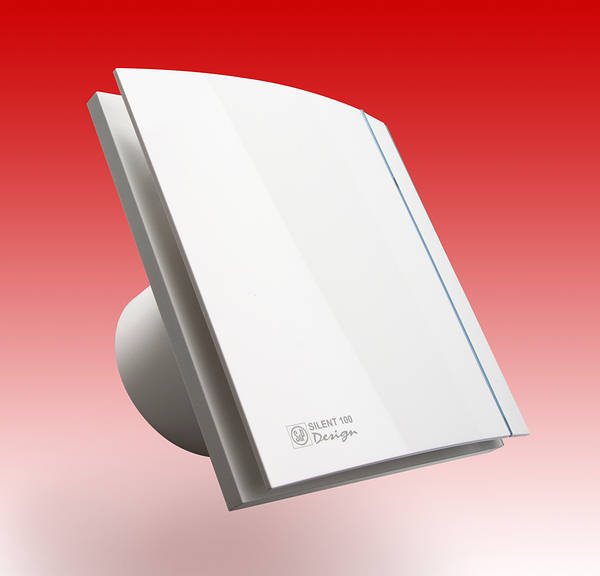

Silent 100 Design Extractor Fans
product photo

Airflow; 80 m3/hr

Low Power Consumption
8 watts Max

Very Low Noise
26.5 dB (A)

Face Plate - 188mm Sq
Projection: 24mm
Soler & Palau
Silent 100 Design Extractor Fans
Range of axial extractors with airflow rates of approx. 80 m3/h,
for connection to 100 mm diameter circular ducting.
Motor mounted on silent-elastic-blocks which absorb noise and vibration
and create a very low noise level.

All the fans are manufactured from injection moulded plastic, fitted with automatic shutter
and energy-saving motor equipped with overload thermal protection.
All the fans are class II insulation, IP45 rated and suitable to operate with air temperature up to 40oC.
Ballrace bearings ensure long life at any mounting angle.
Click the order code for Cable and AccessoriesTechnical: Install- 260kb pdf and Fan Size Calculator
Order Code Description Price (ex vat) Qty
SL SD100CZSilent 100 Design CZ Extractor Fan with Shutter ( Extended Range* )
EA
31.50
graphic
SL SD100CRZSilent 100 Design CRZ Extractor Fan with Shutter & Timer ( Extended Range* )
EA
57.00
graphic
SL SD100CHZSilent 100 Design CHZ Extractor Fan with Shutter & Humidistat ( Extended Range* )
EA
72.00
graphic
Silent 100 Design Extractor Fans - Silver
product photo

Airflow; 80 m3/hr

Low Power Consumption
8 watts Max

Very Low Noise
26.5 dB (A)

Face Plate - 188mm Sq
Projection: 24mm
Soler & Palau
Silent 100 Design Extractor Fans
Silver Finish
Range of axial extractors with airflow rates of approx. 80 m3/h,
for connection to 100 mm diameter circular ducting.
Motor mounted on silent-elastic-blocks which absorb noise and vibration
and create a very low noise level.

All the fans are manufactured from injection moulded plastic, fitted with automatic shutter
and energy-saving motor equipped with overload thermal protection.
All the fans are class II insulation, IP45 rated and suitable to operate with air temperature up to 40oC.
Ballrace bearings ensure long life at any mounting angle.
Click the order code for Cable and AccessoriesTechnical: Install- 260kb pdf and Fan Size Calculator
Order Code Description Price (ex vat) Qty
SL SD100CZSSilent 100 Design CZ Extractor Fan with Shutter - Silver ( Extended Range* )
EA
36.50
graphic
SL SD100CRZSSilent 100 Design CRZ Extractor Fan with Shutter & Timer - Silver ( Extended Range* )
EA
68.00
graphic
SL SD100CHZSSilent 100 Design CHZS Extractor Fan with Shutter & Humidistat - Silver ( Extended Range* )
EA
78.00
graphic

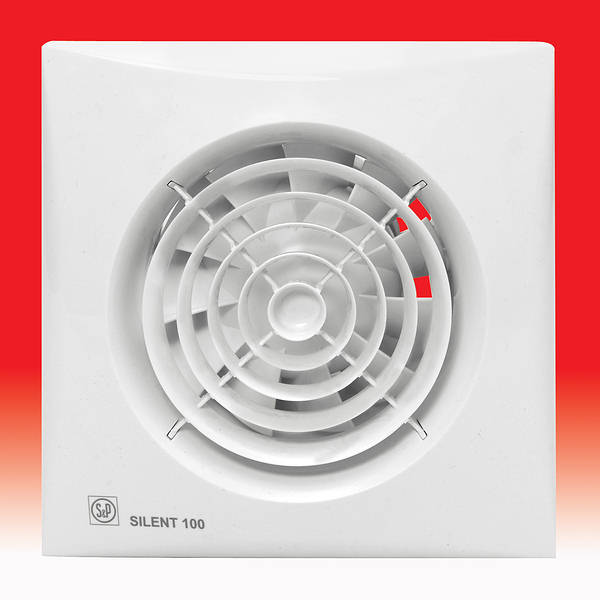

Silent 100 Range Extractor Fans White
product photo

Power Consumption
8 watts Max

Very Low Noise
26.5 dB (A)
Silent 100 Window Wall & Ceiling Extractor Fans - White
with Shutter
Range of axial extractors with airflow rates of approx. 100 m3/h,
for connection to 100 mm diameter circular ducting.
Motor mounted on silent-elastic-blocks which absorb noise and vibration
and create a very low noise level.

All the fans are manufactured from injection moulded plastic, fitted with automatic shutter
and energy-saving motor equipped with overload thermal protection.
All the fans are class II insulation, IP45 rated and suitable to operate with air temperature up to 40oC.
Ballrace bearings ensure long life at any mounting angle.
Click the order code for Cable and AccessoriesTechnical: Fan Size Calculator
Order Code Description Price (ex vat) Qty
SL S100CZSilent 100 CZ Extractor Fan with Shutter ( Extended Range* )
EA
26.25
graphic
SL S100CRZSilent 100 CRZ Extractor Fan with Shutter & Timer ( Extended Range* )
EA
46.00
graphic
SL S100CDZSilent 100 CDZ Extractor Fan with Shutter & PIR ( Extended Range* )
EA
57.00
graphic
SL S100CHZSilent 100 CHZ Extractor Fan with Shutter & Humidistat ( Extended Range* )
EA
57.00
graphic
SL SV100CHZSilent 100 CHZ Extractor Fan with Shutter & Visual Humidistat ( Extended Range* )
EA
63.00
graphic
Silent 100 Range Extractor Fans Silver
product photo

Power Consumption
8 watts Max

Very Low Noise
26.5 dB (A)
Silent 100 Window Wall & Ceiling Extractor Fans - Silver
with Shutter
Range of axial extractors with airflow rates of approx. 100 m3/h,
for connection to 100 mm diameter circular ducting.
Motor mounted on silent-elastic-blocks which absorb noise and vibration
and create a very low noise level.

All the fans are manufactured from injection moulded plastic, fitted with automatic shutter
and energy-saving motor equipped with overload thermal protection.
All the fans are class II insulation, IP45 rated and suitable to operate with air temperature up to 40oC.
Ballrace bearings ensure long life at any mounting angle.
Click the order code for Cable and AccessoriesTechnical: Fan Size Calculator
Order Code Description Price (ex vat) Qty
SL S100CZSSilent 100 CZ Extractor Fan with Shuttter - Silver ( Extended Range* )
EA
39.90
graphic
SL S100CRZSSilent 100 CRZ Extractor Fan with Shutter & Timer - Sliver ( Extended Range* )
EA
61.50
graphic
Airflow Icon15 Fans
product photo
Airflow Icon 15 Fans

New, stylish iCON Range
iCON 15 low profile fan for toilets, en-suites, bathrooms and shower rooms. Performance up to 76 m3/hr (21 l/sec)

The basic iCON Fan is supplied for remote switching. - No module required

To order an alternative method of control, just select from the modules below
PCM - Pull Cord - Manual on/off control by pull cord switch
TM - Timer - Adjustable timer 1 to 45 minutes. Remote or light switch operation
HTM - Humidity - Adjustable humidity setting 40% to 90% RH, adjustable timer and pull cord boost
PRTM - Infrared - Passive infrared activation with adjustable timer overrun
PRHTM - Infrared - Passive infrared activation with adjustable humidity setting and adjustable timer overrun
CVM15 - Two Speed - On/off by remote switch (optional), starts at full speed and reduces to trickle speed by integral pull cord.

Don't forget to add the control module you want from the accessories menu below. Any module fits any fan.
Click the order code for Accessories and ModulesTechnical: Data Sheets / Installation
Order Code Description Price (ex vat) Qty
AD ICON15Airflow iCON15 Low Profile Extractor Fan - White
EAEA 3+
31.9529.75
graphic

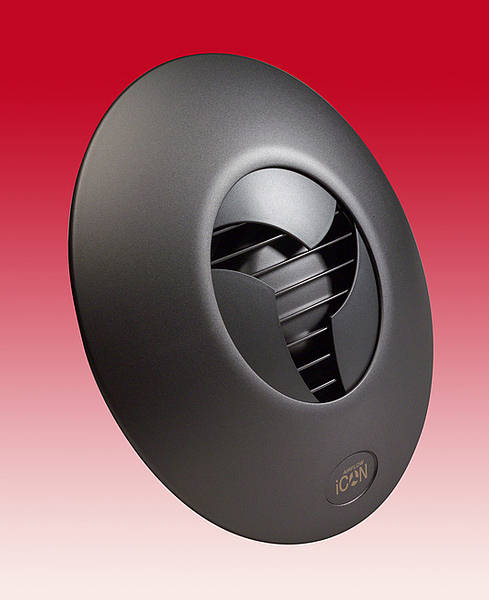

AD ICON15COVAAnthracite Facia for iCON15
EA
12.95
graphic

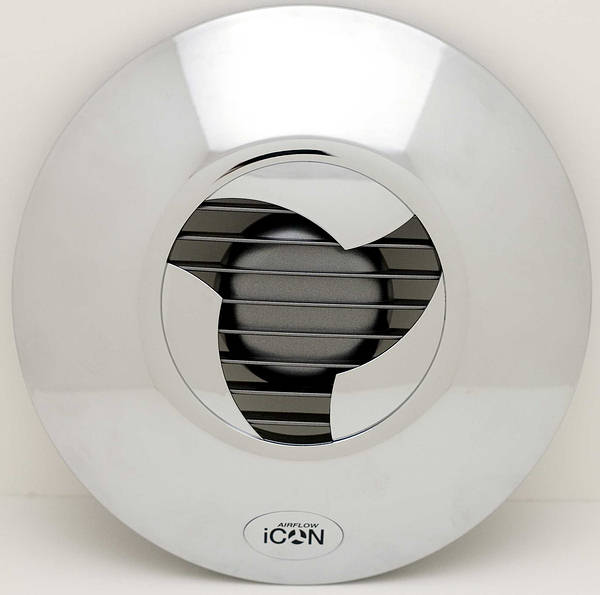

AD ICON15COVCChrome Facia for iCON15
EA
52.76
graphic

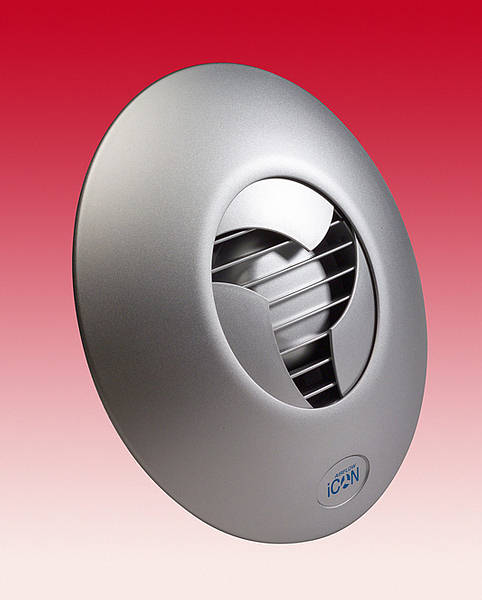

AD ICON15COVSSSatin Silver Facia for iCON15
EA
12.95
graphic

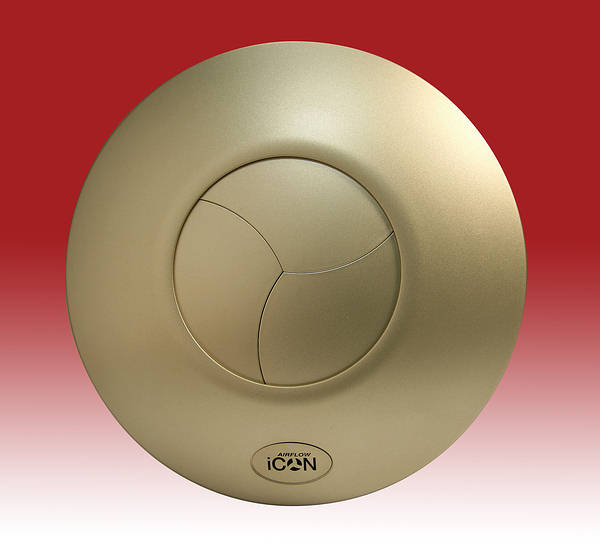

AD ICON15COVSANDSandstone Facia for iCON15 ( Clearance Stock )
EA
12.95
graphic
Airflow Icon30 Fans
product photo

Anthracite
Airflow Icon 30 Fans
iCON 30 low profile fan for toilets, en-suites, utility rooms and small bathrooms. Performance up to 118 m3/hr (32 l/sec)

The basic iCON Fan is supplied for remote switching. - No module required

To order an alternative method of control, just select from the modules listed below
Click the order code for Accessories and ModulesTechnical: Data Sheets / Installation
Order Code Description Price (ex vat) Qty
AD ICON30Airflow iCON30 Low Profile Extractor Fan - White
EAEA 3+
65.2762.00
graphic
AD ICON30COVAAnthracite Facia for iCON30
EA
15.50
graphic
AD ICON30COVSSSatin Silver Facia for iCON30
EA
15.50
graphic
Airflow Icon Fan Modules
product photo
Airflow Icon Fan Modules
Click the order code for Cable and AccessoriesTechnical: Data Sheets / Installation
Order Code Description Price (ex vat) Qty
AD PCMiCON Pull Cord Module
EAEA 3+
8.958.50
graphic

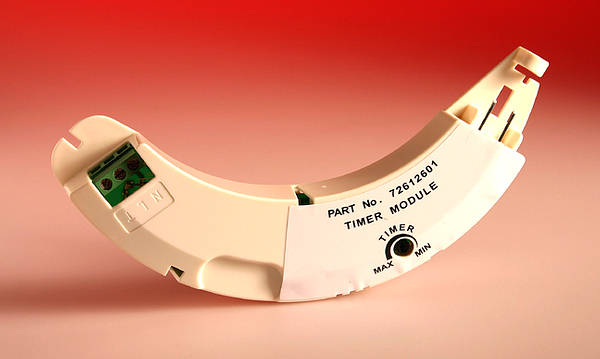

AD TMiCON Adjustable Timer Module
EAEA 3+
11.7510.95
graphic
AD HTMiCON Humidity Controlled Pull Cord Timer Module
EAEA 3+
26.7024.80
graphic
AD PRTMiCON Pir / Timer Module
EAEA 3+
50.2046.18
graphic
AD PRHTMiCON Pir / Humidity Controlled / Timer Module
EAEA 3+
54.0049.75
graphic
AD CVM15iCON15 Trickle / Boost Module
EA
13.25
graphic
AD CVM30iCON30 Trickle / Boost Module
EA
13.25
graphic
