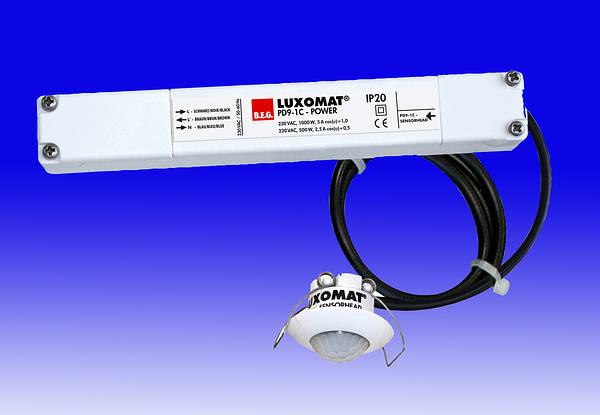

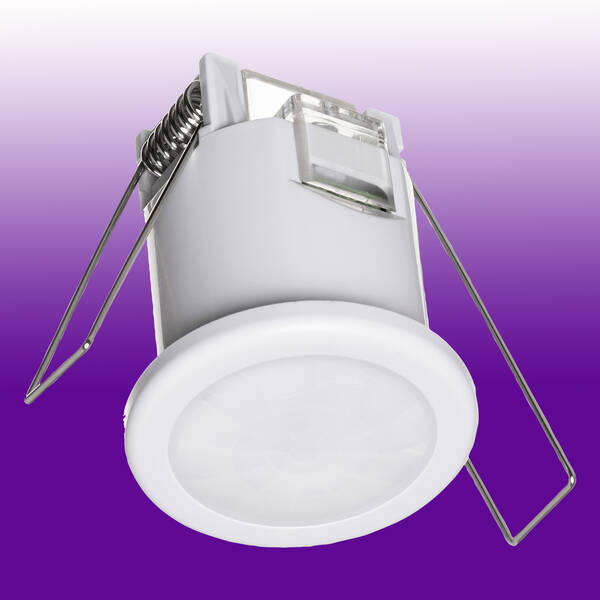

Mini Occupancy Detector - White - LUXOMAT® PD9 range
product photo

Control Box Dims
L: 165mm x W: 24mm x H: 24mm

Connection of sensor and control box by RJ11 lead 450mm included

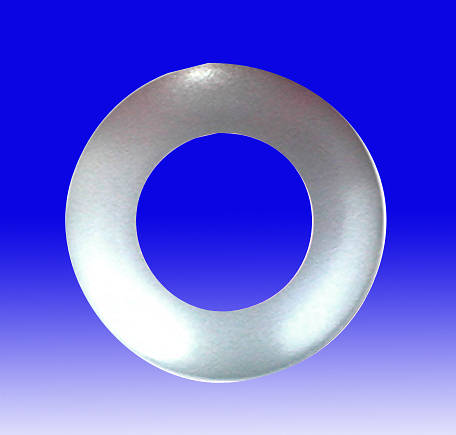

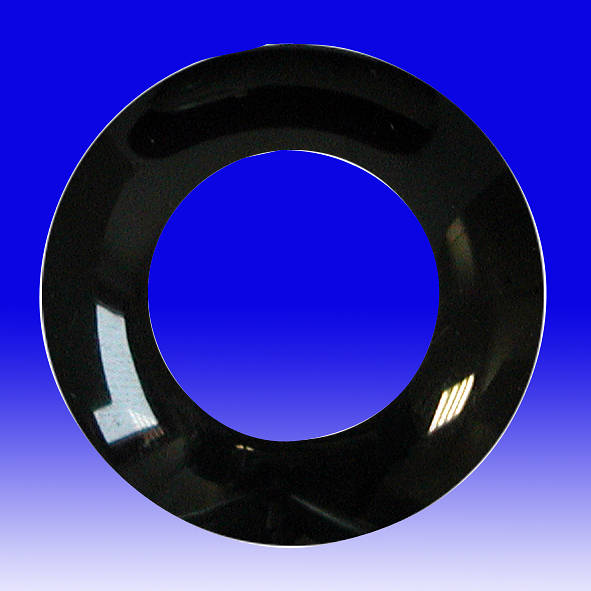

Bezel Std 45mm Diameter
Bezel Small 35mm Diameter
Recess Depth: 28mm

Cut out :
25mm use with small bezel 35mm
34mm if control box is to be fitted through cutout
Then use larger 45mm bezel - included

Mini Occupancy Detector - White
BEG LUXOMAT® PD9 range
Mini Presence detector

Circular detection area and a switching channel with a powerful relay
for activating high-powered lamps.

Inspite of small dimensions it switches
all types of light fixtures using high performance relay
with in rush current limitation especially for electronic ballasts.
Settings of photo electric switch and follow-up time at control box
Control fits through hole for sensor part in ceiling

Typical applications:
offices, conference rooms, hospitals,
galleries, nursery schools and homes.

The PD9 1C FC can switch
1000w of incandescent load
500w of fluorescent load.

Click the order code for AccessoriesTechnical: Instructions - 200kb .pdf and Catalogue Sheet 230kb .pdf
Order Code Description Price (ex vat) Price (inc vat) Qty
BE PD91CFCMini Occupancy Detector LUXOMAT® PD9 range - White
EA
36.40
EA
43.68
graphic

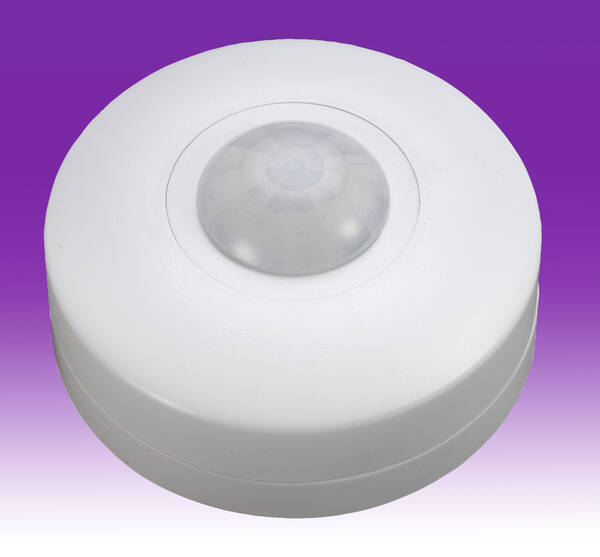

Timeguard 360° Ceiling Occupancy Pir
product photo
Timeguard SLW360E
360° Ceiling Occupancy Pir
Surface Mounting
SLW360E can be wired in parallel to enable any detector to turn ON
all of the lights connected to it (the total wattage capability of the unit must not be exceeded).
Technical: IP Rating Chart and Instructions
Order Code Description Price (ex vat) Price (inc vat) Qty
SM SLW360360° Ceiling Occupancy PIRSpecial Offer )
EAEA 10+
20.8018.85
EAEA 10+
24.9622.62
graphic

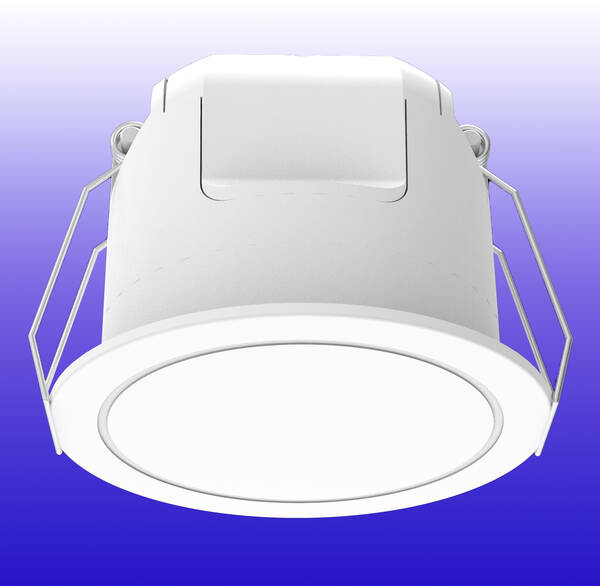

Timeguard 360° Ceiling Occupancy Pir - Flush
product photo
Timeguard SLFM360
360° Ceiling Occupancy Pir
Flush Mounting
SLFM360 can be wired in parallel to enable any detector to turn ON
all of the lights connected to it (the total wattage capability of the unit must not be exceeded).
Technical: IP Rating Chart and Instructions
Order Code Description Price (ex vat) Price (inc vat) Qty
SM SLFM360360° Ceiling Flush Mount PIR SensorSpecial Offer )
EAEA 10+
20.8018.85
EAEA 10+
24.9622.62
graphic
Luxomat Wall PIR Occupancy Switch
product photo
LUXOMAT®
Combined Motion Detector and Acoustic Sensor
Wall Switch with 180° detection area
Replacement for existing wall switches.
BE180R Requires a Neutral wire.
BE180R2W No Neutral wire is needed

The LUXOMAT® Indoor 180-R occupancy detector designed for flush mounting inindoor applications

The 180 utilizes infra red and accoustic sensing technology
to detect the presence and movement of persons
It contains a twilight (lux) sensor a microphone and a timer

The LUXOMAT® Indoor 180 is an automatic switching device
which operates on the principle of infrared technology.
It continuously measures the ambient temperature and the ambient light level and compares it
with the infrared radiation emitted from any moving form which enters its detection zone.
Any differential results in automatic switching, provided the light level is beyond a preset light level.

Contrary to other motion detectors which reacts to moving heat sources only,
with the LUXOMAT® Indoor 180 you will not be left in the dark unless there is no more motion
because through a combination with an acoustic sensor it reacts additionally to noises.

Acoustic function
As long as the acoustic sensor receives noises e.g.
by speech or music the LUXOMAT® Indoor 180 remains switched-on
even when there are no more motions – the light stays on.
Every noise and every motion retriggers the unit again for the period of preselected time.
Unless there is no more motion and no more noise the LUXOMAT® Indoor 180 switches the light off automatically.
Click the order code for Boxes and GrommetsTechnical: BE180R Instructions - 324kb .pdf and BE180R2W Instructions - 337kb .pdf
Order Code Description Price (ex vat) Price (inc vat) Qty
BE 180R2WLuxomat Wall PIR Occupancy Switch - 2 WireNew Just Arrived )
EA
39.00
EA
46.80
graphic
BE 180RLuxomat Wall PIR Occupancy Switch - 3 WireNew Just Arrived )
EA
35.00
EA
42.00
graphic
Danlers Wall PIR Occupancy Switch
product photo
Danlers
Wall PIR Occupancy Switch
Detection Zone: 120°
Wall Mounted PIR Switch

Simply replaces existing wall switch - No Neutral wire is needed.
It fits into a plaster depth (16mm) wall box.

Has a manual override off switch on the front of the plate.
Click the order code for Accessories, Boxes and GrommetsTechnical: Occupancy Switch Selection, Installation Notes and Detailed Spec
Order Code Description Price (ex vat) Price (inc vat) Qty
DN WAPIRWall PIR Occupancy Switch - 2 Wire
EA
48.25
EA
57.90
graphic

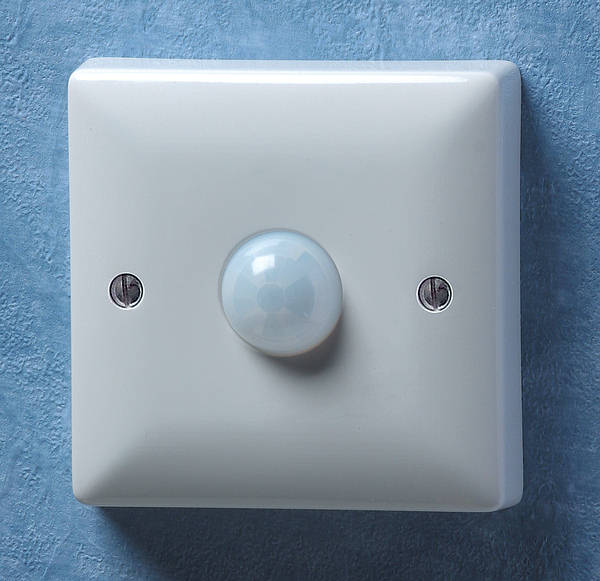

Danlers Wall PIR Occupancy Switch
product photo
Danlers
Wall PIR Occupancy Switch
Detection Zone: 120°
Wall Mounted PIR Switch

Direct replacements for existing wall switches.
Requires a Neutral wire.
Click the order code for Boxes and GrommetsTechnical: Occupancy Switch Selection, Installation Notes and Detailed Spec
Order Code Description Price (ex vat) Price (inc vat) Qty
DN WACEPIRWall or Ceiling Occupancy Switch - 3 Wire
EA
37.90
EA
45.48
graphic

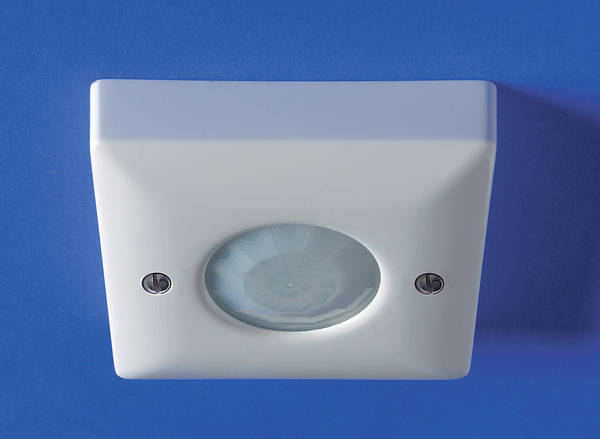

Danlers Ceiling Surface Plug-in Occupancy Switch
product photo
Danlers
Ceiling Surface Plug-in Occupancy Switch
Click the order code for Boxes and GrommetsTechnical: Occupancy Switch Selection, Installation Notes and Detailed Spec
Order Code Description Price (ex vat) Price (inc vat) Qty
DN CESFPIRCeiling Surface Occupancy Switch - 6 Amps
EA
38.75
EA
46.50
graphic

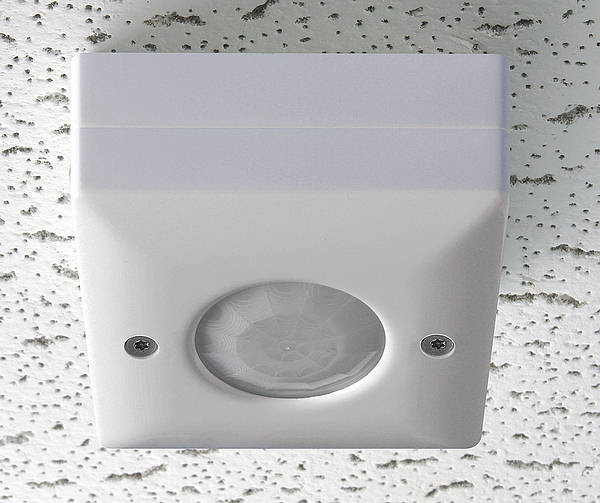

Danlers Ceiling Surface Plug-in Occupancy Switch - Plug In
product photo
Danlers
Ceiling Surface Plug-in Occupancy Switch
Click the order code for Accessories, Boxes and GrommetsTechnical: See each product
Order Code Description Price (ex vat) Price (inc vat) Qty
DN CELOCeiling Surface Plug-in Occupancy Switch - 6 Amps
EA
38.85
EA
46.62
graphic
DN CESOSQSquare Ceiling Socket for Plug-in DANLERS Controls
EA
5.90
EA
7.08
graphic
DN CESORound Ceiling Socket for Plug-in DANLERS Controls
EA
3.90
EA
4.68
graphic

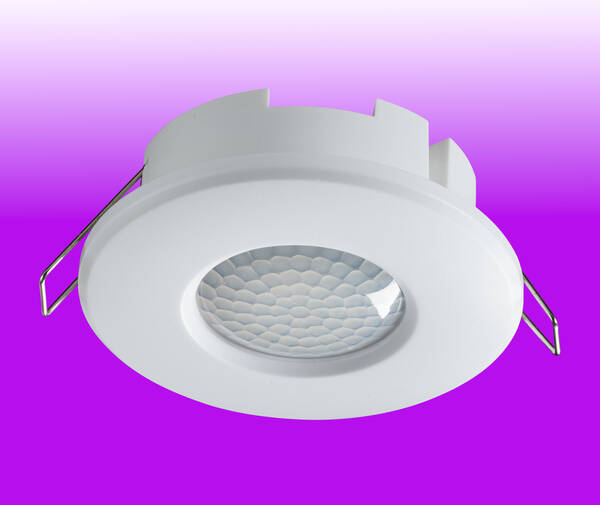

360° Ceiling Flush Mount PIR Occupancy Switch
product photo
Autenco
Ceiling Flush Occupancy Switch
Autenco is specifically designed to be suitable for switching LEDs
ie. it can switch down to 2 watts of lighting load without the inherent 'glowing issue' that occurs with some PIRs.

  • Max Loading:
  • 1000W of Resistive loads
  • 750W of Fluorescent loads
  • 750W of Transformer loads
  • 750W of CFL, LED and 2D lamps
Order Code Description Price (ex vat) Price (inc vat) Qty
TL PIRFL360° Ceiling Flush Mount PIR Occupancy Switch
EAEA 3+
19.9517.90
EAEA 3+
23.9421.48
graphic
Danlers PIR Occupancy Switch Ceiling Switch
product photo
Danlers
PIR Occupancy Switch Ceiling Switch
Technical: See each product
Order Code Description Price (ex vat) Price (inc vat) Qty
DN CEFLPIRDanlers PIR Occupancy Ceiling Switch - 6 Amps
EA
38.75
EA
46.50
graphic
DN CEFLPIR10ADanlers PIR Occupancy Ceiling Switch - 10 Amps
EA
43.50
EA
52.20
graphic
DN CEFLPIRSDanlers PIR Occupancy Ceiling Switch - Sealed Bathroom Version
EA
40.60
EA
48.72
graphic

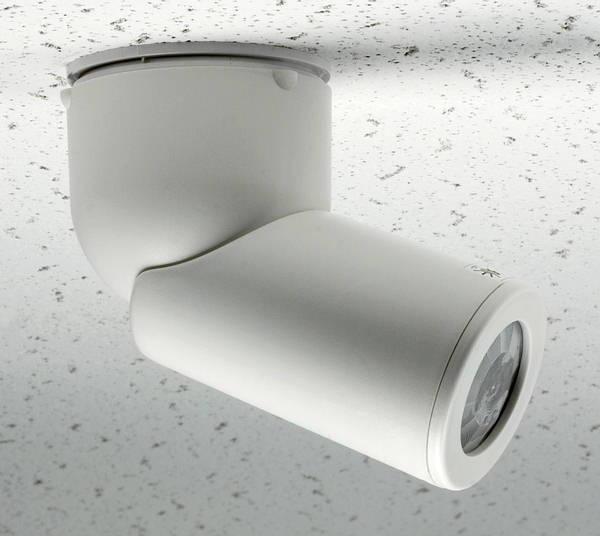

Danlers Ceiling Plug-in Occupancy Switch - Directional
product photo
Danlers
Ceiling Directional Plug-in Occupancy Switch
Click the order code for Accessories, Boxes and GrommetsTechnical: See each product
Order Code Description Price (ex vat) Price (inc vat) Qty
DN CEDR6PCeiling Directional Plug-in PIR Occupancy Switch
EA
45.30
EA
54.36
graphic
DN CEDR6PLRCeiling Directional Plug-in PIR Occupancy Switch - Long Range
EA
48.80
EA
58.56
graphic
DN CESORound Ceiling Socket for Plug-in DANLERS Controls
EA
3.90
EA
4.68
graphic
DN CESOSQSquare Ceiling Socket for Plug-in DANLERS Controls
EA
5.90
EA
7.08
graphic
