HD View - 4, 8 & 16 Channel HD DVR- Network Enabled

HD View
4, 8 & 16 Channel HD DVR- Network Enabled
8 & 16 Channel 720p High Definition digital video recorder Hard Drive
and network connectivity for remote viewing using iPhone or Android smart phones.
The perfect high definition digital video recorder solution for a professional 4, 8 & 16 channel CCTV system.

The modern compact design houses the latest AHD (analogue high definition) chipset, which produces superior image quality.
Combined with a user friendly setup menu, makes this DVR an ideal choice

Technical:

HDV Range Catalogue 1.7Mb pdf 16R Instructions 1.7Mb pdf 4R & 8R Instructions 1.6Mb pdf

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity

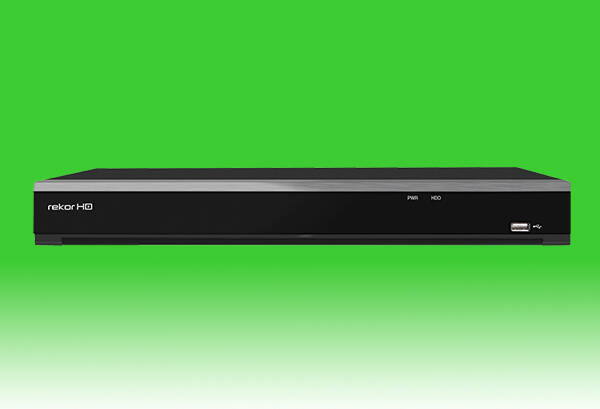

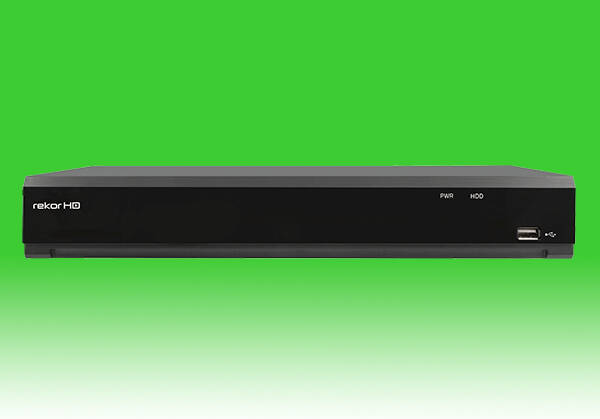

4, 8, 16 Channel 1080p DVR USB Back Up

4, 8, 16 Channel 1080p DVR
USB Back Up
Our new range of “4 in 1” analogue HD DVRs have the option to record in HD1080p at 12.5FPS half real time or HD720p at 25FPS full real time recording.
Available in 4, 8 & 16 channel units with options available on the size of the built in HDD (Hard Disk Drive) all of these DVRs can be viewed remotely via either a DDNS or cloud P2P account (which are both free of charge to create) once they have been connected to the internet.
These units are pre-set to work with HD-TVI and standard definition CVBS cameras, though there is an option to change to HD-CVI or AHD mode if required.

These DVRs are supplied with one HDMI, VGA and BNC video output channel allowing you some flexibility with the choice of monitor you use to view the DVR on.
They also have two USB ports, one for using the free of charge USB mouse supplied with the unit.
The second is for use when backing up / downloading footage from the DVR to a USB pen stick.

Finally these DVRs also allow you the option of using HD-IP CCTV cameras (maximum 2.0MP) alongside your regular analogue cameras. HD-IP cameras can only be connected via the network (as there are no actual HD-IP camera inputs) and have to be compatible with certain protocols. Each DVR also supports a maximum amount of HD-IP cameras starting with one for four channel DVRs and two for both the eight and sixteen channel units.

Technical:

TSDVR Manual - 12Mb pdf TSDVR16 Data Sheet - 612kb pdf TSDVR4/8 Data Sheet - 611kb pdf

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity

Professional - LCD CCTV Monitors

Professional
LCD CCTV Monitors
The new range of monitors by ESP are designed to provide
security system operators with high performance, durable display solutions.

In a sleek black design, the energy efficient wide screen LED panel
is available in a range of sizes: 15.6”, 18.5”, 21.5” and 23.6” making them suitable for a wide variety of applications.

All include HDMI, VGA, BNC and S-VIDEO video inputs as well as a video loop out via BNC.

In addition, all monitors in the range are able to display in high definition for crisp imaging
and include base stand, power, HDMI, audio & VGA cables

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
product photo

TS MON15

15 Inch LED CCTV Monitor

EA

£118.80

EA

£142.56

product photo

TS MON18

18 Inch LED CCTV Monitor

EA

£153.35

EA

£184.02

product photo

TS MON21

21 Inch LED CCTV Monitor

EA

£189.00

EA

£226.80

product photo

TS MON23

23 Inch LED CCTV Monitor

EA

£214.90

EA

£257.88
