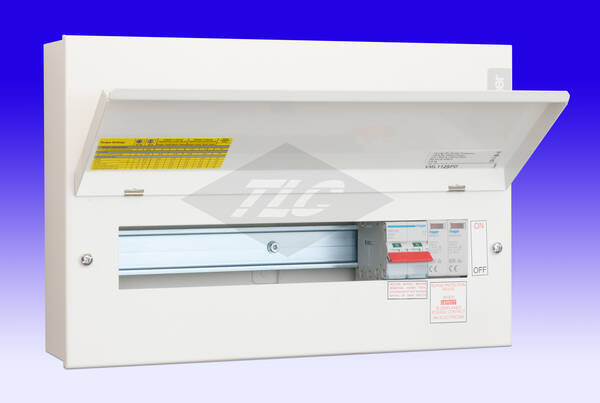

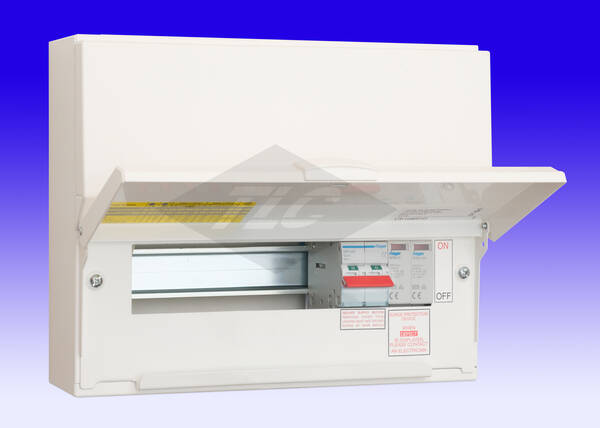

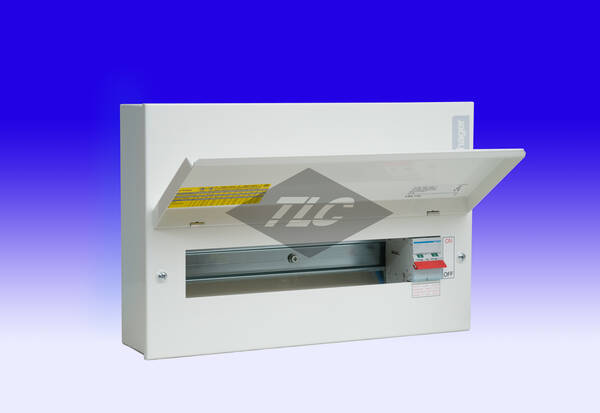

Hager Design Evo Metal Consumer Unit c/w 100A Main Switch
Loading …
See product for Accessories, AFDDs, Cable Entry Glands, MCBs, RCBOs, SPD, Tails, Timer and Trunking
Hager - Design Evo

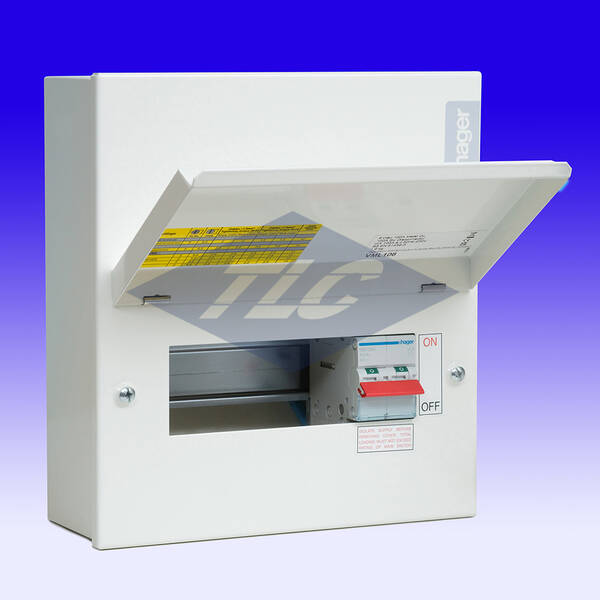

Metal Consumer Unit c/w 100A Main Switch
Metal Consumer Unit c/w 100A Main Switch
Design Evo is the enhanced board for use in applications where the consumer unit is located in a living area of the dwelling.
The single row range of consumer units with a 116A rated current (InA) have been designed for installations where the upstream overcurrent protection device (OCPD) is rated at 100A or below, the 116A (InA) is where the consumer unit can be used with a 16A generation set when the bi-directional RCBO can be installed at the far end of the busbar.
The single row range of consumer units with a 116A rated current (InA) have been designed for installations where the upstream overcurrent protection device (OCPD) is rated at 100A or below, the 116A (InA) is where the consumer unit can be used with a 16A generation set when the bi-directional RCBO can be installed at the far end of the busbar.
- Cable clamp secures supply cables on entry to main incoming device preventing any movement being transmitted through meter tails to device
- Round cable entry points top, bottom and sides
- Rear knockouts for ease of cable entry - cable protector plate provided
- Rigid top wall enhances rigidity to prevent distortion when removing knockouts
- Locate and hold cover allows use of both hands whilst fixing cover
- Front cover retained screws prevents loss during installation
- Full metal DIN rail - secure and stable attachment of devices
- Quick release clip on MCB/RCBO allows removal of MCB/RCBO with busbar still in place
- Optimised cabling space - DIN rail position allows maximum cabling space
- Top mounted terminal rail makes the wiring of the neutral and earth connections neat and simple
- Torque settings displayed inside front cover so they’re easily accessible by the electrician
- Single row references have a 116A InA
| See product for Accessories, AFDDs, Cable Entry Glands, MCBs, RCBOs, SPD, Tails, Timer and Trunking |
Technical:Datasheet - 320kb pdf Instructions - 3.5mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

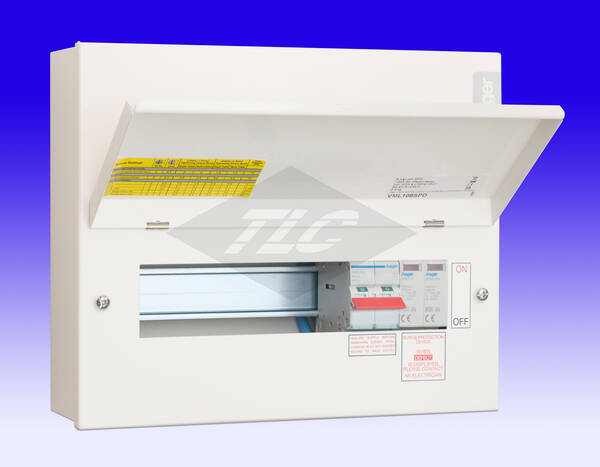

Hager Design Evo Metal Consumer Unit c/w 100A Main Switch + T2 SPD
Loading …
See product for Accessories, AFDDs, Cable Entry Glands, MCBs, RCBOs, Tails, Timer and Trunking
Hager - Design Evo
Metal Consumer Unit c/w 100A Main Switch + T2 SPD
Metal Consumer Unit c/w 100A Main Switch + T2 SPD
Design Evo is the enhanced board for use in applications where the consumer unit is located in a living area of the dwelling.
Protection against transient over voltages, provided by factory fitted Type 2 SPD.
Protection against transient over voltages, provided by factory fitted Type 2 SPD.
- Type 2 surge protection factory fitted
- Cable clamp secures supply cables on entry to main incoming device preventing any movement being transmitted through meter tails to device
- Round cable entry points top, bottom and sides
- Rear knockouts for ease of cable entry - cable protector plate provided
- Rigid top wall enhances rigidity to prevent distortion when removing knockouts
- Locate and hold cover allows use of both hands whilst fixing cover
- Front cover retained screws prevents loss during installation
- Full metal DIN rail - secure and stable attachment of devices
- Quick release clip on MCB/RCBO allows removal of MCB/RCBO with busbar still in place
- Optimised cabling space - DIN rail position allows maximum cabling space
- Top mounted terminal rail makes the wiring of the neutral and earth connections neat and simple
- Torque settings displayed inside front cover so they’re easily accessible by the electrician
| See product for Accessories, AFDDs, Cable Entry Glands, MCBs, RCBOs, Tails, Timer and Trunking |
Technical:Datasheet - 21.5mb pdf Instructions - 3.5mb pdf Datasheet - 390kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|

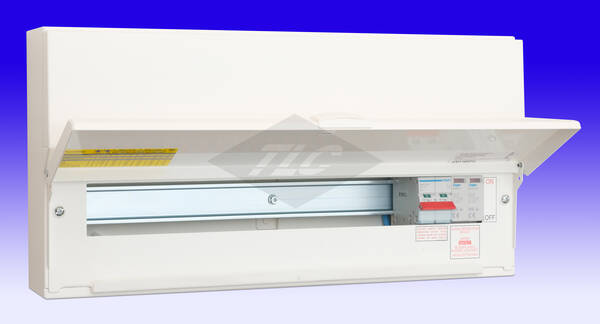

Hager Design Evo Metal Flush Consumer Unit c/w 100A Main Switch + T2 SPD
Loading …
See product for Accessories, AFDDs, Cable Entry Glands, MCBs, RCBOs, Tails and Timer
Hager - Design Evo

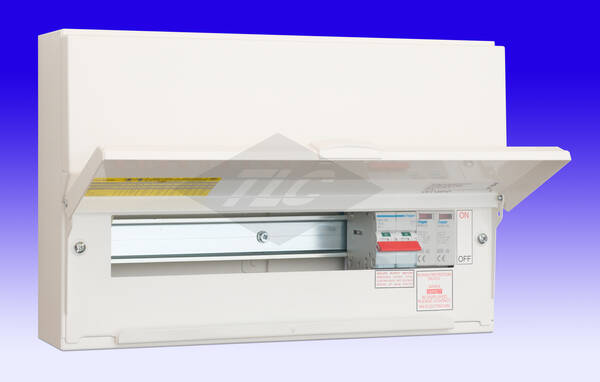

Metal Flush Consumer Unit c/w 100A Main Switch + T2 SPD
Metal Flush Consumer Unit c/w 100A Main Switch + T2 SPD
Design Evo is the enhanced board for use in applications where the consumer unit is located in a living area of the dwelling.
The single row range of consumer units with a 116A rated current (InA) have been designed for installations where the upstream overcurrent protection device (OCPD) is rated at 100A or below, the 116A (InA) is where the consumer unit can be used with a 16A generation set when the bi-directional RCBO can be installed at the far end of the busbar.
Protection against transient over voltages, provided by factory fitted Type 2 SPD.
The single row range of consumer units with a 116A rated current (InA) have been designed for installations where the upstream overcurrent protection device (OCPD) is rated at 100A or below, the 116A (InA) is where the consumer unit can be used with a 16A generation set when the bi-directional RCBO can be installed at the far end of the busbar.
Protection against transient over voltages, provided by factory fitted Type 2 SPD.
- Type 2 surge protection factory fitted
- Cable clamp secures supply cables on entry to main incoming device preventing any movement being transmitted through meter tails to device
- Rear knockouts for ease of cable entry - cable protector plate provided
- Locate and hold cover allows use of both hands whilst fixing cover
- Front cover retained screws prevents loss during installation
- Full metal DIN rail - secure and stable attachment of devices
- Quick release clip on MCB/RCBO allows removal of MCB/RCBO with busbar still in place
- Optimised cabling space - DIN rail position allows maximum cabling space
- Top mounted terminal rail makes the wiring of the neutral and earth connections neat and simple
- Torque settings displayed inside front cover so they’re easily accessible by the electrician
- Single row references have a 116A InA
| See product for Accessories, AFDDs, Cable Entry Glands, MCBs, RCBOs, Tails and Timer |
Technical:Instructions - 3.55mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

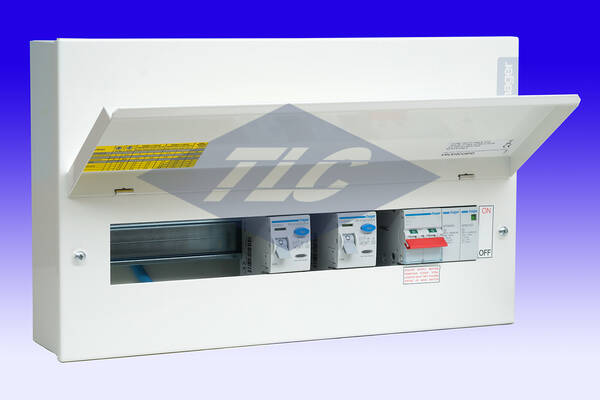

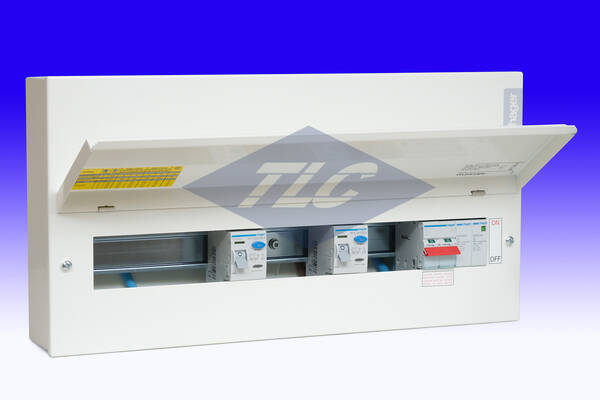

Hager Design Evo High Integrity Metal Consumer Unit c/w 2 RCDs (Type A) + T2 SPD
Loading …
See product for Accessories, AFDDs, Cable Entry Glands, MCBs, RCBOs, Tails, Timer and Trunking
Hager - Design Evo
High Integrity Metal Consumer Unit c/w 2 RCDs (Type A) + T2 SPD
High Integrity Metal Consumer Unit c/w 2 RCDs (Type A) + T2 SPD
The Design Evo range of consumer units with a 100A rated current (InA) have been designed for any residential applications where the upstream overcurrent protective device such as a cut-out fuse is less than or equal to 100A. Design Evo is the board for use in applications where the consumer unit is located in a living area of the dwelling and allows compliance with BS 7671:2022.
- Factory fitted Type 2 surge protection
- 100A RCCBs allow the board to be installed with upstream overload protection offered by any rating of cut out fuse (60, 80, 100A) without the need to calculate the sum of the downstream devices to establish overload requirements
- Type A RCCBs for general purpose circuits and circuits containing equipment incorporating electronic components
- Cable clamp secures supply cables on entry to main incoming device preventing any movement being transmitted through meter tails to device
- High integrity layout allows RCBOs (7 ways) to be fitted separate to the RCCBs for reduction of nuisance tripping on essential circuits and dividing earth leakage across multiple RCDs
- Round cable entry points top, bottom and sides
- Rear knockouts for ease of cable entry – cable protector plate (VM02CE) provided
- Rigid top wall enhances rigidity to prevent distortion when removing knockouts
- Front cover retained screws prevents loss during installation
- Locate and hold cover allows use of both hands whilst fitting cover
- Full metal DIN rail – secure and stable attachment of devices
- Quick release clip on MCB/RCBO allows fitting and removal of device with busbar in place
- Optimised cabling space – DIN rail positioned to provide maximum space at top of board
- Top mounted terminal rail makes the wiring of the neutral and earth connections neat and simple
- Torque settings displayed inside front cover – easily accessible to electrician during installation and maintenance
| See product for Accessories, AFDDs, Cable Entry Glands, MCBs, RCBOs, Tails, Timer and Trunking |
Technical:Datasheet - 360kb pdf Instructions - 3.5mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

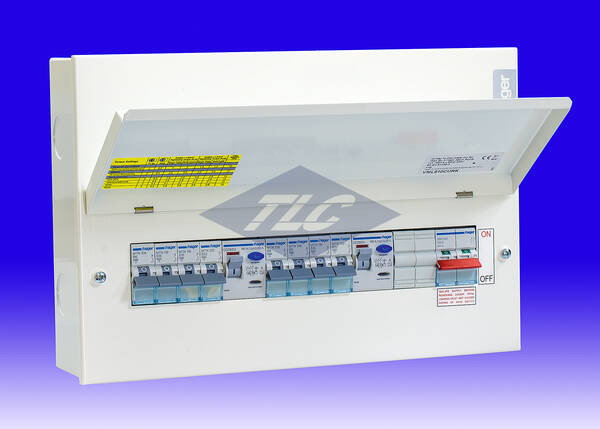

Hager Design Evo Metal Consumer Unit c/w 63A Type A RCD
Loading …
See product for Accessories, AFDDs, Cable Entry Glands, MCBs, SPD, Tails, Timer and Trunking
Hager - Design Evo
Metal Consumer Unit c/w 63A Type A RCD
Metal Consumer Unit c/w 63A Type A RCD
Design Evo is the board for use in applications where the consumer unit is located in a living area of the dwelling.
Allows compliance with BS 7671:2018.
Allows compliance with BS 7671:2018.
- Type A RCCBs for general purpose circuits and circuits containing equipment incorporating electronic components
- Cable clamp secures supply cables on entry to main incoming device preventing any movement being transmitted through meter tails to device
- Round cable entry points top, bottom and sides
- Rear knockouts for ease of cable entry – cable protector plate (VM02CE) provided
- Rigid top wall enhances rigidity to prevent distortion when removing knockouts
- Front cover retained screws prevents loss during installation
- Locate and hold cover allows use of both hands whilst fitting cover
- Full metal DIN rail – secure and stable attachment of devices
- Quick release clip on MCB allows fitting and removal of device with busbar in place
- Optimised cabling space – DIN rail positioned to provide maximum space at top of board
- Top mounted terminal rail makes the wiring of the neutral and earth connections neat and simple
- Torque settings displayed inside front cover – easily accessible to electrician during installation and maintenance
| See product for Accessories, AFDDs, Cable Entry Glands, MCBs, SPD, Tails, Timer and Trunking |
Technical:Instructions - 3.5mb pdf Datasheet - 300kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
