Classic Die Cast Downlights

product photo
Brass


Supplied less lamp

requires 12v Transformer


Min depth: 115mm
Hole dia: 70mm
Rim dia: 80mm
Classic Die Cast Downlights

12 volt - 50 watt
High quality Cast Downlights

Uses 50 mm 12V Dichroic lamp 50W max

Super Slim Profile with Flat Edge just 2mm thick



Fire and Loft Covers (optional)
Meets new building regs
Fire and Loft Covers

  • Quick release lamp
    ( No Spring Clips to fiddle with )
  • Bridge and connector included
  • High quality porcelain lampholder with silicone flex
  • Ceramic lamp holder for use with 50mm 12v Dichroic lamps 50W max pre-wired with 150mm low voltage flex
See product for Accessories, LV Lamps and Transformers

Technical:

Low Voltage Cable Size Calculator

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
product photo

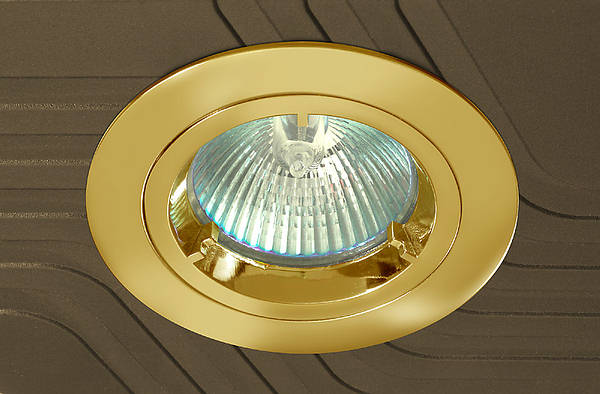

CR D50B

12v 50w Classic Cast Downlight - Brass

EA

EA 6+

£3.80

£3.30

EA

EA 6+

£4.56

£3.96

product photo

CR D50C

12v 50w Classic Cast Downlight - Chrome

EA

EA 6+

£3.80

£3.30

EA

EA 6+

£4.56

£3.96

product photo

CR D50SC

12v 50w Classic Cast Downlight - Satin Chrome

EA

EA 6+

£3.80

£3.30

EA

EA 6+

£4.56

£3.96

product photo

CR D50W

12v 50w Classic Cast Downlight - White

EA

EA 6+

£3.80

£3.30

EA

EA 6+

£4.56

£3.96

Fire Rated - 12v 50w Cast Downlights

product photo
Supplied less lamp

requires 12v Transformer

Dia: 87mm
Hole Size: 72mm
Void: 108mm
Fire Rated ( 90 Minutes ) and Acoustic Compliant Downlighters
12v 50w Downlights
Classic Die Cast Fittings

Fire and Acoustic compliant recessed downlighters have been designed
to meet the stringent legal requirements of the Building Regulations Parts B&E.

The recent addition of Part E to the Building Regulations has presented the House Builder with
the problem of how to maintain acoustic integrity yet allow the installation of downlighters,
which by their very nature, must puncture the ceiling lining, which affords acoustic integrity.

The design provides a sealed barrier between the underside of the ceiling and its associated void area.
This clever design also incorporates intumescent materials which ensure the luminaire can withstand the onslaught of fire in accordance with the requirements of Part B of the Building regulations.

Thus from one simple to install luminaire the both regulations can be complied with, negating the need for separate fire hoods or a segregated ceiling void as requested by The Standard Robust Details.

  • Designed for use with Halogen lamps
    with Aluminium Reflector
    Supplied Less Lamp
See product for Accessories, Coolfit Lamps, LV Lamps and Transformers

Technical:

Detailed Fire Test Report - 2Mb Pdf IP Rating Chart

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
product photo

FR CL02B

Fire Rated 12v 50w Fixed Downlight - Brass Special Offer

EA

£5.95

EA

£7.14

product photo

FR CL02C

Fire Rated 12v 50w Fixed Downlight - Chrome Special Offer

EA

£5.95

EA

£7.14

product photo

FR CL02CBR

Fire Rated 12v 50w Fixed Downlight - Brushed Chrome Special Offer

EA

£5.95

EA

£7.14

product photo

FR CL02W

Fire Rated 12v 50w Fixed Downlight - White Special Offer

EA

£5.95

EA

£7.14
