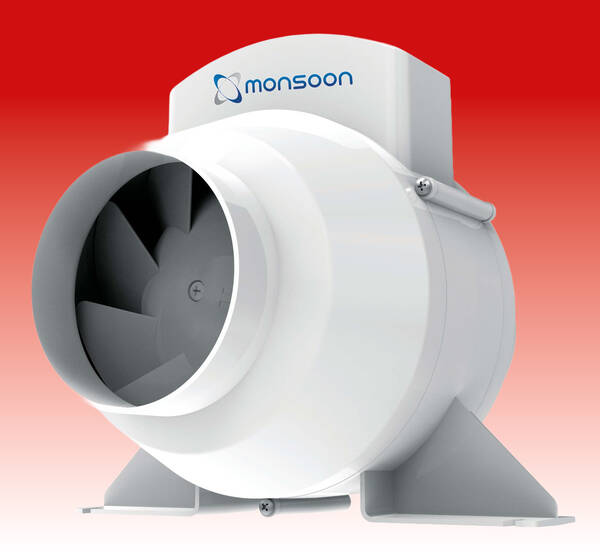

4"/100mm Monsoon Inline Mixed Flow Fan c/w Timer
Loading …
NV UMD100TA

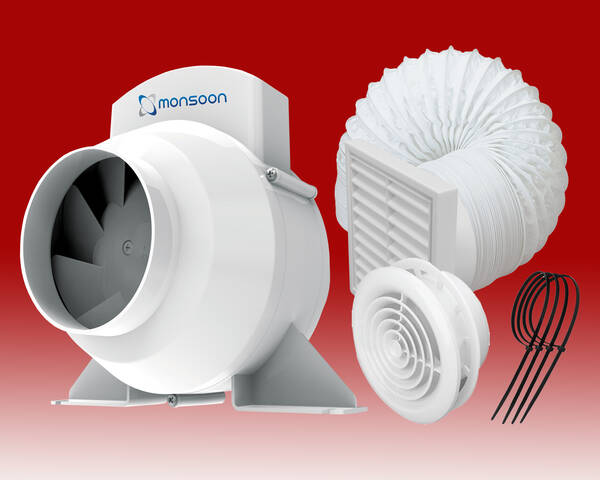

NV UMDTK

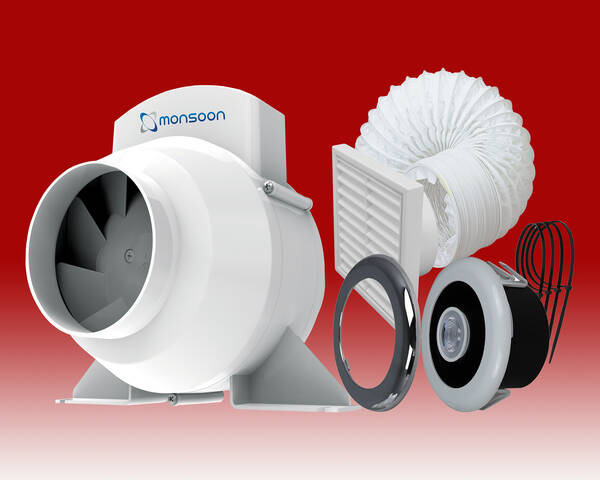

NV UMDTKLED
See product for Cable, 3 Pole Isolator Switches and Accessories
Monsoon
4"/100mm Inline Mixed Flow Fan c/w Timer
4"/100mm Inline Mixed Flow Fan c/w Timer
The UMD Domestic range can be used for exhaust and supply ventilation systems that require high pressure, powerful airflow and low noise levels. The UMD range can be used with rigid and flexible ducting, and are the ideal solution for air exhaust systems for rooms with high humidity such as bathrooms and kitchens.
- High performance and low power consumption
- Two speed motor with overrun timer (2 to 30 minutes)
- Maximum airflow: 198 m³/hr
- Max. sound pressure level: 32 dB(A) @ 3m
- Motor equipped with Standard Thermal Overload Protection
- IPX4 rated
- Quick and easy installation
- Made from 89% recycled plastic
- See each product
| See product for Cable, 3 Pole Isolator Switches and Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

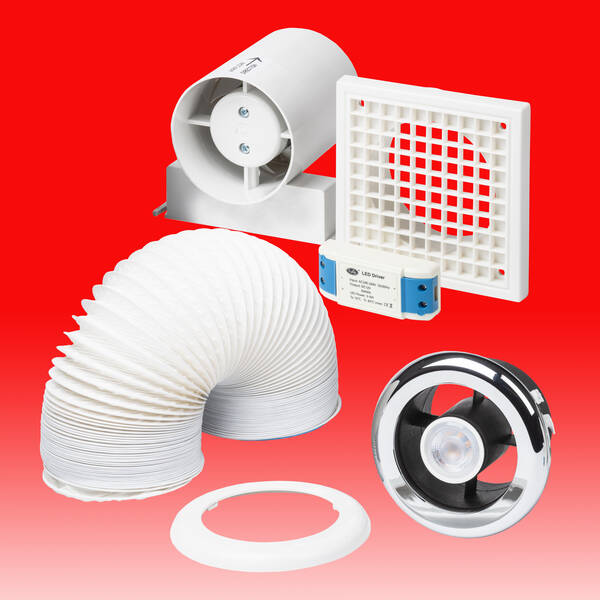

Monsoon - 100mm (4 Inch) Shower Timer Fan and LED Light Kit
Loading …
NV SFK100TLED
The Monsoon LED Showerlite is available in boxed carton packaging.
Each pack is supplied complete with fan, Showerlite unit, LED Driver, one length of PVC flexible ducting, external wall grille, fixing screws, plugs and straps.
See product for Cable and 3 Pole Isolator Switches
Monsoon
100mm (4 Inch) Shower Timer Fan and LED Light Kit
100mm (4 Inch) Shower Timer Fan and LED Light Kit
The MONSOON LED Shower light is a distinctive shower light which is incorporated into a circular diffuser,
suitable for showers and bathrooms.
Our 100mm Part L compliant shower light fan now comes with a 3W LED lamp.
Our LED lamp consumes 90% less power than the standard dichroic lamp!
The Monsoon LED Showerlite can be used within the splash area of the shower or bath and is powered by a SELV LED Driver.
Part F and L compliant with a specific fan power down to 0.43 W/l/s.
suitable for showers and bathrooms.
Our 100mm Part L compliant shower light fan now comes with a 3W LED lamp.
Our LED lamp consumes 90% less power than the standard dichroic lamp!
The Monsoon LED Showerlite can be used within the splash area of the shower or bath and is powered by a SELV LED Driver.
Part F and L compliant with a specific fan power down to 0.43 W/l/s.
- Fan Size: 4” (100mm)
- Maximum pressure: 20 p.a.
- Fan speed: 2400 r.p.m
- Sound volume: 41 dB(A)
- Maximum operating temperature: 40°C
- Maximum airflow: 24 l/s
- Extract rate of 105m³/hr
- Power consumption: 10.4W
-
Installation:
Designed to be ceiling mounted through 112mm (4") diameter flexible ducting or rigid pipes - Electrical:
12 volt DC 3W MR16 LED lamp
Powered by an LED Driver
Input, AC. Output - 12 volt DC. 1A - Kit includes external grille, 1.5m flexible ducting, clips and white & chrome facias
- Exceeds Building Regulations for toilet and bathrooms
- Quick and easy installation
The Monsoon LED Showerlite is available in boxed carton packaging.
Each pack is supplied complete with fan, Showerlite unit, LED Driver, one length of PVC flexible ducting, external wall grille, fixing screws, plugs and straps.
| See product for Cable and 3 Pole Isolator Switches |
Technical:Instructions 818kb Instructions 2.1mb |
|
