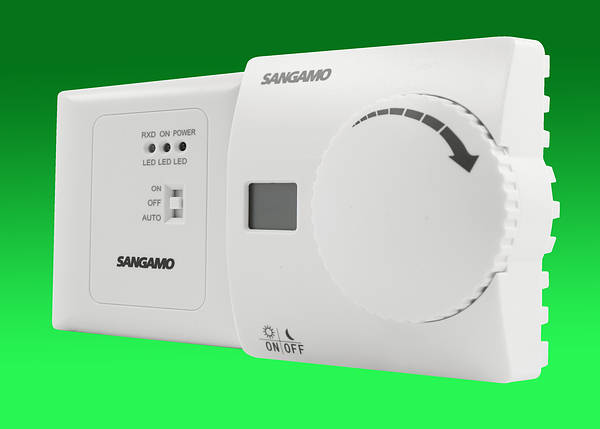

Sangamo Wireless Digital Room Thermostat
Loading …
SG RSTAT3RF
Width: 86mm.
Height: 86mm.
Depth: 55mm.
(when mounted).
Transmitter Dimensions:
Width: 86mm.
Height: 86mm.
Depth: 32mm.
See product for Replacement Batteries
Sangamo
Choice RSTAT3 RF
Wireless Digital Room Thermostat
Choice RSTAT3 RF
Wireless Digital Room Thermostat
Designed to provide simple automatic control of your heating systems, by sensing the air
temperature and switching on the heating when the air temperature falls below the thermostat
setting and switching off when temperature is reached.
LCD showing room temperature.
Comfort/Economy or ON/OFF modes.
Frost protection.
Battery Powered (with battery low indication).
Large easy to adjust dial.
temperature and switching on the heating when the air temperature falls below the thermostat
setting and switching off when temperature is reached.
LCD showing room temperature.
Comfort/Economy or ON/OFF modes.
Frost protection.
Battery Powered (with battery low indication).
Large easy to adjust dial.
-
Transmitter:
Power Supply: 2xAA 1.5V batteries (supplied)
Battery Lifespan: 1 year.
Temperature Adjustment Range: 5-30°C.
Temperature Display Range, Scale: 3-51°C, 1°C
Temperature Frost Protection: 5°C (non adjustable)
Switching Differential : +/-1°C
Dimensions : 86 x 86 x 32mm
Transmission Frequency : 433Mhz.
Transmission Distance : 80m open, 30m indoors.
Mounting Method : Wall/Surface.
-
Receiver:
Power supply: 230Vac, 50Hz
Contact Rating: 16A, 250Vac (Volt Free contact)
Insulation class: 2
Flexible wire size: 1.5mm2
Rigid wire size: 1.5mm2
Mounting: Wall using supplied backbox
Transmitter and Receiver
Operating Temperature: 0-50°C
Storage Temperature: 10-60°C
Protection Rating: IP21.
Width: 86mm.
Height: 86mm.
Depth: 55mm.
(when mounted).
Transmitter Dimensions:
Width: 86mm.
Height: 86mm.
Depth: 32mm.
| See product for Replacement Batteries |
Technical:Sangamo Brochure Datasheet RSTAT3RF Date Sheet - 216kb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

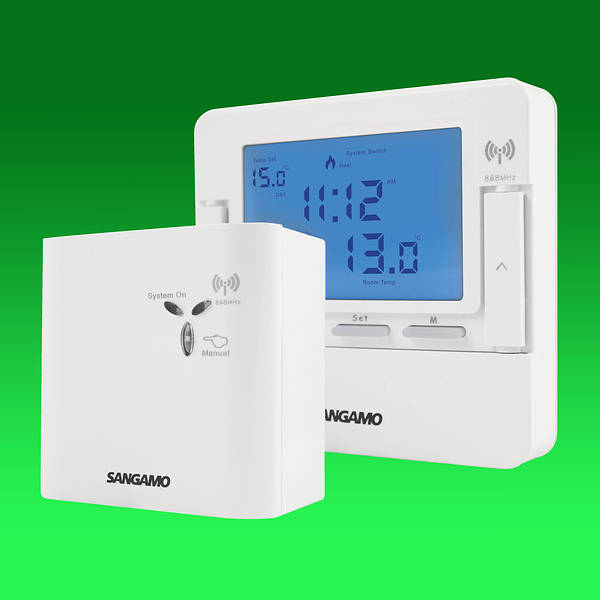

Sangamo Digital Wireless Programmable Room Thermostat
Loading …
SG RSTAT5RF
Width: 88mm.
Height: 88mm.
Depth: 39.4mm.
Transmitter Dimensions:
Width: 110mm.
Height: 104mm.
Depth: 21.5mm.
See product for Replacement Batteries
Sangamo
Choice RSTAT5 RF
Digital Wireless Programmable
Room Thermostat
Choice RSTAT5 RF
Digital Wireless Programmable
Room Thermostat
The Choice RSTAT5 RF is a digital, radio operated, programmable
room thermostat with wall mounted receiver and is designed to provide
flexible time and temperature control to your heating system boiler enabling
you to achieve the desired comfort in the home and minimise your energy costs.
The RSTAT5 RF is free standing so can be carried from room to room
therefore only controlling the temperature of the room you are in at the time.
24 or 7 day programmable.
6 time/temperature events per day.
Default adjustable program.
Permanent hold temperature.
Timed hold temperature.
Temporary temperature override.
Automatic Summer/Winter time change.
Low battery voltage indication.
Button press back-light operation.
room thermostat with wall mounted receiver and is designed to provide
flexible time and temperature control to your heating system boiler enabling
you to achieve the desired comfort in the home and minimise your energy costs.
The RSTAT5 RF is free standing so can be carried from room to room
therefore only controlling the temperature of the room you are in at the time.
24 or 7 day programmable.
6 time/temperature events per day.
Default adjustable program.
Permanent hold temperature.
Timed hold temperature.
Temporary temperature override.
Automatic Summer/Winter time change.
Low battery voltage indication.
Button press back-light operation.
-
Transmitter:
Power supply: 4 x AAA batteries (included)
Battery lifespan: 1 year
Temperature display range: 5-35°C (increment 0.1)
Temperature control range: 0- 50°C (increment 0.5)
Program time increment: 10 minutes
Temperature accuracy: +/-1°C
Switching differential: +/-0.5°C or +/-1.0°C selectable
Operating temperature: 0 - 50°C
Clock accuracy: <1sec / day
Protection rating: IP30
Transmission frequency: 433.92Mhz
Transmission distance: 80m open, 30m indoors
Mounting: Wall or free standing using table stand.
-
Receiver:
Power supply: 230Vac, 50Hz
Contact rating: 16A, 250Vac(Volt Free contact)
Insulation class: 2
Flexible wire size: 0.5-1.5mm
Rigid wire size: 0.5-2.5mm
Wall mounting: Industry standard wall-plate
Complies with: EN60730-1, EN60730-2-7, EN60730-2-11.
Width: 88mm.
Height: 88mm.
Depth: 39.4mm.
Transmitter Dimensions:
Width: 110mm.
Height: 104mm.
Depth: 21.5mm.
| See product for Replacement Batteries |
Technical:Sangamo Brochure Datasheet RSTAT5RF Date Sheet - 240kb RSTAT5RF Instructions - 216kb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

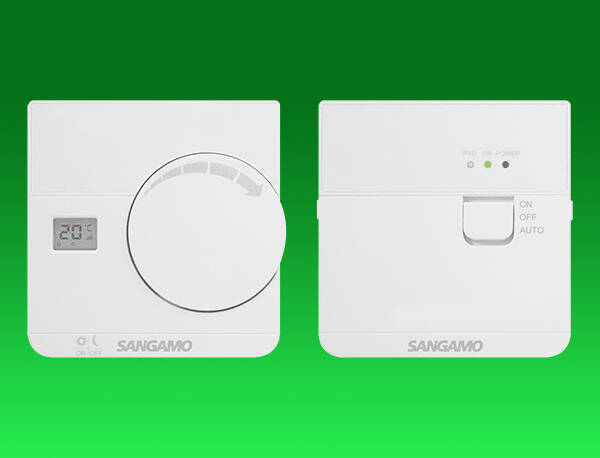

Choice Plus Wireless Electronic Thermostat with Digital Display
Loading …
SG CHPRSTATDRF
See product for Replacement Batteries
Choice Plus
Wireless Electronic Thermostat with Digital Display
Wireless Electronic Thermostat with Digital Display
Wireless Thermostat with Digital Display
- 5°C to 30°C Set Temperature Range
- 0.5°C and 1°C Temperature Swing Adjustment
- 5°C Frost Protection
- Transmission frequency: 433 Mhz (80m Open Field, 30m Indoor Transmission)
- 16A Receiver Contact Rating (Volt Free)
- Energy efficiency; ERP Class 4, 2% value
- Large Dial with Digital Display
- Wireless Communication Between Thermostat and Receiver
- Electronic Sensor for Accurate and Responsive Performance
- TPI (Time Proportional & Integral) Control for Heating Efficiency
- Comfort/Economy or ON/OFF Modes
- Battery Powered with Low Indication Status (Batteries Supplied)
| See product for Replacement Batteries |
Technical:Sangamo Brochure Datasheet Datasheet - 530kb pdf Instructions - 1.75mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

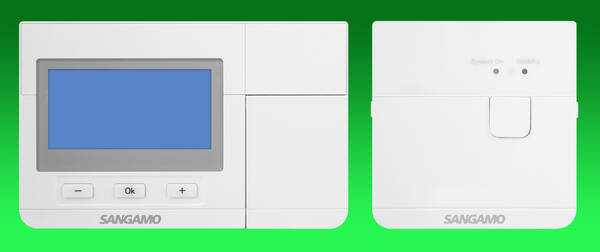

Choice Plus Wireless Electronic Thermostat - Programmable
Loading …
SG CHPRSTATDPRF
See product for Replacement Batteries
Choice Plus
Wireless Electronic Thermostat
Programmable Schedules
Wireless Electronic Thermostat
Programmable Schedules
Wireless Programmable Room Thermostat
- Summer/Winter Time Change
- 5°C to 35°C Set Temperature Range
- 0.5°C and 1°C Temperature Swing Adjustment
- 5°C Frost Protection
- Transmission frequency: 868Mhz (80m Open Field, 30m Indoor Transmission)
- Receiver 16A Switch Rating 240vAC
- Energy efficiency; ERP Class 4, 2% value
- Wireless Communication Between Thermostat and Receiver
- 24 or 7 Day Programmable
- 6 Time/Temperature Events per Day
- Permanent, Timed and Temporary Override Features
- Pre- Programmed Schedule Ready for Use
- Electronic Sensor for Accurate and Responsive Performance
- TPI (Time Proportional & Integral) Control for Heating Efficiency
- Optimum Start/ Delay Start and Optimum Stop for Additional Efficiency
- Battery Powered with Low Indication Status (Batteries Supplied)
| See product for Replacement Batteries |
Technical:Sangamo Brochure Datasheet Datasheet User Instructions |
|
