CA 726A
Securiflex

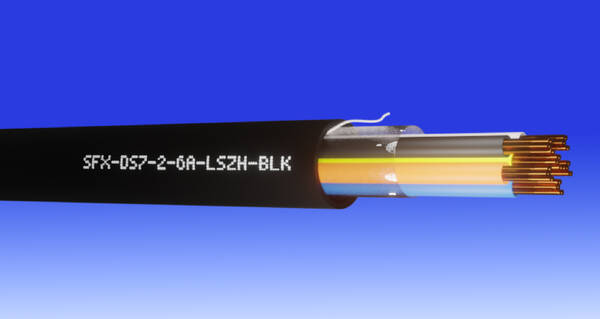

7-2-6A 6 Core 7 x 0.20mm LSZH Unscreened Defence Standard
7-2-6A 6 Core 7 x 0.20mm LSZH Unscreened Defence Standard
For use in applications that require short-ranged high-speed differential signalling, such as local area networks.
Cable Construction: 6 Cores.
Insulation: PVC.
Conductor: Tinned Copper (2 x 20 AWG).
Conductor Diameter (mm): 0.19 ±0.008 x 7.
AWG: 24.
Cable Construction: 6 Cores.
Insulation: PVC.
Conductor: Tinned Copper (2 x 20 AWG).
Conductor Diameter (mm): 0.19 ±0.008 x 7.
AWG: 24.
- Jacket: LSZH.
- Jacket Thickness (mm): 0.650.
- Insulation Thickness (mm): 0.30.
- Insulation Diameter (mm): 1.20 ±0.10.
- Insulation Colours: Red, Blue, Green, Yellow, White & Black.
- Max Conductor DC resistance @ 20°C: <39O/km
- Rated Temperature: 70°C.
- Rated Voltage: 300V.
- Filler: PVC 1.20mm.
- Myral Spiral: >=115%.
- Nylon Rip-Cord: 210D.
- Overall Diameter (mm): 5.10 ±0.20.
- Jacket Colour: Black RAL 9005.
- Sheath Printing: 7-2-6A (PO) (m).
- Reaction to Fire: Eca.
Technical:CA726A Datasheet 200kb - pdf |
|
