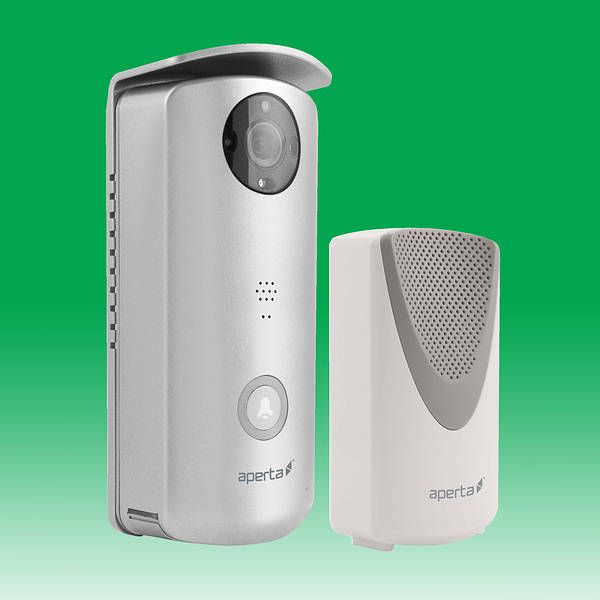

WIFI Video Door Station (Battery Powered) - Silver5060224107768APWIFIDSBP

Loading …

Watch Video
Door Station
Depth 65mm x Width 50mm x Height 140mm
Door Chime
Depth 30mm x Width 60mm x Height 105mm

Batteries included
Door Station uses 4 x AA Batteries (PBLR6)
Door Chime uses 3 x AA Batteries (PBLR6)
WIFI Video Door Station (Battery)
Complete with wire free door chime with a 150m open filed range.

Door station requires a reliable Wi-Fi connection, \
whilst smart phone requires reliable Wi-Fi or 4G signal for best performance.

The user’s smart phone must be connected to the Wi-Fi network for programming.

Battery Power
Due to the nature of battery power the unit will limit functions and features during power
saving mode.
If the user requires the constant use of the door station and full features
it is recommended that a permanent power supply is fitted.*

*Note: For remote door unlock function with 12V/1A current output trigger;
The Door station requires a Hardwired power supply and must be a minimum of 15V 1.5A.
  • Up to 6 months use based on 3 activations per day
  • High Definition colour image clear audio
  • Complete with wireless door chime
  • Infra-red LEDs for low light use
  • Alerts user to visitors via APP
  • Hardwired power optional
  • Contemporary housing
  • Visitor record function
  • Lock release facility
  • Weatherproof IP55
  • Technical Specifications:
  • Sensor Size - 1/3”
  • Lens - Fixed 2.1mm
  • Resolution - 720p
  • Audio - Full Duplex
  • Memory - 8GB Micro SD Card (Included)
  • Sensitivity - 0Lux (IR ON) / 0.5Lux (normal)
  • IR LED - 3 Pcs
  • IR distance - <2 Meters
  • Power - DC 12V 500mA / 4 x AA (1.5V) Battery
  • Weight - 770g
  • Working temperature - -10°/50°C


AP WIFIDSBP Install 400Kb pdf
