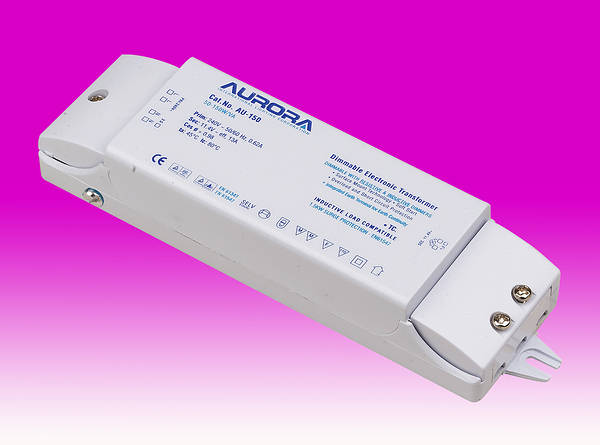

Electronic Lighting Transformer 50w - 150wAU-150SS

Loading …

Length (mm) 145 mm
Width (mm) 43 mm
Height (mm) 28 mm

Description

Electronic Lighting Transformer 50w - 150w

Single output transformer - suitable for use with low voltage track systems etc or where the full load is required from one output
Fully dimmable with resistive & inductive dimmers

Auto-reset thermal protection
1.0kV SURGE PROTECTION – EN 61547
Safety compliance – EN 61347
EMC compliance – EN 55015, EN 61000, EN 61547
Loop-in, loop-out primary wiring terminals
Integrated earth terminal for earth continuity
No junction box required
Secondary wiring terminals - 1 output. Max 4.0mm²
10 Year guarantee

Input Voltage (V) 220-240V 50/60Hz V
Output Voltage (V) 11.4 V
Output Frequency (KHz) 22 KHz
Nominal Power (VA) 50-150W/VA VA
Min Load Dimming (W) 75 W
Line Current (A) 0.620 A
Max Ambient Temp (deg. C) -20 to +45 deg. C
Max Case Temp (deg. C) 80 deg. C

Technical

Technical:

Information & Specification Cable Size Calculator

AU 150SS

Electronic Lighting Transformer 50w - 150w

EACH	3+
£11.85	£10.75

EACH	3+
£14.22	£12.90

Discontinued

Electronic Lighting Transformer 50w - 150w - Discontinued
