Electronic Lighting Transformer 50w - 210w - Discontinued

Please try Low Voltage Lighting - Transformers for alternative products.

Electronic Lighting Transformer 50w - 210wAU-210SS

Length (mm) 164 mm
Width (mm) 46 mm
Height (mm) 32 mm
Electronic Lighting Transformer 50w - 210w
Single output transformer - suitable for use with low voltage track systems etc or where the full load is required from one output
Fully dimmable with resistive & inductive dimmers
  • Auto-reset thermal protection
  • 1.0kV SURGE PROTECTION – EN 61547
  • Safety compliance – EN 61347
  • EMC compliance – EN 55015, EN 61000, EN 61547
  • Loop-in, loop-out primary wiring terminals
  • Integrated earth terminal for earth continuity
  • No junction box required
  • Secondary wiring terminals - 1 output. Max 4.0mm²
  • 10 Year guarantee
  • Input Voltage (V) 220-240V 50/60Hz V
  • Output Voltage (V) 11.4 V
  • Output Frequency (KHz) 22 KHz
  • Nominal Power (VA) 50-210W/VA VA
  • Min Load Dimming (W) 100 W
  • Line Current (A) 0.870 A
  • Max Ambient Temp (deg. C) -20 to +45 deg. C
  • Max Case Temp (deg. C) 80 deg. C

Technical:

Information & Specification Cable Size Calculator

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity

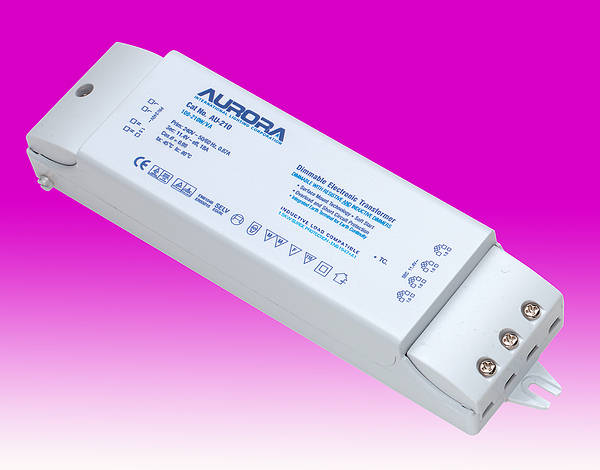

product photo

AU 210SS

Electronic Lighting Transformer 50w - 210w Clearance Stock

EA

£16.00

EA

£19.20

Discontinued
