Length: 103mm.
Width: 78mm.
Height: 78mm.
200° PIR 2kw Load 12m Detection - Black
Motion detector with detection area of 200°

Spherical head adjustable in two levels
Range adjustable by moving the sensor head.

The detection area can be altered by blinds, which are included.
The blinds can be clipped-on and moved to stop unwanted detection.

Adjustment light level and time setting by screwdriver and potentiometers
at the bottom of the sensor head infinitely variable
Easy installation with plug-in socket

Application examples:
monitoring for narrow premises, ways, gateways or at door sills

with Creep Zone
  • Wall mounting.
  • Degree of protection: IP44 / Class II / CE.
  • Housing of high-grade UV-resistant Polycarbonate.
  • Ambient temperature: -25°C to +50°C.
  • Time setting: approx. 4 sec. - 10 min.
  • Photo electric switch: 2 - 1000 Lux.
  • Power supply: 230 V~ ±10%.
  • Switching capacity: 2000w incandescent etc
    1000w on fluorescent, CFL's
  • Detection area: 200° + 360°.
  • Range: max. 12 m when walking across (tangential).


Instructions - 448kb .pdf
Product Code
Price (ex VAT)
Price (inc VAT)

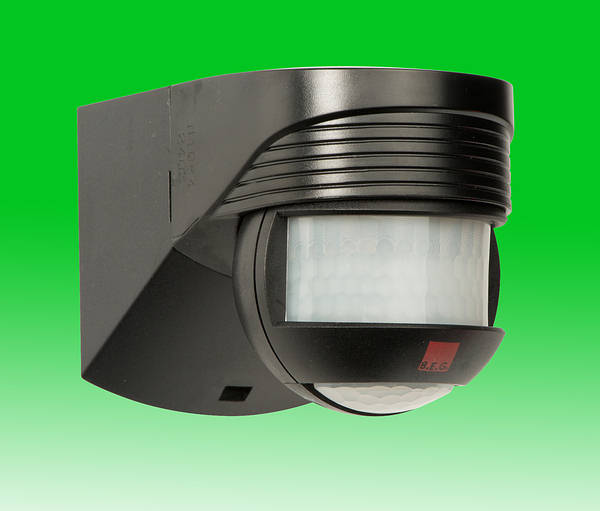

product photo
