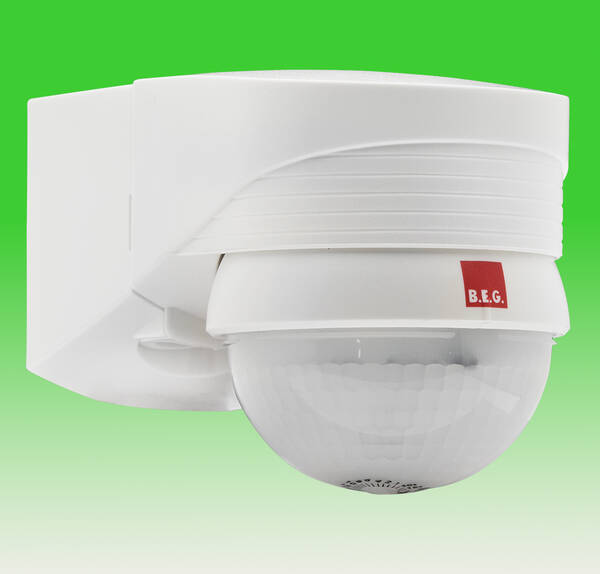

Luxomat - 280° PIR 2kW Load 16m Detection - White
Product Code: BE LC280W
4007529910083
91008
Loading …
110mm x 68mm x 78mm
Luxomat - LC Plus
280° PIR 2kW Load 16m Detection - White
280° PIR 2kW Load 16m Detection - White
Motion detector with downward detection for gapless monitoring.
Adjustable ball head.
Zero crossing switching.
Easy mounting thanks to plug-in base.
Detection area can be restricted with blinds.
Special socket for external corner mounting included.
Applications:
Outdoor areas (entrances/access roads), parking areas, underground car parks, high-bay warehouses
Adjustable ball head.
Zero crossing switching.
Easy mounting thanks to plug-in base.
Detection area can be restricted with blinds.
Special socket for external corner mounting included.
Applications:
Outdoor areas (entrances/access roads), parking areas, underground car parks, high-bay warehouses
- Power supply: 110-240V AC, 50/60Hz
- Switching capacity:
2000W incandescent
1000W CFL's
400W LED - Range:
max. 16m when walking across (tangential)
max. 9m when walking towards - Detection area: 280° horizontal
- Recommended mounting height: 2.5m
- Time settings: 15 sec. to 16 min. or pulse for bell function
- Switch-on threshold: 2 - 500 Lux
- IP54 rated
- Class II
- Impact strength: IK02
- UV resistant polycarbonate body
- Operating temperature: -25°C to 50°C
- 3 year warranty
110mm x 68mm x 78mm
Technical:LC Plus 280 Instructions - 1.85mb pdf BELC280W Datasheet - 1.5mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
BE LC280W
Luxomat - 280° PIR 2kW Load 16m Detection - White |
