Luxomat - 120° PIR 1kw Load 10m Detection - Black400752991071791071

120° PIR 1kw Load 10m Detection - Black
Mini-Motion detector with detection area of 120°
Spherical head adjustable in two levels
Range adjustable by moving the sensor head
The detection area can be altered by blinds, which are included.
The blinds can be clipped-on and moved to stop unwanted detection

Adjustment light level and time setting by screwdriver and potentiometers
at the bottom of the sensor head infinitely variable

Application examples:
monitoring for narrow premises, ways, gateways or at door sills
  • Wall mounting
  • Degree of protection: IP44 / Class II/ CE
  • Dimensions: L 80 x W 55 x H 70 mm
  • Housing UV- and shock-resistant Polycarbonate
  • Ambient temperature: -25°C to +50°C
  • Power supply: 230 V~ +6% /-10%
  • Detection area: 120°
  • Switching capacity: 1000w incandescent etc
    500w on fluorescent, CFL's
  • Range: max. 10 m when walking across (tangential)
  • Time settings: 4 sec. - 10 min.
  • Photo electric switch: 2 - 2500 Lux


Instructions - 500kb .pdf
Order Code
Price (ex VAT)
Price (inc VAT)

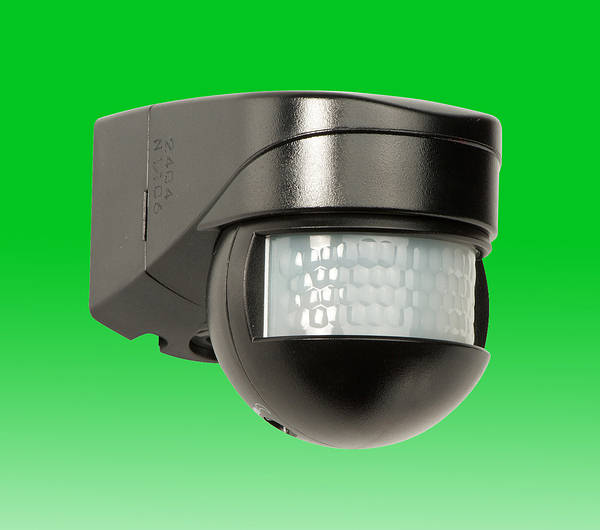

product photo


Luxomat - 120° PIR 1kw Load 10m Detection - Black
