Dimensions:
Length: 80mm.
Width: 55mm.
Height: 70mm.
Luxomat
180° PIR 1kw Load 10m Detection
Black
Mini-Motion detector with detection area of 180°.

Spherical head adjustable in two levels
Range adjustable by moving the sensor head.

The detection area can be altered by blinds, which are included.
The blinds can be clipped-on and moved to stop unwanted detection.

Adjustment light level and time setting by screwdriver and
potentiometers at the bottom of the sensor head infinitely variable.

Application examples:
Monitoring for narrow premises, ways, gateways or at door sills
  • Wall mounting.
  • Degree of protection: IP44 / Class II/ CE.
  • Housing UV- and shock-resistant. Polycarbonate.
  • Ambient temperature: -25°C to +50°C.
  • Time settings: 4 sec. - 10 min.
  • Photo electric switch: 2 - 2500 Lux.
  • Power supply: 230 V~ +6% /-10%
  • Detection area: 180°
  • Switching capacity: 1000w incandescent etc
    500w on fluorescent, CFL's
  • Range: max. 10 m when walking across (tangential).

Technical:

Instructions - 500kb .pdf

Product Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity

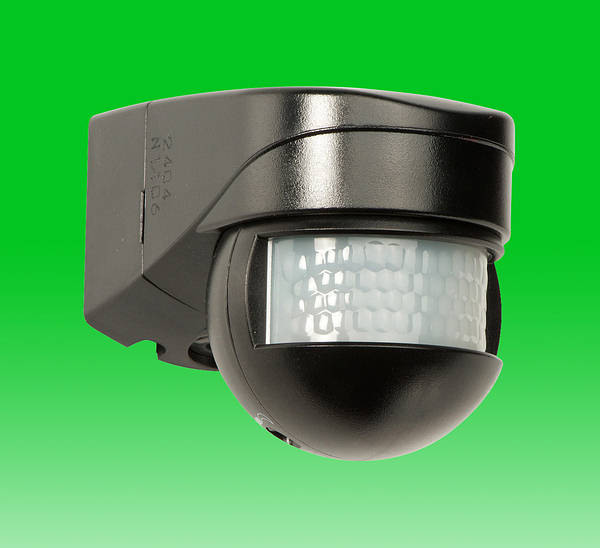

product photo
BE LCM180B

Luxomat - 180° PIR 1kw Load 10m Detection - Black
