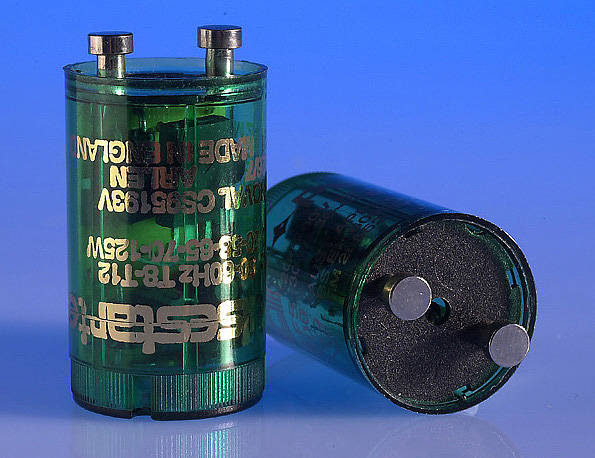

Universal Electronic Starter
for 4w - 125w Tubes
Universal Electronic Starter for fluorescent fittings
with tubes between 4watts and 125watts
Lamp types: Linear fluorescent lamps from 900mm 30W to 2400mm 125W,
- T8 (26mm) or T12 (38mm) diameter.
- (Excluding 2400mm 85W and 100W and 1500mm 115W 140W sun bed lamps)
- 18W to 36W compact fluorescent lamps with 4 pin 2G11 and G24 bases.
- 28W and 38W 4 pin 2D lamps with GR 10q bases.
Supply voltage: 200-260V ac RMS 50/60 HZ
- Operating temperature: -30°C + 75°C
- Preheat: 2.3 seconds nominal at 25°C ambient. Sinusoidal
- H>V> pulsing: Single pulse (1300V nominal) when striking healthy lamp in normal room ambience.
- Starter will supply additional pulses if lamp fails to conduct on first pulse (e.g. in extremes of temperature, or in worn lamp situations).
- Safety Shutdown: Within 3 seconds at 25°C ambient.
