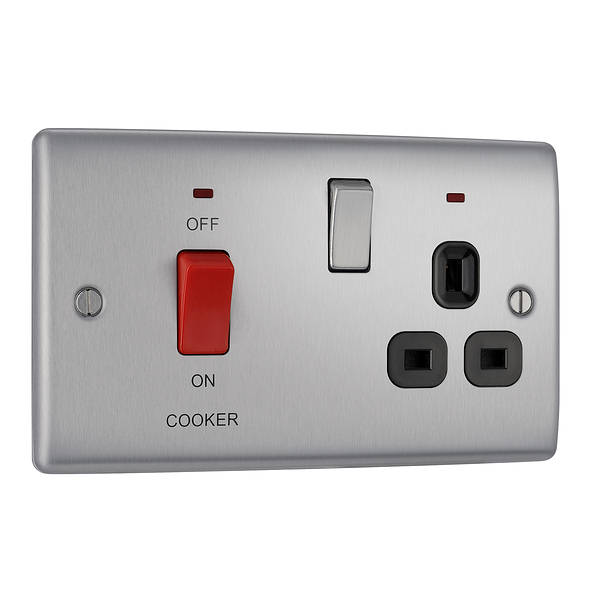

45 Amp Cooker Socket Control Unit c/w Neon - Nexus - Brushed Steel Black in
Product Code: BG NBS70B
5050765038966
NBS70B-01
Loading …

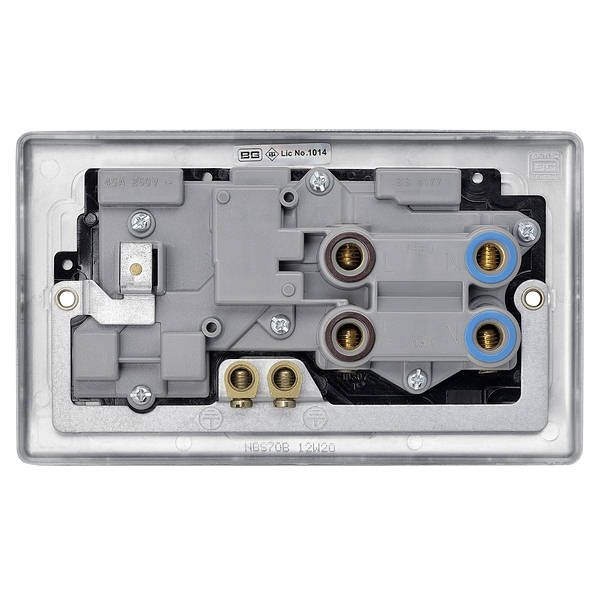

L & N terminal capacity:
4 x 4.0mm², 3 x 6.0mm² & 1 x 16.0mm².
E terminal capacity:
3 x 4.0mm², 2 x 6.0mm² & 1 x 16.0mm².
Minimum mounting box depth:
47mm.
BG Nexus
45 Amp Cooker Control Unit c/w Neon
Brushed Steel - Black insert
45 Amp Cooker Control Unit c/w Neon
Brushed Steel - Black insert
Modern Slim profile.
Lightly lacquered surface
to reduce fingerprint marks.
Angled in-line colour
coded captive terminals.
No visible plastic around switches.
Lightly lacquered surface
to reduce fingerprint marks.
Angled in-line colour
coded captive terminals.
No visible plastic around switches.
- Captive terminal screws.
- Minimum mounting box depth 47mm.
- Cooker Control Units manufactured to BS4177, Double Pole Switches to BS EN 60669-1.
L & N terminal capacity:
4 x 4.0mm², 3 x 6.0mm² & 1 x 16.0mm².
E terminal capacity:
3 x 4.0mm², 2 x 6.0mm² & 1 x 16.0mm².
Minimum mounting box depth:
47mm.
Technical:Nexus Metal Brochure - 7.6mb pdf |
|
