100 Amp 30mA 2 Pole RCD (Type A) - BG
Product Code: BG R10030A
5050765178044
CUR10030A-01
Loading …
BG

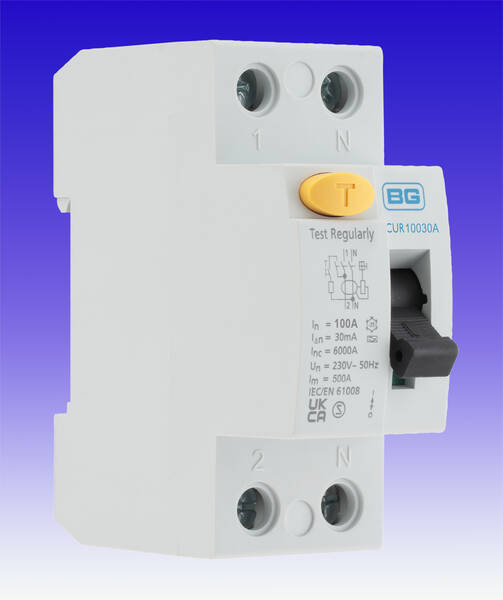

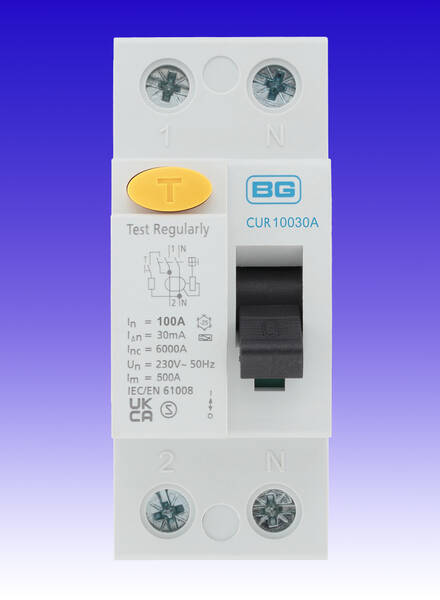

100 Amp 30mA 2 Pole RCD (Type A)
100 Amp 30mA 2 Pole RCD (Type A)
These two module, double pole RCDs will provide protection against
earth fault currents in residential and light commercial applications.
All RCDs have a positive contact indicator, i.e. when the green
window is visible this indicates that there is a 4mm contact gap.
earth fault currents in residential and light commercial applications.
All RCDs have a positive contact indicator, i.e. when the green
window is visible this indicates that there is a 4mm contact gap.
- Rated voltage: 230/400V AC, 50Hz
- Rated current: 100A
- Breaking capacity: 6000A
- RCD type: A
- Rated sensitivity: 30mA
- No. of poles: 2 (1+N)
- Terminal capacity: 35mm²
- Trip: Electro/Magnetic release
- Mounting on 35mm DIN rail
- Stylish modern profile, matches all other BG devices
- Positive contact status indicator
- Resistant to current surges, unwanted tripping excluded
- Lockable dolly switch
- Standards: EN/IEC 61008-1
Technical:Datasheet - 300kb pdf |
|
