9 Inch Wall Extractor Fan5020953556152COMTK230A

Loading …

Air Movement
668m3/hr, 185 litres per second.


Overall: 390mm x 390mm
Hole Size: 359mm x 366mm
Telescopic body
160mm Min wall depth
290mm Max wall depth

Power Consumption
Max 41 watts

Internal Grille Colour

9 Inch Wall Extractor Fan

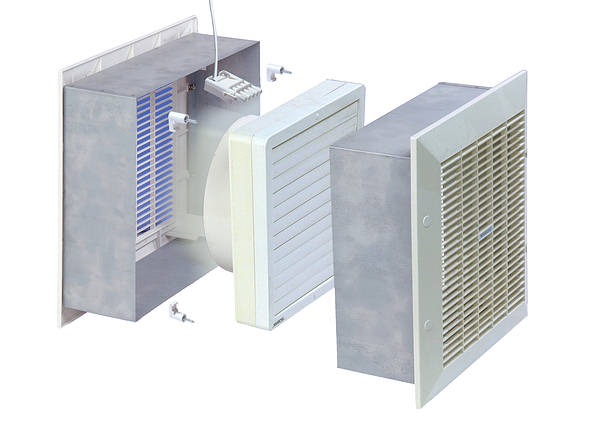

Manrose COMTK2300A Commercial Automatic WALL FAN KIT- internal shutter designed for flush fixing
  • The telescopic body of the COMTK230 built-in wall fan allows easy installation in solid or cavity walls from 160mm to 290mm thick.
  • The external and internal grilles have a 50mm flange for a smooth finish, which will blend unobtrusively into most backgrounds.
  • The telescopic wall liners with internal and external grilles have a 50mm flange and a plug in power connector making installation in one visit possible.
  • The internal and external grilles are a single tough moulding. This greatly reduces vandalism and increases building security whilst only 23mm in profile.
  • Incorporating the latest ventilation technology and stylish design,
  • High performance extractor fan
  • Designed for heavy-duty and extensive usage, the commercial units provide excellent ventilation in public and commercial sector applications such as hospitals, schools. railway stations, restaurants, public houses, offices, hotels and factories.
  • The units are all manufactured using high impact ABS thermoplastics for strength and durability, aesthetics and easy cleaning. ABS is an easily recyclable materials
  • Designed to comply with the 2006 Building Regulations on Ventilation and tested to comply with EN60 335-2-80:1997
  • The COMTK230 series can be wired via a 3 core cable for extract or intake only.
  • An optional BG FC2R two speed reversible fan controller enables the fan to intake or extract at High or Low speed.
  • An optional BG VSFC variable speed reversible fan controller for total speed control
  • Both controllers require a 5 core cable
  • Electrical
  • 220 - 240v - AC. 50Hz.
  • IP rated.
  • Double insulated.
  • Specifications
  • Overall: 390mm x 390mm
  • Hole Size: 359mm x 366mm
  • Maximum Pressure: 60 p.a
  • Extraction Rate:
    668m3/hr, 185 litres per second.
  • Fan Speed: 1300r.p.m
  • Sound Volume: 60.0 dB(A)
  • Max Temp: 40 degrees Celsius
  • 2 year No quibble guarantee
Previous Price: £199.35


Instructions Fan Size Calculator
