Waterproof Flex Connector - 24 Amp - IP684007685614627788/SKV16

24 Amp Waterproof Flexible Cable Connector
IP68
Water-proof cable connector.
Protected against the temporary immersion
( Tested at depths 15cm to 1Mtr - Duration of test 30 minutes )
Join your external cable runs with confidence !

Suitable for: Stationary laying of cables in cable ducts or suspended ceilings, stationary upper-plaster laying
  • Rated 24 Amp
  • Max cable dia: 9 - 14mm
  • Max 2.5mm cable
  • Up to 5 core cable
  • Rated IP68
  • Length = 134mm
  • Diameter = 27mm
  • Protection class to EN 60 529: IP 68 5 bar (30 min)
  • Flame protection: Glow wire test 750°C acc. to EN 60695-2-11 (terminal block 960°C)
  • Temperature range: -25°C to 60°C, intermittent to approx. 80°C
  • Material: Polystyrene, flame-retardant;
    Terminal block polyamide, reinforced glass fibre
  • Equipment: Jointing sleeve with terminal block and SKV cable glands

Technical:

IP Rating Chart

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity

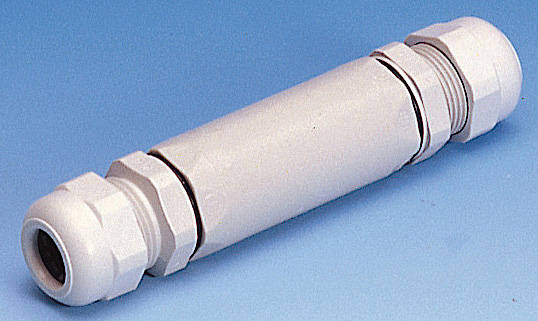

product photo

BR H65Z

Waterproof Flex Connector - 24 Amp - IP68

EA

EA 3+

£9.70

£9.10

EA

EA 3+

£11.64

£10.92
