Contactum - TP & N Distribution Board
Product Code: CM D08BN
5055556224177
DO8BN
Loading …
Dimensions
Height: - 620mm
Width: - 450mm
Depth: - 150mm
Weight: - 16Kg
Contactum

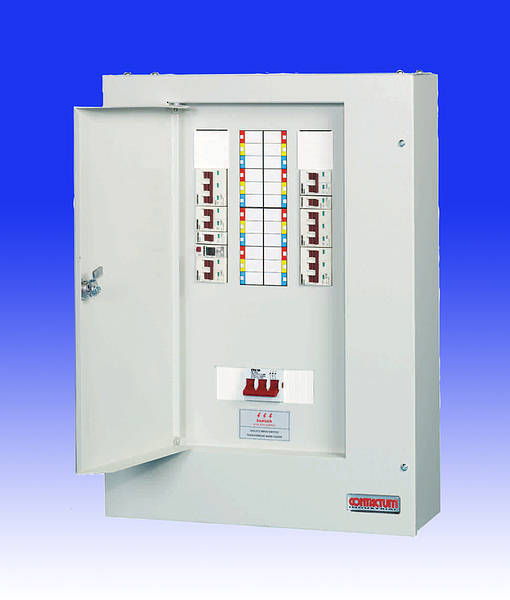

8 Way TP&N Distribution board
Incomer ( not included )
8 Way TP&N Distribution board
Incomer ( not included )
They are engineered and manufactured to exceed the latest standards and the numerous features make this range of boards extremely user and installer friendly.
Durable grey finish gives an aesthetic appeal and assist wiring in dimly lit areas.
The enclosure comes complete with busbars, removable sub -plate, covers, neutral & earth terminals and labelling.
The door is reversible to allow left or right hand opening for access and with a lockable option.
The board offers generous wiring space beneath the busbar assembly for fitting the incoming device with standard size cables there is sufficient space for cabling.
As with all Contactum products the circuit protection devices are of the very highest standard - the MCBs are rated at 10KA and designed to BS EN 608989, RCCBs to BS EN 61008 and isolators to BS EN 60947-3 - and all have positive contact indication
Incomer kit required
Click for MCB's, RCBO's, RCD's and Contactors etc
Durable grey finish gives an aesthetic appeal and assist wiring in dimly lit areas.
The enclosure comes complete with busbars, removable sub -plate, covers, neutral & earth terminals and labelling.
The door is reversible to allow left or right hand opening for access and with a lockable option.
The board offers generous wiring space beneath the busbar assembly for fitting the incoming device with standard size cables there is sufficient space for cabling.
As with all Contactum products the circuit protection devices are of the very highest standard - the MCBs are rated at 10KA and designed to BS EN 608989, RCCBs to BS EN 61008 and isolators to BS EN 60947-3 - and all have positive contact indication
Click for MCB's, RCBO's, RCD's and Contactors etc
- Generous wiring space
- Single row of terminals for ease of wiring
- Advanced one piece internal busbar design
- All earth terminals on the left, all neutrals on the right
- Reversible door with lockable option
- IP41 protection
- Cable space beneath busbar assembly
- Solid interconnections
- Facility for double earth and neutral terminals
- All terminal bars can accept 25mm2 cable
- Removable neutral link to facilitate testing
- Separate covers for neutral and earth terminals and phase interconnections for added safety
- Detachable pan assembly
Dimensions
Height: - 620mm
Width: - 450mm
Depth: - 150mm
Weight: - 16Kg
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
CM D08BN
8 Way TP&N Distribution Board 200A Max Incomer |
