25A 4 Pole DC Isolator - IP66
Product Code: CM DX025DC
5056009597411
DX025DC
Loading …

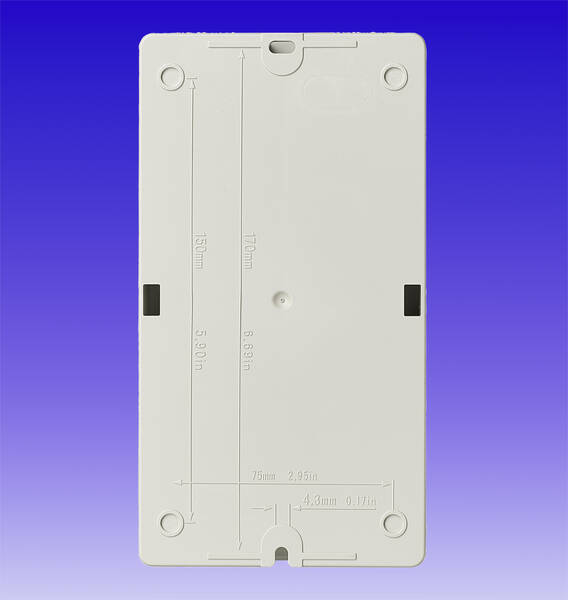

Height: 180mm
Width: 98mm
Depth inc. switch: 116mm
Contactum

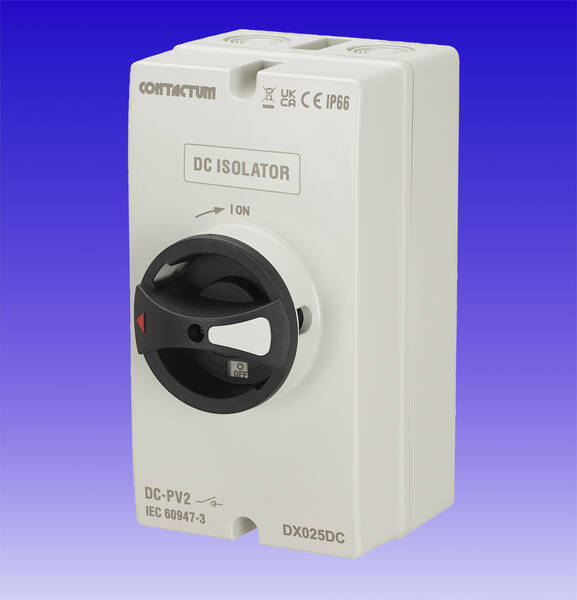

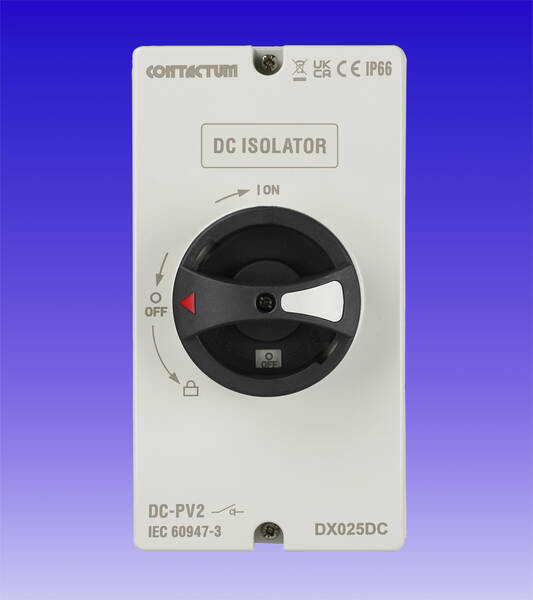

25A 4 Pole DC Isolator - IP66
25A 4 Pole DC Isolator - IP66
In photovoltaic applications, DC isolators are used to manually disconnect solar panels
for maintenance, installation or repair.
The panel needs to be isolated from the AC side, so a manually operated isolation switch
is placed between the panel and the inverter input. This type of switch is called a PV DC isolator
because it provides DC isolation between the photovoltaic panel and the rest of the system.
for maintenance, installation or repair.
The panel needs to be isolated from the AC side, so a manually operated isolation switch
is placed between the panel and the inverter input. This type of switch is called a PV DC isolator
because it provides DC isolation between the photovoltaic panel and the rest of the system.
- Function: isolation, control
- Number of poles: 4
- Rated voltage (Ue): 1200V DC
- Rated current (In): 25A
- Rated insulation voltage (Ui): 1200V DC
- Rated impulse voltage: (Uimp): 8kV
- Mechanical life: 20000 operations
- Screw torque (Nm): 1.2Nm

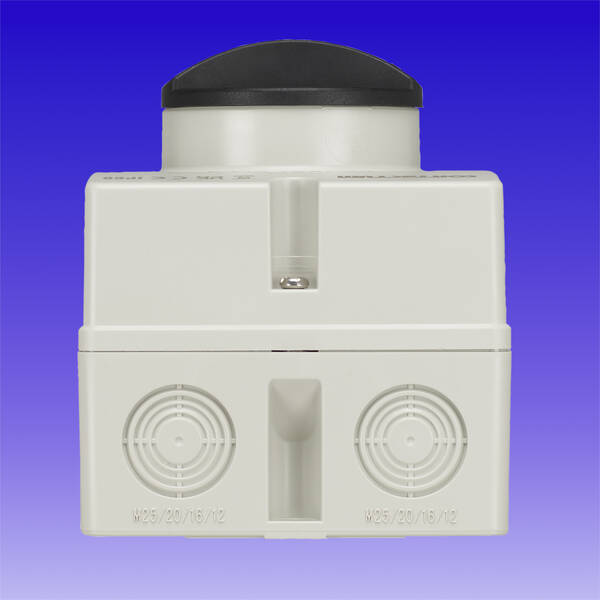

- Cable size (mm²): 4-16mm²
- Protection level: IP66
- Ambient operating temperature: -25°C to 85°C
- Standards: IEC60947-3, DC-21B
Height: 180mm
Width: 98mm
Depth inc. switch: 116mm
Technical:DC Isolators Datasheet - 660kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
CM DX025DC
25A 4 Pole DC Isolator - IP66 |
