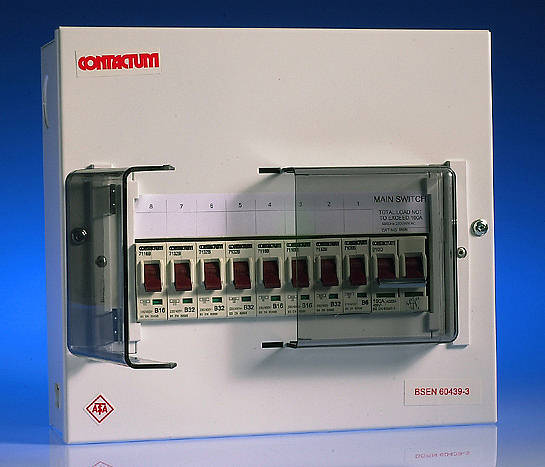

8 Way Metal Consumer Unit - 100 Amp Switch
Product Code: CM M8N
0
CM M8N
Loading …
Supplied less MCB's
Dimensions:
Height: 240mm
Width: 265mm
Depth: 114mm (inc. window)
Knockouts:
Top & Bottom:
1 X 32mm, 1 X 25mm,
4 X 20mm.
Dimensions:
Height: 240mm
Width: 265mm
Depth: 114mm (inc. window)
Knockouts:
Top & Bottom:
1 X 32mm, 1 X 25mm,
4 X 20mm.
8 Way Metalclad Board with 100 Amp Switch
Double pole isolator controlling eight outgoing ways.
This unit makes installation easy with extra generous space between the terminal bars and MCBs.
- Isolator: BS EN 60947-3 category AC22 terminal capacity 50mm2
- MCBs (bought separately) have a terminal capacity of 25mm2 and the terminal bars 16mm2.
- MCBs are secured by a full din rail and the MCBs are removable from the run of busbar.
Supplied less MCB's
Dimensions:
Height: 240mm
Width: 265mm
Depth: 114mm (inc. window)
Knockouts:
Top & Bottom:
1 X 32mm, 1 X 25mm,
4 X 20mm.
Dimensions:
Height: 240mm
Width: 265mm
Depth: 114mm (inc. window)
Knockouts:
Top & Bottom:
1 X 32mm, 1 X 25mm,
4 X 20mm.
Technical:Instructions - 198kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
CM M8N
8 Way Metal Consumer Unit - 100 Amp Switch |
Contactum MCB's ( Type B ) - 10KA
Loading …
Contactum
SP MCB's ( Type B ) - 10KA
SP MCB's ( Type B ) - 10KA
Contactum MCB's detect overcurrents due to both overload and fault currents.
The MCB will operate and interrupt the supply to prevent damage to the installation.
|
