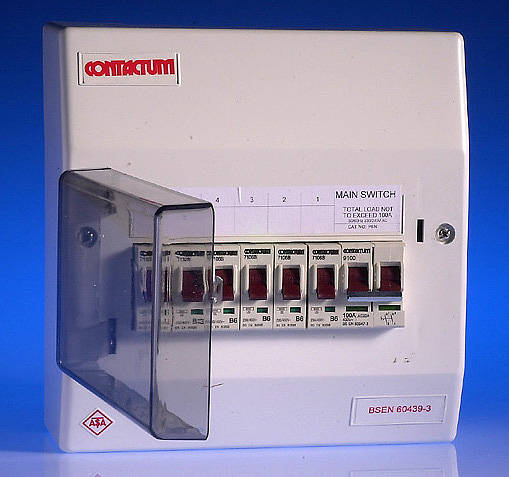

8 Way Insulated Consumer Unit - 100 Amp Switch0CM P8N
Loading …
Supplied less MCB's
Dimensions:
Height: 232mm
Width: 261mm
Depth: 116mm (inc. window)
Dimensions:
Height: 232mm
Width: 261mm
Depth: 116mm (inc. window)
8 Way Insulated Board with 100 Amp Switch
This unit makes installation easy with extra generous space between the terminal bars and MCBs.
MCBs are secured by a full din rail and the MCBs are removable from the run of busbar.
- MCBs (bought separately) have a terminal capacity of 25mm2 and the terminal bars 16mm2.
- Isolator: BS EN 60947-3 category AC22 terminal capacity 50mm2
- The enclosure is British made from a fire resistant material and the assembled unit is certified by ASTA to the rigorous BS 60439-3 standard.
Technical:Instructions - 198kb pdf |
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |
|---|---|---|---|---|---|
|
CM P8N | 8 Way Insulated Consumer Unit - 100 Amp Switch |
Contactum MCB's ( Type B ) - 10KA
Loading …
Contactum
SP MCB's ( Type B ) - 10KA
SP MCB's ( Type B ) - 10KA
Contactum MCB's detect overcurrents due to both overload and fault currents.
The MCB will operate and interrupt the supply to prevent damage to the installation.
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CP B1006B | 6 Amp SP Type B MCB - Contactum - 10KA |
|
|
|||||||||
|
CP B1010B | 10 Amp SP Type B MCB - Contactum - 10KA |
|
|
|||||||||
|
CP B1016B | 16 Amp SP Type B MCB - Contactum - 10KA |
|
|
|||||||||
|
CP B1020B | 20 Amp SP Type B MCB - Contactum - 10KA |
|
|
|||||||||
|
CP B1025B | 25 Amp SP Type B MCB - Contactum - 10KA |
|
|
|||||||||
|
CP B1032B | 32 Amp SP Type B MCB - Contactum - 10KA |
|
|
|||||||||
|
CP B1040B | 40 Amp SP Type B MCB - Contactum - 10KA |
|
|
|||||||||
|
CP B1050B | 50 Amp SP Type B MCB - Contactum - 10KA |
|
|
|||||||||
|
CP B1063B | 63 Amp SP Type B MCB - Contactum - 10KA |
|
|
|||||||||
 |
CP BBL | 1 Module Din Rail Mounted Blank |
|
|
Blanks
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |
|---|---|---|---|---|---|
 |
CM 9000 | 1 Strip of 6 Blanks for Contactum Consumer Units - New Code CP A02 |
