Audio Door Entry & Proximity Access System
CSP series combined audio door entry with proximity
It is common for a door entry telephone system to be combined
with a proximity access system for the benefit of residents, tenants or staff.

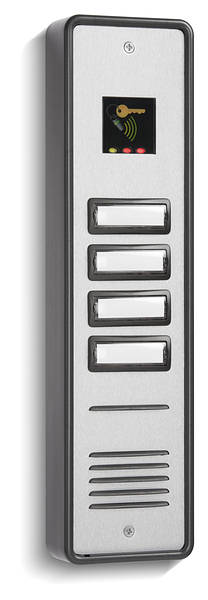

These panels offer a contemporary and attractive style.
They are manufactured from 3 mm brushed anodised aluminium with an integral grill protecting the secured speech unit.
A single push-button with integral nameplate is provided for each station.
The nameplate can easily be removed from the front for replacement or amendment.
As standard, the panels are supplied with a low-profile surface-mounting box moulded in metallic slate
and the panel is fixed to it with vandal resistant screws (a 1/4 hex screwdriver bit is supplied with each panel.
Alternatively, the panels can be supplied with a flush-fitting zintec back box and vandal resistant bolts.
Panels should be sited in a position that is protected from adverse weather conditions.
The largest available panel has 7 buttons and thereafter the vandal resistant style becomes standard.
These systems are conveniently packaged with all necessary components to complete an installation including a starter pack of keyfobs.
- Additional packs of keyfobs can be purchased to the required number - 10,000 keyfob capacity.
- A CSP series system comprises of;
Standard wall mounting telephones
Aluminium door entry panel with compact proximity reader
(Panels above 7 buttons are vandal resistant stainless steel)
12V DC power supply
Surface lock release
Starter keyfob pack (includes an enrolment card, a fail-open card and 3 user keyfobs & shadow cards)
Full installation and programming instructions
The proximity system is the ideal access control solution in situations where no central programming or reporting is required. Validating and voiding of users is achieved with a unique shadow card system, and all system programming is performed with the easy to use function cards.
- All packaged systems include a starter pack of key-fobs and additional key-fobs can be purchased to the required number.
- The lock output is fail-secure as a default with a timed lock output set at 5 seconds. Alternatively, the fail-open card (included in the starter key-fob pack) can be used to change the lock output to operate a fail-safe lock mechanism.
