Time Lag Switch 2 wire 1-10 minutes0TLCTLSW10 No Cap

Loading …

Supplied without CAPLOAD
Time Lag Switch 1-10 minutes
Direct replacements for existing wall switches.
No neutral wire is needed.
Hence they are very quick and inexpensive to install.

These electronic Time lag switches are designed to switch lights, or other
loads, on for a limited time only, and to switch off automatically after a time lag has elapsed.

They bring energy saving benefits and are ideal for use in
stairwells, store rooms and in many other applications.

These time lag switches can be used for multi-way switching, using the slave range
  • Adjustable time lag
    from 1 to 10 minutes. (factory preset to approx. 5 minutes).
  • Maximum load: 6 amps (1500W) of any type of load (including fluorescent lights and fans)
  • Minimum load: 40W,
    or for wiring in parallel 40W per time lag switch in the circuit.
  • No neutral wire needed
  • Load capacitors (DN CAPLOAD not included) can be supplied to augment small loads (low energy lamps)
  • Detailed Spec below


Installation Notes Detailed Spec
Product Code
Price (ex VAT)
Price (inc VAT)

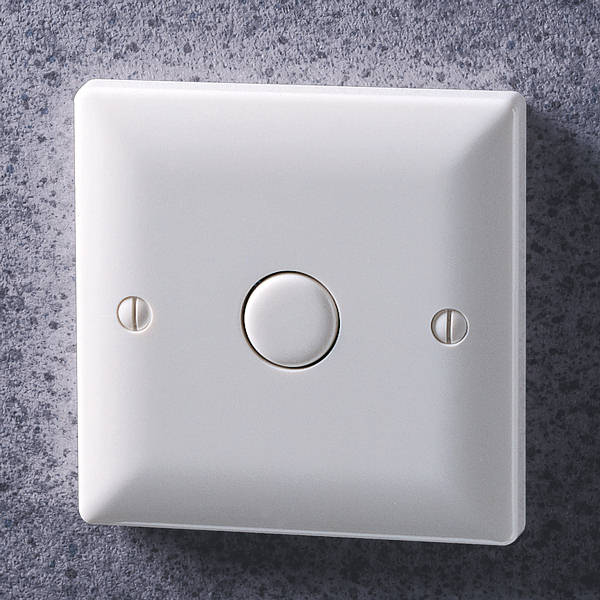

product photo

Time Lag Switch 2 wire 1-10 minutes
