Dimplex Quantum Storage Heater - QM0705011139046154QM070

Loading …

Height: 730mm
Width: 703mm
Depth: 185mm
Installed Weight: 83kg

Input: 1560w

Saving you money

Cost effective

Description

Dimplex

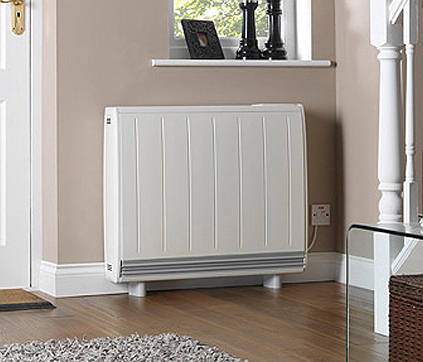

Quantum Room Heater 700w

Quantum is up to 25% cheaper to run
and uses 20% less energy than comparable static storage heaters.

See Quantum Range Brochure for Heater Sizing Guide

Uses off-peak tariffs for low running costs - on a room-by-room basis it is expected that 90% of the heating requirement will be met by off-peak energy
Automatically adjusts to the user's needs through its dynamic storage capacity
Precisely matches the user's chosen heating profile
Easy-to-use, electronic user interface with LCD display complete with:
- room temperature setting
- seven-day programmer
- installer settings
Designed to operate on any off-peak tariff
Fan-assisted output for extremely rapid heat-up time
Soft-start, ultra quiet fan for minimum intrusion
Boost element ensures heat is always available even with unexpected demand
Attractive, state-of-the-art design
Compact design (no deeper than a double wet radiator) with flexible mounting options and adjustable feet positions
Covers previous ‘fixing marks' of most comparably sized traditional storage heaters
Optional communications link for demand side management to help stabilise the electricity supply network
Approvals - BEAB / EN60335 / EMC / CE.
Warranty - 2 years + additional 8 years (on registration)

Controls
Electronic user interface with LCD display offering room temperature setting, seven day programmer, installer settings, three pre-set timer profiles, holiday setting and more.
Charge Controller
Fully automatic charge controller incorporates self learning algorithms to optimise daily energy storage, using multiple sensors to automatically adjust the charge taken based on recent energy use patterns and future programmed requirements.
Thermostat
Electronic - accurate to +/- 0.3°C.
Safety Devices
Electromechanical limit thermostat (self resetting).
Electromechanical cut-out (manual reset).
Electromechanical over temperature thermostat for fan.
Electromechanical over temperature limit thermostat for fan.
Fan
Low rev/low noise heat circulation fan with variable speed and soft start.
Storage Devices
High density bonded magnetite energy cells.
Thermal Insulation
Front, rear top and ends - Microporous silica.
Base - calcium silicate slab.
Colour / Finish - White.
Battery Backup
3.3v coin cell battery to backup real time clock. Battery life > 5 years.
Supply
230-240V / 50Hz. Off-peak + 24 hour supply required.
