3 Hour NM Emergency Fitting

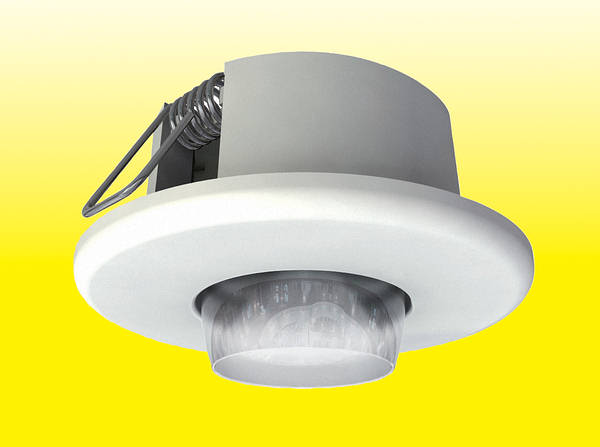

Unique fully recessed LED emergency luminaire.
At just 50mm in diameter Dyode is one of the smallest recessed LED based emergency
luminaries currently available and the superbly designed refractor lens assembly which
is incorporated into a high quality injection moulded housing offering an IP20 protection rating.
By utilizing a specially developed LED driver and advanced thermal engineering techniques
to dramatically reduce the LED operating temperature the light output level from the LED is
guaranteed throughout the full emergency duration, ensuring the life of the LED exceeds 50,000 hours.
Two versions of the advanced lens designs are available.
1 - The traditional cone distribution pattern for use in open areas or for specific task lighting.
2 - One specifically for corridor lighting (CR) offers an elongated distribution pattern
to efficiently illuminate the centre line of escape route corridors
and extends the spacing distance between luminaries.
The control circuitry is housed in a robust metal assembly and along with the
Ni-MH battery pack is contained within a high quality flexible silicone sleeve which
can easily pass through the 40mm cut out required for Dyode when mounted independently in a ceiling void.
- 40mm cut out
- Refractor lens
- A specially developed LED Driver
- Life of LED exceeds 50,000 hours
- NI-MH battery pack
- 1.6w LED
