Emergency Exit Box Light 8w Maintained - Discontinued

Please try Exit Signs - Maintained for alternative products.

Emergency Exit Box Light 8w Maintained0EXM3/F8

Loading …

Width: - 430mm
Height: - 200mm
Depth: - 60mm
Exit Box 8w 3 Hour Maintained
An emergency exit sign gives a clear indication of exits
and routes during power failure.

Offices, Shops, Hotels.

Supplied with legend as shown
  • Modes of operation: - Maintained
  • Input Voltage: - 230V +/- 10% 50/60 Hz
  • Battery Charger: - Constant current nominal charge current 250 mA
  • Inverter: - Solid state, high frequency (30-50 kHz)
  • Lamp(s): - T5 8W Fluorescent
  • Charging Monitor: - High Intensity Red LED
  • Recharge Period: - 24 Hours for full recharge
    (14 Hrs for 1 hour duration)
  • Degree of Protection: - IP23
  • Overall Dimensions (mm): - 430x200x60
  • Battery: - Rechargeable high temp NiCad 2.4V 4Ah
  • Power Consumption: - 20VA
  • Cable Entry: - End 20mm Conduit. Rear
    BESA Terminal Box Mounting
  • Emergency Duration: - 3 Hours
  • Weight: - 2.6 kg
  • Standards: - EN 60598.2.22
    (BSEN4533.102.22); EN 55015
  • Environment: - 0°C to +30°C Temperature Range: Up to 80% Relative Humidity
  • Housing Colours: - Standard White
  • Warranty: - 3 Years

Technical:

Guides to Emergency Lighting IP Rating Chart

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity

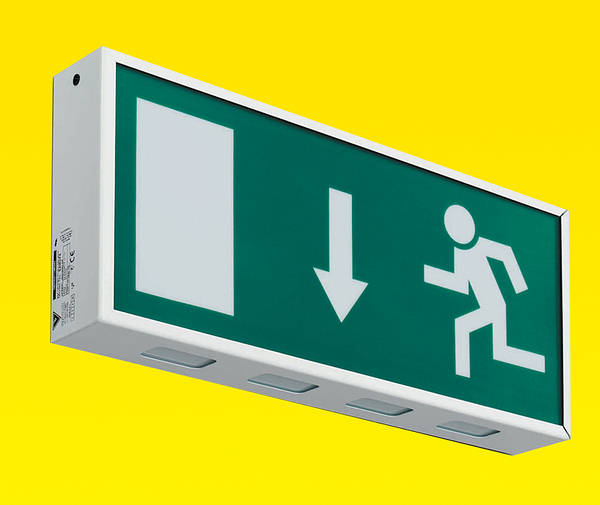

product photo

EM EBM3

Emergency Exit Box Light 8w Maintained Special Offer

Discontinued
