Focal Emergency Exit Sign - Maintained0FLM3/F8
Loading …
Supplied Less Legend
Width: - 600mm
Height: - 225mm
Depth: - 60mm

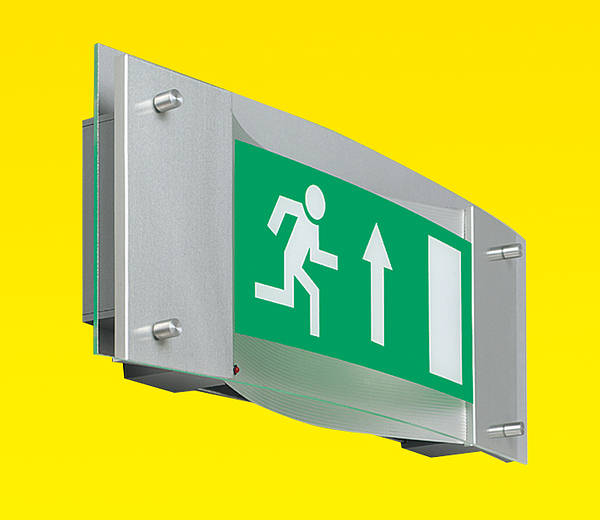

Focal Emergency Exit Sign
3 Hour - Maintained
3 Hour - Maintained
and architectural practice,
Focal is a sleek departure from the norm in Emergency Lighting signage.
Focal is ideal for those installations where there is an emphasis on clear signage and aesthetic appearance.
- Modes of operation: - Maintained
- Input Voltage: - 230V +/- 10% 50/60 Hz
- Battery Charger: - Constant current nominal charge current 250 mA
- Inverter: - Solid state, high frequency (30-50 kHz)
- Lamp(s): - T5 8W Fluorescent
- Charging Monitor: - High Intensity Red LED
- Recharge Period: - 24 Hours for full recharge
(14 Hrs for 1 hour duration) - Degree of Protection: - IP23
- Overall Dimensions (mm): - 600x225x60
- Battery: - Rechargeable high temp NiCad 2.4V 4Ah
- Power Consumption: - 20VA
- Cable Entry: - End 20mm Conduit. Rear
BESA Terminal Box Mounting - Emergency Duration: - 3 Hours
- Weight: - 2.6 kg
- Standards: - EN 60598.2.22
- Environment: - 0°C to +30°C Temperature Range: Up to 80% Relative Humidity
- Housing Colours: - Brushed Aluminium
- Warranty: - 3 Years
- Supplied Less Legend
| Previous Price - £153.00 |
Technical:Guides to Emergency Lighting IP Rating Chart |
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |
|---|---|---|---|---|---|
|
EM FLM3 | Focal Emergency Exit Sign - Maintained --- Price Cut --- |
Accessories and Replacement Batteries
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EM B164/24 | 2 Cell 4Ah NiCad Stick Replacement Battery |
|
|
|||||||||
 |
EM FL1 | Focal Legend Left | |||||||||||
 |
EM FL2 | Focal Legend Down | |||||||||||
 |
EM FL3 | Focal Legend Right | |||||||||||
 |
EM FL4 | Focal Legend Up |
