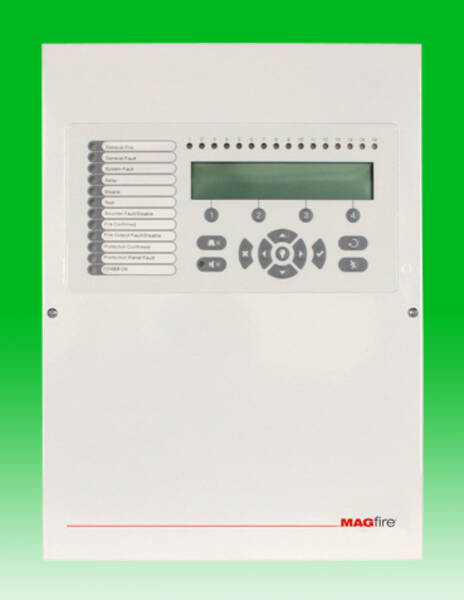

MAGPro Addressable 16 Zone Fire Panel
Product Code: ES MP16
5060224104842
MAGPRO16
Loading …
Height: 320mm.
Height: 220mm.
Depth: 80mm.
Weight: 3.60kg.
MAGPro
Addressable 16 Zone Fire Panel
Addressable 16 Zone Fire Panel
Expandable to 2 loops using MAGPRO16-L250.
A maximum of 250 devices can be connected to each loop.
- 16 Zones.
- Maximum 250 devices per loop.
- Memory Log: 10,000 events.
- Networkable up to 32 Panels.
- 4 x 40 character LCD display.
- Micro USB port for PC connection.
- Loop & battery calculator software included.
- Certified to EN54–2/4.
- CPR Compliant.
-
Inputs
Loops: 1 expandable to 2
Devices Per Loop: 250
Protocol: MAGPRO - Power Mains Fail Consumption:
125mA DC – 1 Loop
213mA DC – 2 LOOP
Mains Supply: 230V AC + - 10%
Max Loop Current: 500mA DC
Backup: 1x12V 17Ah - Outputs
2 Sounders: 24v DC @ 500mA
4 Programmable Relays: 24v DC @ 100mA
3 Monitored Outputs: 24v DC @ 100mA
3 Monitored Inputs: Volt free contacts - Environment
Working Temperature: -5C TO +40C
Storage: -10C TO 60C
Humidity: 0 - 95%.
Height: 320mm.
Height: 220mm.
Depth: 80mm.
Weight: 3.60kg.
Technical:ESMP16 Datasheet ESMP16 Instructions Addresable v Conventional Fire Alarm Systems MAGPro Catalogue |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
ES MP16
MAGPro Addressable 16 Zone Fire Panel |
