1 Gang 47mm Fire & Acoustic Metal Dry Lining Plasterboard Box5055287011688WA4147
Loading …

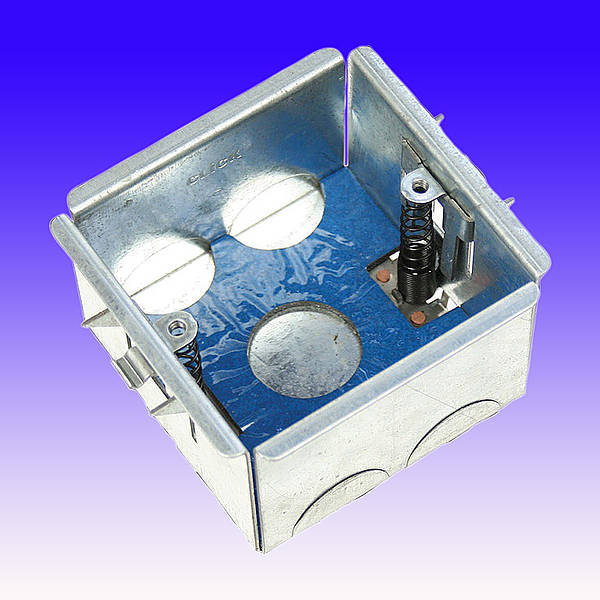

1 Gang 47mm Fire & Acoustic
Metal Dry Lining Back Box
Metal Dry Lining Back Box
Fire & Acoustic Rated
Metal Dry Lining Back Boxes
Fire tested up to 90 minutes with the capability of the boxes being mounted back to back.
With potential fire temperatures in excess of 1000° C, the use of metal
in the FlameGuard design helps maintain its position within the wall until
the wall loses its structural integrity.
Metal Dry Lining Back Boxes
Fire tested up to 90 minutes with the capability of the boxes being mounted back to back.
With potential fire temperatures in excess of 1000° C, the use of metal
in the FlameGuard design helps maintain its position within the wall until
the wall loses its structural integrity.
-
FlameGuard back boxes have been tested and conform to both fire and acoustic BS EN standards
Fire: BS EN 1363-1: 1999 & BS EN 1364-1: 1999
Acoustic: BS EN ISO 140-3: 1995 & BS EN ISO 717-1: 1997 - Complies with Building Regulations
Part B (Fire Safety)
Part E (Resistance to the Passage of Sound)
- No additional components to purchase or install.
- Simple and quick to install saving time and money.
- Unique spring loaded lugs.
- Substantial amount of cable entries.
- Earth terminal fitted.
Technical:Information - 1.8Mb pdf FireGuard Test Data 2 - 2.7Mb PDF FAQ Fire Rated Boxes/Inserts - 17kb pdf |
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FB 4147 | 1 Gang 47mm Fire & Acoustic Metal Dry Lining Plasterboard Box |
|
|
Accessories
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
WS 18POZ | 1 x 8 Cross Slot Countersunk Zinc Plated Screws |
|
|
|||||||||
|
WS 128POZ | 1½ x 8 Cross Slot Countersunk Zinc Plated Screws |
|
|
|||||||||
 |
FX RP | Plastic Wall plugs Red for 6 - 10 Screws |
|
|
|||||||||
 |
WD 328PW | DeWalt Wall-Dog 32mm x 8mm Pan Head - White |
|
|
|||||||||
 |
WD 328PC | DeWalt Wall-Dog 32mm x 8mm Pan Head - Chrome |
|
|
